• Model NO.：LTR100
• Lift height：3000~5000mm
• Condition：New
• Min. Ground Clearance：360mm
• Wheel Base：2630mm
• Engine：Xichai
• Output Power：92kw
• Color：Customized
• Tires：17.5-25
• Voltage：24V
• Loading Center：500mm
• Certificate：Ce,ISO
• Transport Package：Nude Packing, Fixed in Container
• Specification：8000kg
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：500units,Year

Rated Power10000 KgRated center distance500 mm Running speed(no load)21 Km/h Lifting speed(full load)490 Km/hMax.grade ability20%Deadweight8000 KgTiresFront wheel17.5-25Rear wheel17.5-25TreadFront wheel1800 mmRear wheel1800 mmWheelbase2630 mmMin.ground clearance360 mmBatteryVoltage24VEngineModelCA110/125G5Place of originXichaiOutput power92 KwRated torque432 NmNumber of cylinders6Cylinder size X trip90 X 100 mmDisplancement2540 ccFuel tank capacity65 LTransmissionGears(front and rear)3/2Work pressure16 Mpa

Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable:Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:Middle muffler, more environmental.
6.High technology:Maintenance free radiators adopt Germany technology.

Packaging&Shipping

After sales service

LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

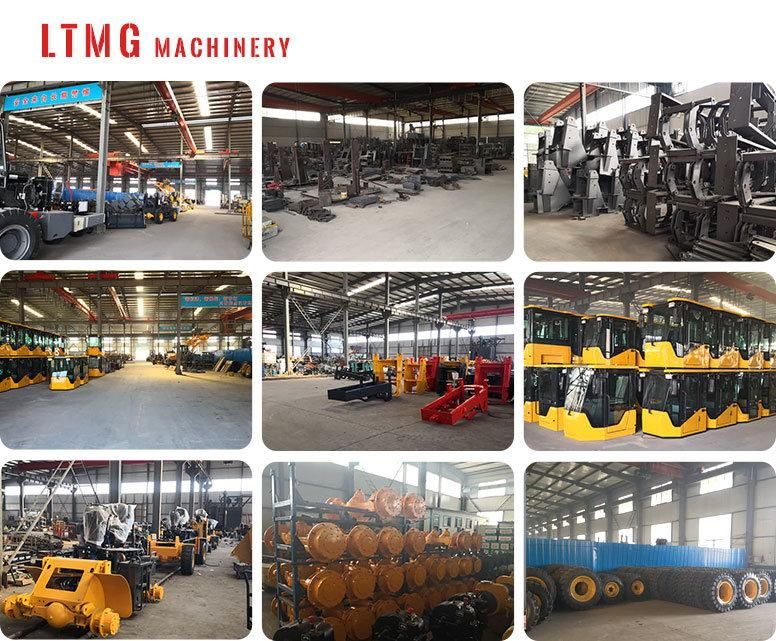

Factory Overview

Exhibition Show


FAQ

1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
