2000kg 2500kg 3000kg Manual Hand Pallet Truck with Plastic /Nylon/PU Wheels
Qingdao Zongjin Engineering Machinery Co., Ltd.- After-sales Service：Video Technical Support
- Warranty：One Year
- Cab Location：Not Adjustable
- Type：Pallet Jack
- Power：Manual
- Load Capacity：1T - 5T
Base Info
- Model NO.：BF
- Fuel：Hydraulic
- Load center：500mm
- Lift height：>5000mm
- Condition：New
- Name：Manual Hand Pallet Truck
- Capacity：2000 Kg
- Lowered Fork Height：80mm
- Steering Wheel：Dia 180*50mm
- Fork Wheel- Trandem：Dia 80*70mm
- Max.Lifting Height：200mm
- Overall Length：1520,1590mm
- Fork Length：1150,1220mm
- Width Overall Forks：520,550,680mm
- Ground Clearance,Center of Wheelbase：22 mm
- Aisle Width for 1000X1200 Crossways：1720,1790mm
- Aisle Width for 800X1200 Crossways：1770,1890mm
- Turning Radius：1265,1335 mm
- Service Weight：75-84 Kg
- Transport Package：6 Sets in One Package
- Specification：2.2x0.54x0.7
- Trademark：MOVMES
- Origin：China, Ningbo
- HS Code：8427109000
- Production Capacity：100 Sets,Month
Description
Advantage:

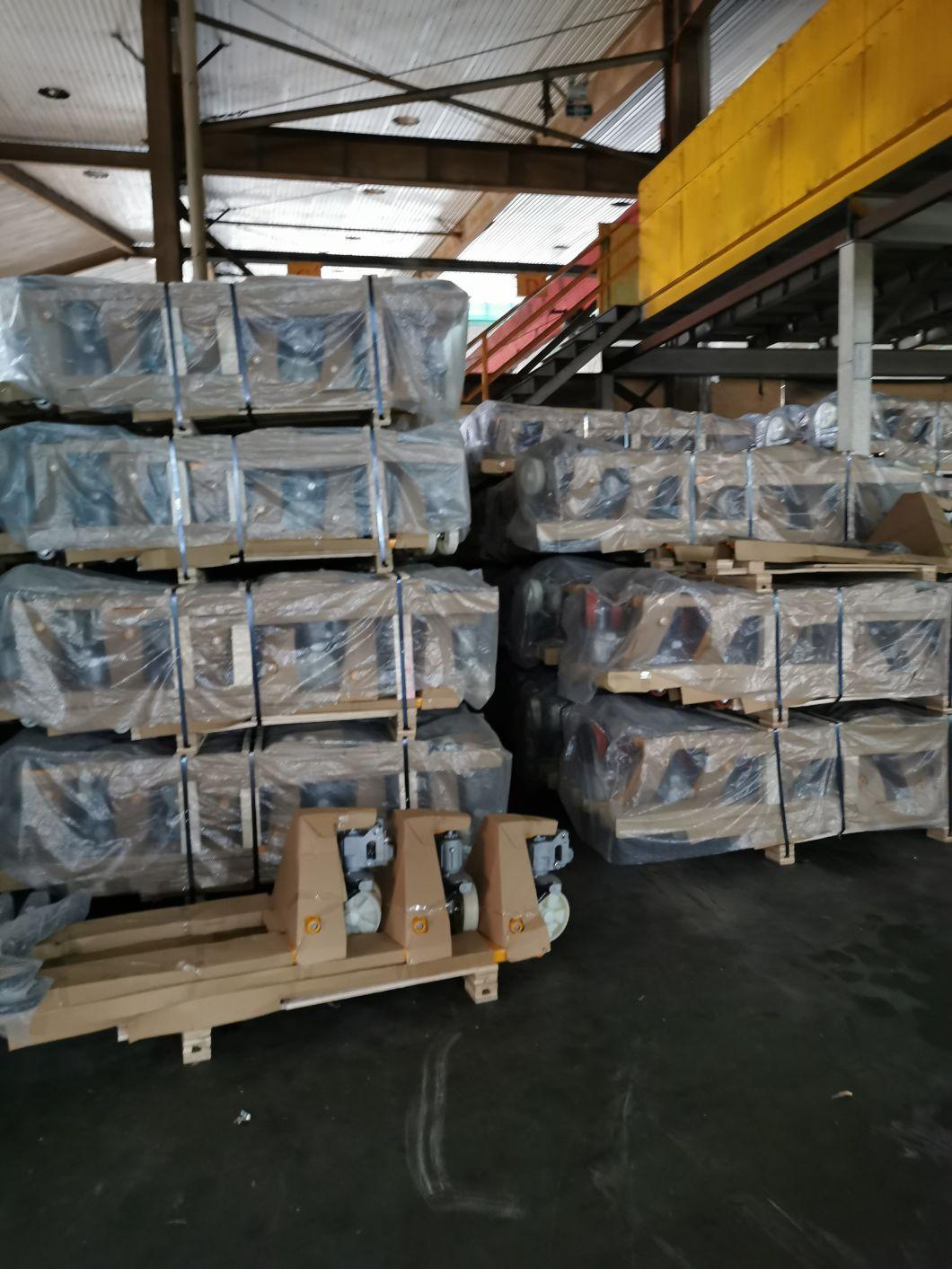

Packing and Delivery
| Fork dimension(mm) | Quantity(1X20GP) | Quantity(1X40HQ) |
| 550*1150 | 180sets 30packages | 360sets 60packages |
| 685*1220 | 144 sets 24packages | 336sets 56packages |
High praise from customer
CE CertificationISO9002:1995
ISO9001:2008(Quality management system)
ISO14001:2004(Environmental management system)
OHSAS18001:2007(Occupational Health and Safety management system)
We got TUV/GS/CE certificate for hand pallet truck early in 1991,who was the first manufacture in China.For material handling equipment of Manual Lift Trucks and Electric Lifting Trucks,up to 90% products have approved CE certificate from TUV,our products have approved CE standards of ISO3691-1 EN1175-1 EN16307-1

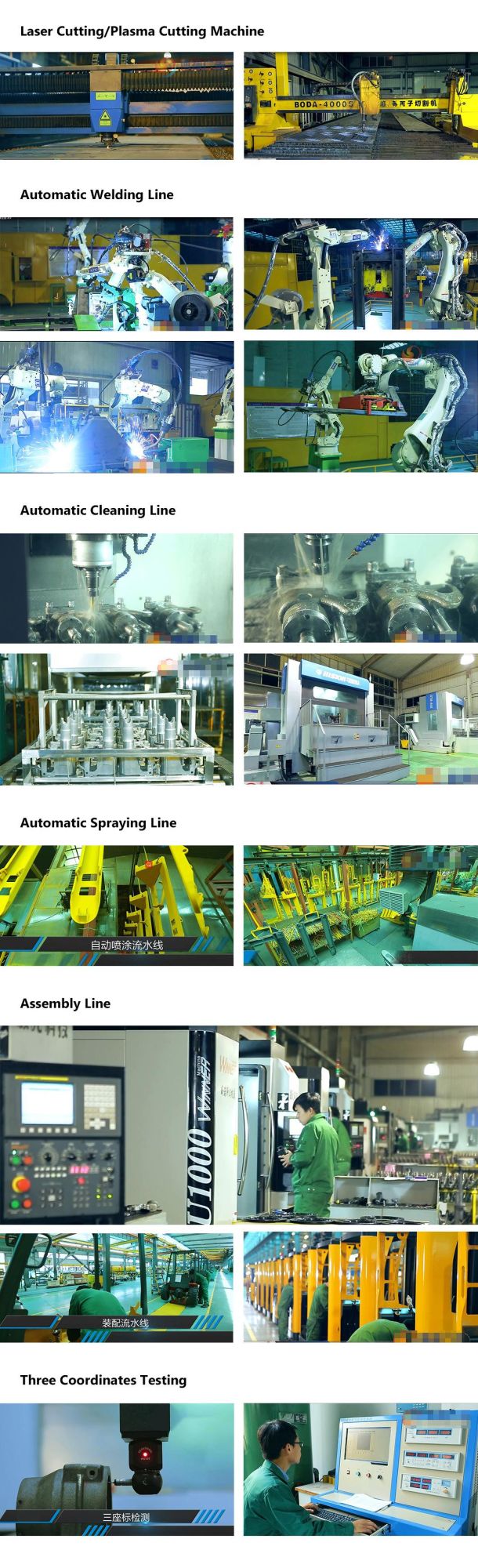

Factory strength
36 year's experience8 international approvals150,000m2 factory area1,200 employees188 professional mechanical technicians77 senior engineers500 types warehouse equipment157 countries and regions exported to
FAQ
Q1: How about the continuous working time for the electric truck series ? And How long time to charge the battery full ?
A1: MOVMES battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 3--6 hours to charge the battery.
Q2: What's the fork dimensions of hand pallet truck
A2: EU standard 520/550*1150mm and America standard 685*1220mm.
Q3: Can MOVMES provide customized products? OEM or ODM products?
A3: Yes, Since 1985,Our factory is always professionally in developing and producing warehouse logistic equipment ,such as hand/electric pallet trucks,manual /electric slackers, reach trucks, forklifts and so on.We do OEM for Jungheinrich/ Clark / Hyster / Yale etc.
Q4: How long is the Warranty for MOVMES product?
A4: MOVMES provides one year warranty.During the warranty period we provide wearing parts for free which are damaged by non-human.
Under the current international environment, the electric industry will definitely develop vigorously. As a the new brand in the warehousing and logistics industry, MOVMES has the strength factory and high-end products as the main support power. Now we are looking for agents all over the world to expand our brand In the market, please give us a chance to cooperate, you will get the same quality products as the world's famous brands.
