• Model NO.：CQDH18C
• Fuel：Electric
• Load center：500mm
• Lift height：>5000mm
• Condition：New

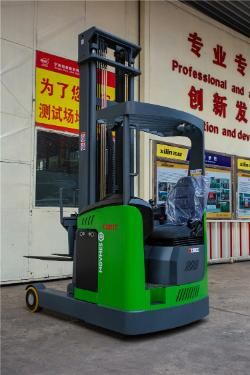

• Name：Electric Fork Reach Truck Forklift
• Center Distance：600 mm
• Wheel：PU
• Wheel Dimension,Front：Dia 280X100+160X60X2 mm
• Fork Wheels：Dia 125X82(4)mm
• Height of Mast,Lowered：2185,2345,2505,2675mm
• Max.Height of Mast,Extended：4500,5000,5500,6000mm
• Free Lift：1575,1700,1825,2000mm
• Overall Length：2609mm
• Fork Dimension：40,100,1070 mm
• Overall Width of Fork：1298,1040 mm
• Turning Radius：1848mm
• Lifting Speed,Laden/Unladen：0.2,0.3m,S
• Battery Voltage/Rated Capacity：36V700ah
• Service Weight(with Battery)：3700,3800,3900,4000 Kg
• Transport Package：One Set Pack in One Pallet
• Specification：2609 mm*1298 mm*2345 mm
• Trademark：MOVMES
• Origin：China, Ningbo
• HS Code：8427109000
• Production Capacity：100 Sets,Month

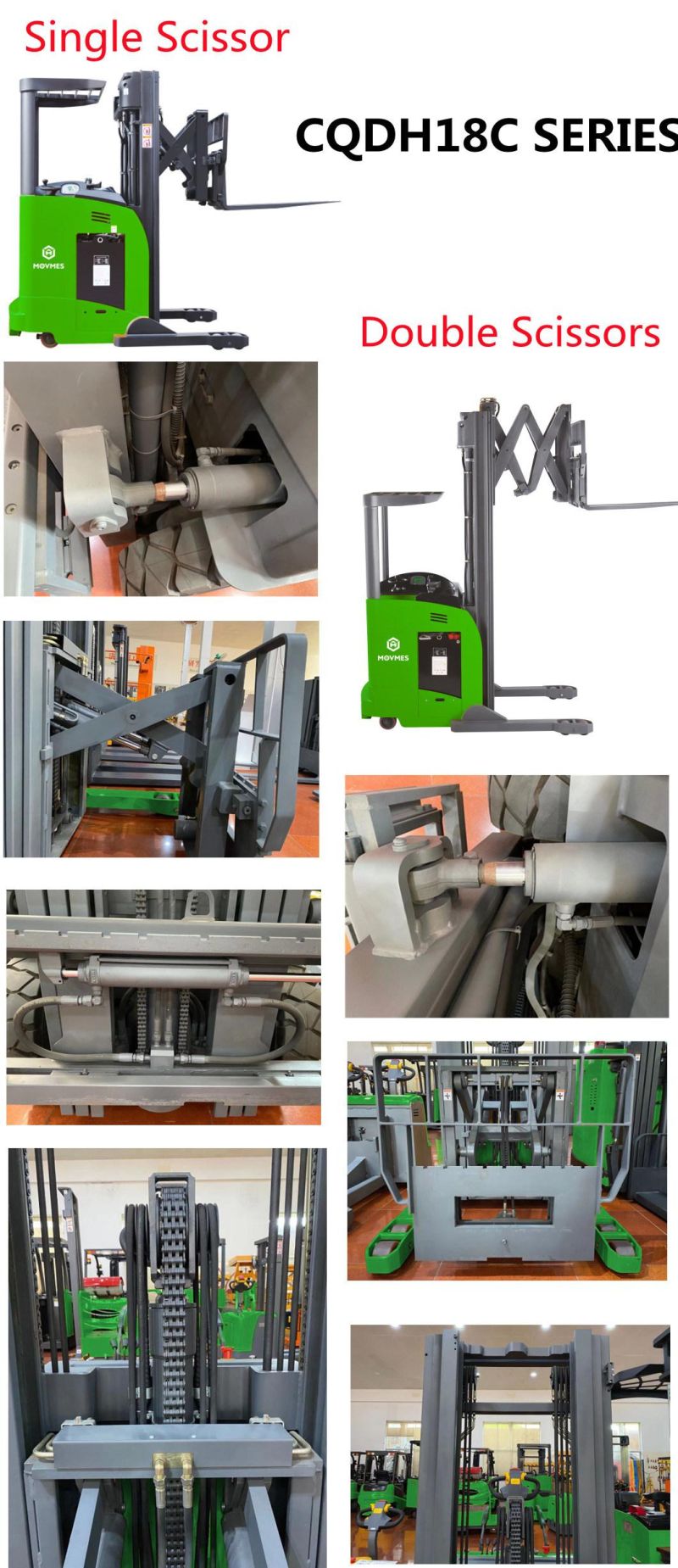

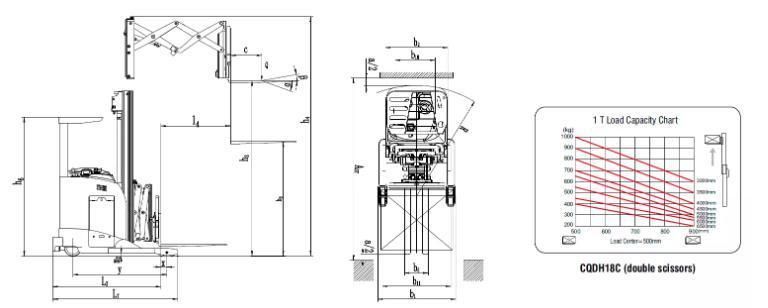

Main Configuration1) 36V AC POWER2) CURTIS CONTROLLER3) FINGER TIP CONTROL4) 36V700AH LEAD-ACID BATTERY5) 36V90A CHARGER6) DOUBLE SCISSOR FORKCQDH18C(double scissors)Drive type  BatteryBatteryLoad capacity/rated loadQ(kg)10001000Load centre distance c(mm)600600Load distance,centre of drive axle forkX(mm)12399Tyre size,frontmm280x100+160x60x2280x100+160x60x2 280x100+160x60x2Tyre size,rearmm125x82(4)125x82x(4)Wheels,number front rear (x=driven wheels) 1x+2/41x+2/4Tilt of mast(fork carriage forward/backward)grad2/52/5Height,mast loweredh₁(mm)2125    2375    26252185    2345   2505   2675   2840Free lifth₂(mm) 1575    1700   1825   2000   2125Max,lift heighth₃(mm)3000    3500    40004500    5000   5500   6000   6500Height,mast extendedh₄(mm)4035    4535    50355535    6035   6535  7035   7535Height of overhead guardh₆(mm)22462246Overall widthb₁/b₂(mm)1298/10401298/1040Overall lengthI₁(mm)25852609Length to face of forksI₂(mm)17261750Fork dimensions/e/l(mm)40/100/107040x100x1070Reach distanceI₄(mm)12001200Fork height,loweredh₈(mm)4040Distance of "X"(see below diagram)mm450450Overall length(excluding the fork)mm20232023Ground clearance,centre of wheelbasem₂(mm)4949Aisle width for pallets1000x1200 crosswaysA_st(mm)31103131Aisle width for pallets800x1200 lengthwaysA_st(mm)31973220Turning radiusW_a(mm)18481848Travel speed,laden/unladenKm/h6.5/76.5/7Lift speed,laden/unladenm/s0.2/0.30.2/0.3Lowering speed,laden/unladenm/s0.32/0.3120.32/0.312Battery voltage,nominal capacity K5V/Ah36/70036/700Battery weight kg810810Battery dimension l/w/hmm978x395x765978x395x765Service weight(with battery)kg3410   3460    35603700  3800  3900  4000  4100

Related ProductionCQD15 Narrow Aisle Mast fork reach truck
1.5ton with 5000-8000mm lifting height,

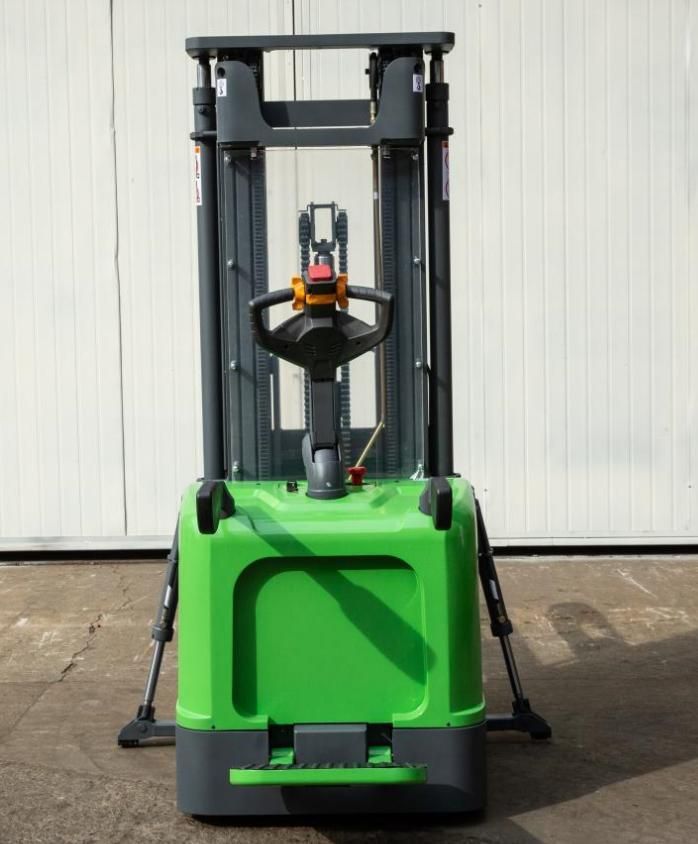

CURTIS controller,48V400AH LEAD-ACID BATTERYCDDR15-III walkie electric stacker
1.5ton with 2500-5600mm lifting height ,
24V AC power,CURTIS controller,24V200Ah lead-acid battery CDDK20 ,Rider electric stacker
2.0 ton with 3000-6500mm lifting height.
24V AC power,CURTIS controller,24V300AH LEAD-ACID BATTERY .24V40A CHARGER

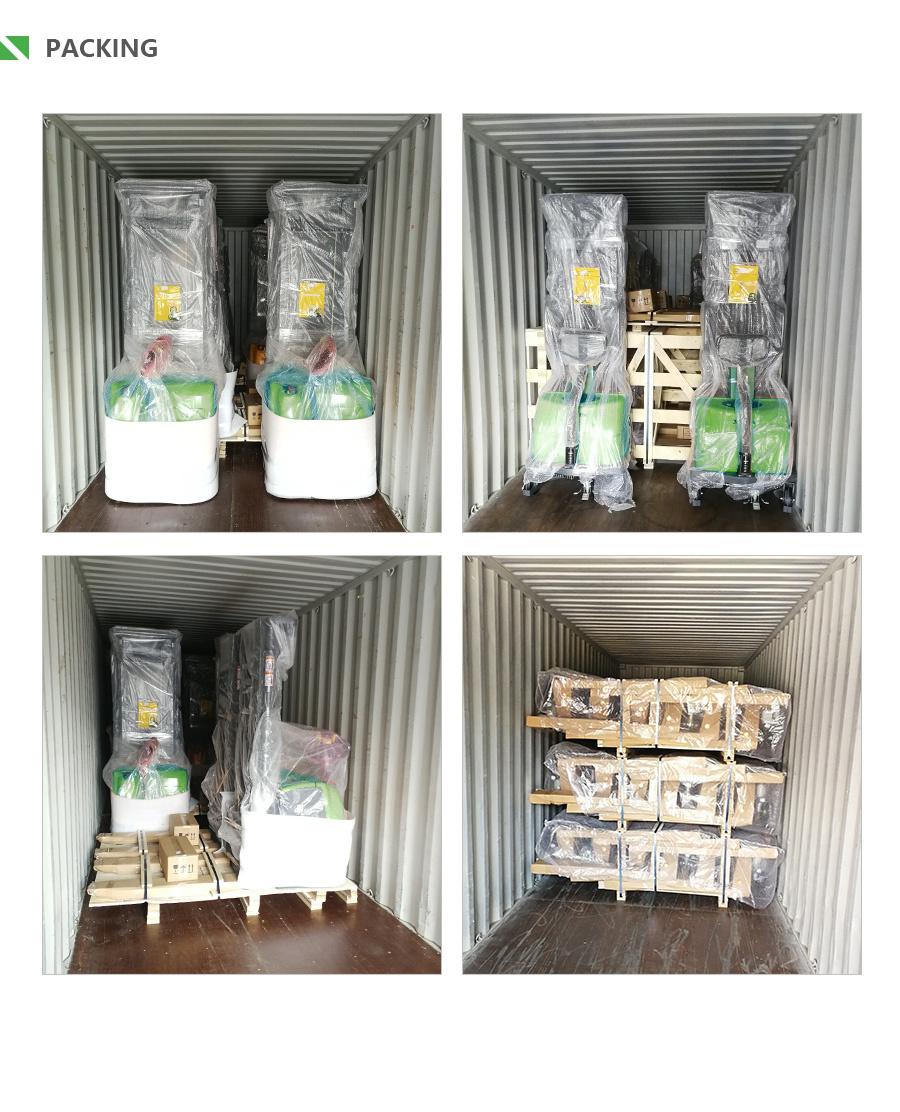

Packing and Delivery
MOVMES according to the delivery requirements of each customer, we carefully package each TRUCK. Before delivery, we will take photos and videos, and only after getting the customer's approval will we send them away.

Usually MOVMES producing time is 30-45 days after we receive the advanced 30% payment.

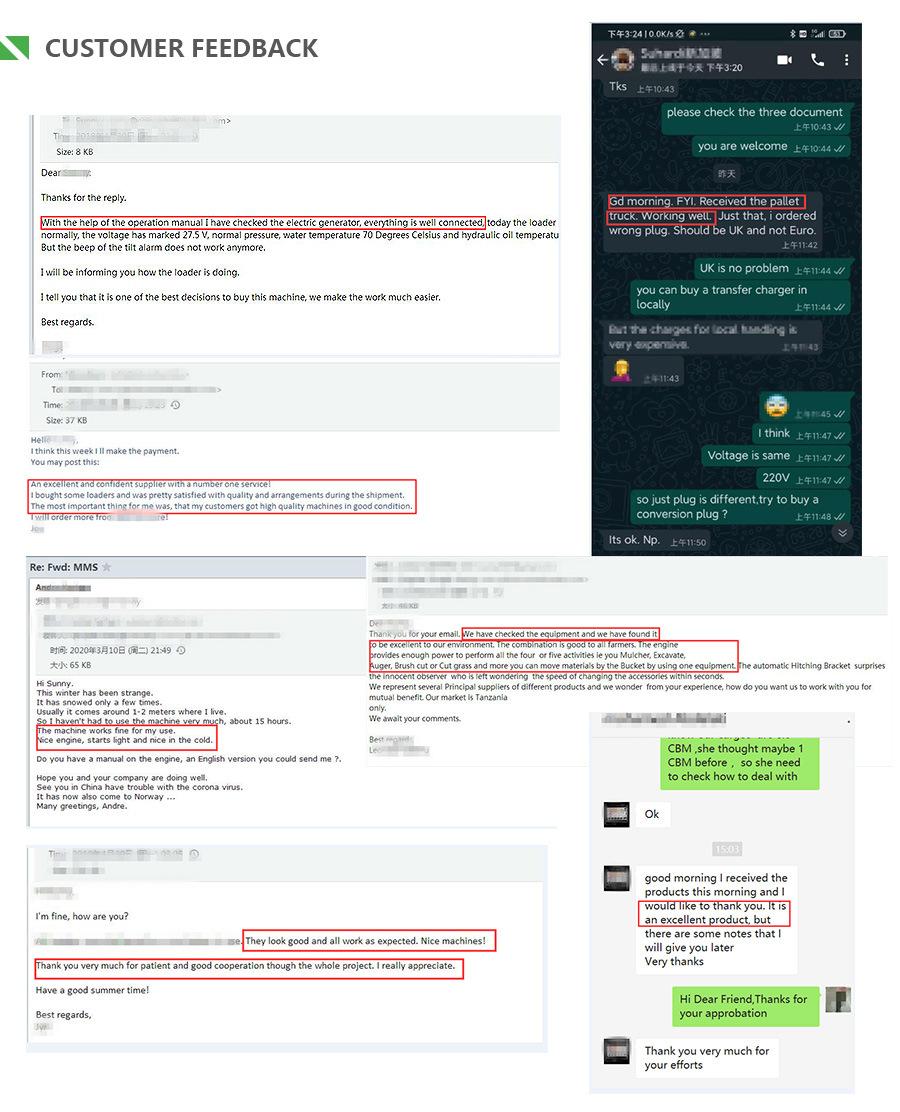

High praise from customer
CE Certification

ISO9002:1995

ISO9001:2008(Quality management system)

ISO14001:2004(Environmental management system)

OHSAS18001:2007(Occupational Health and Safety management system)

We got TUV/GS/CE certificate for hand pallet truck early in 1991,who was the first manufacture in China.For material handling equipment of Manual Lift Trucks and Electric Lifting Trucks,up to 90% products have approved CE certificate from TUV,our products have approved CE standards of ISO3691-1  EN1175-1    EN16307-1

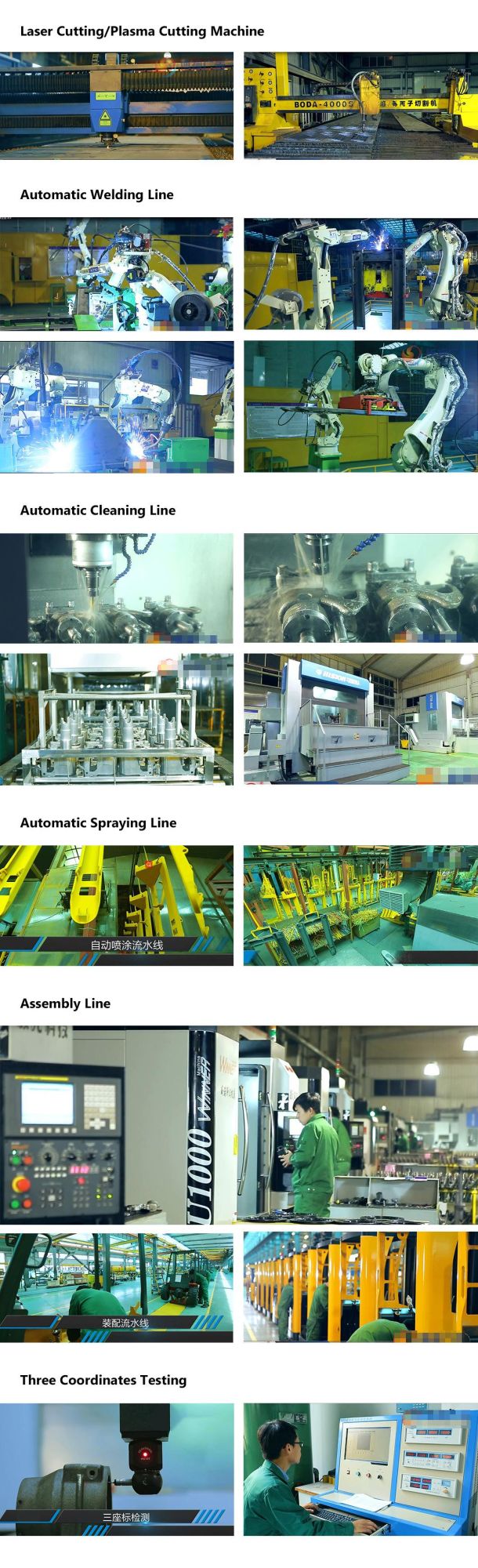

Factory strength
36 year's experience8 international approvals150,000m² factory area1,200 employees188 professional mechanical technicians77 senior engineers500 types warehouse equipment157 countries and regions exported to
FAQ

Q1: How about the continuous working time for the electric truck series ? And How long time to charge the battery full ?

A1: MOVMES battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 3--6 hours to charge the battery.



Q2: What's the specification of the chargers of CQDH18C?

A2: Our chargers 36V700AH Lead-acid battery. Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.



Q3: Can MOVMES provide customized products? OEM or ODM products?

A3: Yes, Since 1985,Our factory is always professionally in developing and producing warehouse logistic equipment ,such as hand/electric pallet trucks,manual /electric slackers, reach trucks, forklifts and so on.We do OEM for Toyota/ Jungheinrich/ Clark / Hyster / Yale etc.



Q4: How long is the Warranty for MOVMES product?

A4: MOVMES provides one year warranty.During the warranty period we provide wearing parts for free which are damaged by non-human.
