• Model NO.：BF-III
• Fuel：Hydraulic
• Load center：500mm
• Lift height：>5000mm
• Condition：New
• Name：Hand Hydraulic Pallet Jack
• Capacity：2500,3000kg
• Lowered Fork Height：85mm
• Steering Wheel：Dia 180mm
• Fork Wheel Single：Dia 74X93mm
• Fork Wheel Double：Dia 74X70mm
• Max.Lifting Height：195mm
• Overall Length：1543,1613mm
• Fork Length：1150,1220mm
• Width Overall Forks：520,550,685mm
• Ground Clearance,Center of Wheelbase：32 mm
• Aisle Width for 1000X1200 Crossways：1743,1813mm
• Aisle Width for 800X1200 Crossways：1793,1813mm
• Turning Radius：1276,1346 mm
• Service Weight：56-70kg
• Transport Package：6 Sets in One Package
• Specification：2.2x0.54x0.7
• Trademark：MOVMES
• Origin：China, Ningbo
• HS Code：8427109000
• Production Capacity：100 Sets,Month

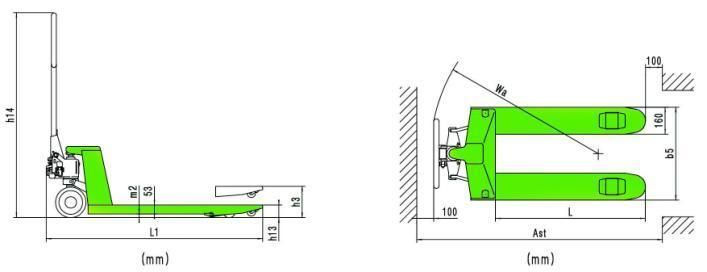

BF-IIICapacityQ(kg)2500/30002500/3000Lowered fork heighth₁₃₍mm)8575Steering wheelmmDia180Dia180Fork wheel singlemmDia74x93Dia74x93Fork wheel tandemmmDia74x70Dia74x70Max.lifting heighth₃(mm)195185Height of tiller in drive position min./max.h₁₄(mm)12141214Overall lengthI₁(mm)1543/16131543/1613Fork lengthI(mm)1150/12201150/1220Width overall forksb₅(mm)520/550/685520/550/685Ground clearance,centre of wheelbasem₂(mm)3222Aisle width for pallets 1000x1200 crosswaysA_st(mm)1743/18131743/1813Aisle width for pallets 800x1200lengthwaysA_st(mm)1793/18131793/1813Turning radiusW_a(mm)1276/13461276/1346Service weight(with battery)Kg56-7056-70Advantage:
Hand pallet truck

1. Integrated pump without welding,no any leaking problems.
2. Frame force is more reasonable,and the strength is more reliable.
3. Handle seat has hole it is more convenient for installation of control chain.
4. Forks lowering speed is controllable,with overload valve to avoid overloading.

Option:

1. steering wheel 200mm(fork wheel 80mm)are available.
2. Nylon wheel ,polyurethane wheel ,rubber wheel ,single fork roller or tandem fork rollers.
3. fork length:800mm,900mm,1000mm,1100mm
4. foot pedal release.
5. pump color:black painting
6. quick life(double speed lifting.

BF:2.0/2.5/3.0ton hand pallet truck ,550x1150mm/685x1220mm  plastic/Nylon/PU wheels BFC6-7E 2.0ton mobile pallet truck with scale  BFS 2.5ton stainless steel pallet truck can work into and out of freezers coolers

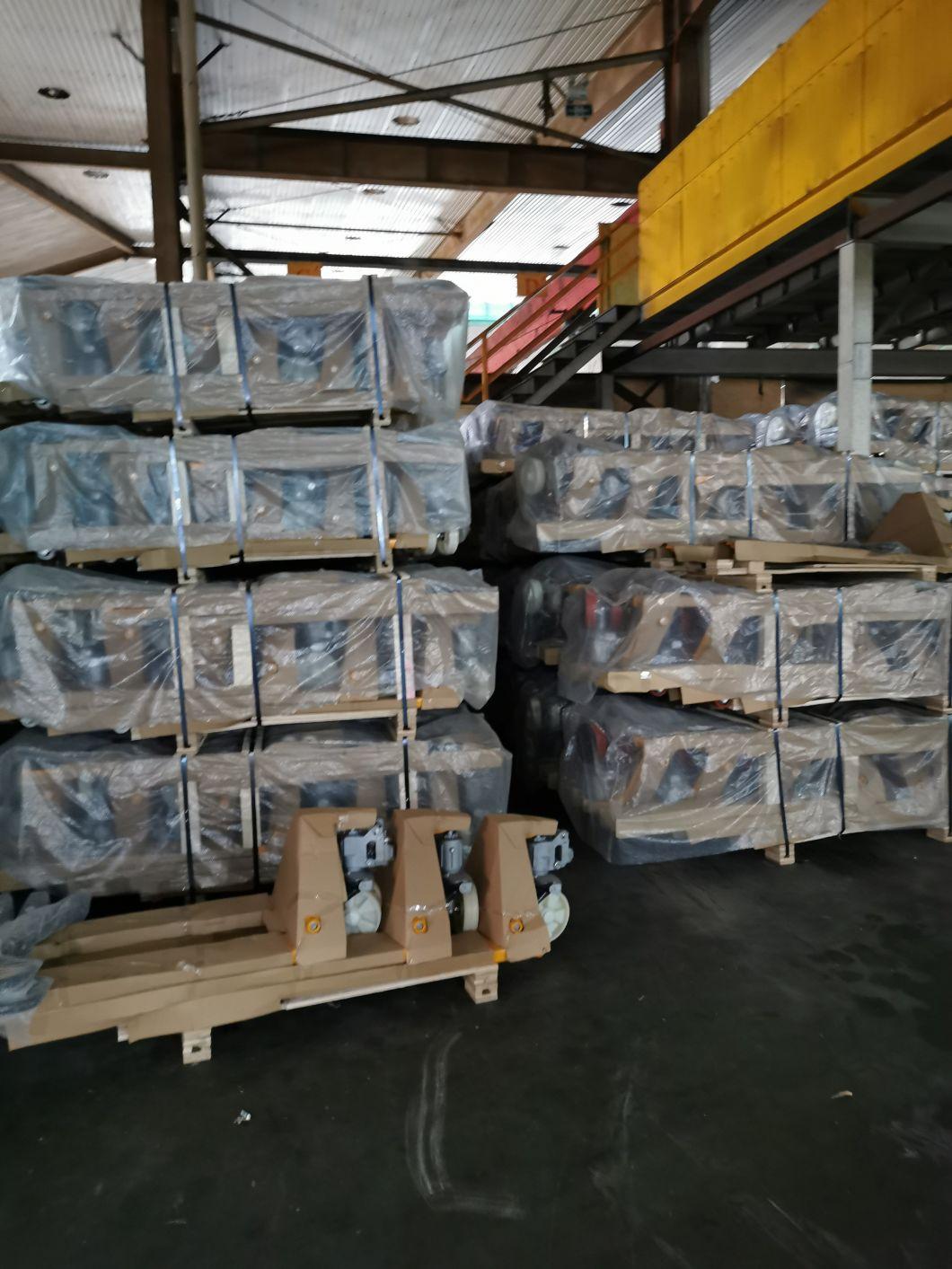

Packing and Delivery

Fork dimension(mm)	Packing size(mm)	Quantity(1X20GP)
520*1150/1220	2200*540*700	180sets  30packages
550*1150/1220	2200*560*700	180sets  30packages
685*1150/1220	2200*700*650	144sets  24packages

High praise from customer
CE Certification

ISO9002:1995

ISO9001:2008(Quality management system)

ISO14001:2004(Environmental management system)

OHSAS18001:2007(Occupational Health and Safety management system)

We got TUV/GS/CE certificate for hand pallet truck early in 1991,who was the first manufacture in China.For material handling equipment of Manual Lift Trucks and Electric Lifting Trucks,up to 90% products have approved CE certificate from TUV,our products have approved CE standards of ISO3691-1  EN1175-1    EN16307-1

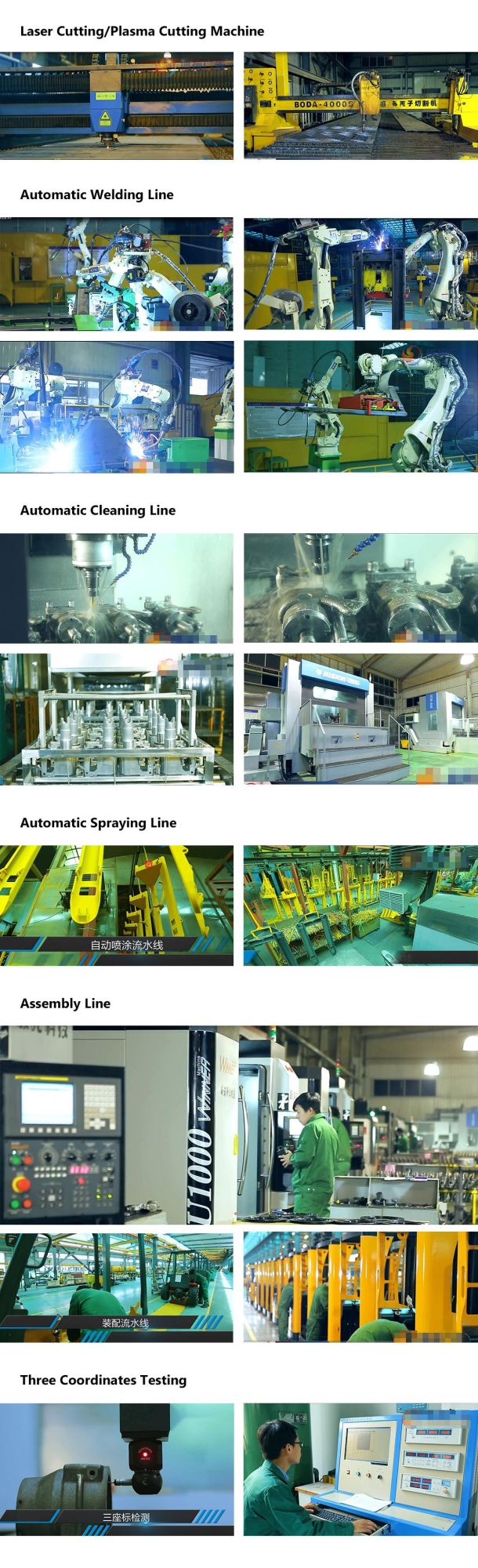

Factory strength
36 year's experience8 international approvals150,000m² factory area1,200 employees188 professional mechanical technicians77 senior engineers500 types warehouse equipment157 countries and regions exported to
FAQ

Q1: How about the continuous working time for the electric truck series ? And How long time to charge the battery full ?

A1: MOVMES battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 3--6 hours to charge the battery.



Q2: What's the fork dimensions of hand pallet truck

A2: EU standard 520/550*1150mm and America standard 685*1220mm.



Q3: Can MOVMES provide customized products? OEM or ODM products?

A3: Yes, Since 1985,Our factory is always professionally in developing and producing warehouse logistic equipment ,such as hand/electric pallet trucks,manual /electric slackers, reach trucks, forklifts and so on.We do OEM for Jungheinrich/ Clark / Hyster / Yale etc.



Q4: How long is the Warranty for MOVMES product?

A4: MOVMES provides one year warranty.During the warranty period we provide wearing parts for free which are damaged by non-human.
