• Model NO.：TB15
• Lift height：3000~5000mm
• Condition：New
• Color：Customized
• Max Lifting Weight：1500 Kg
• Model：Tb15
• Wheel Base：1305 mm
• Operating Type：Walk
• Wheels Type：PU
• Weight：210 Kg
• Transport Package：Nuded or as Customer′s Requirement
• Trademark：Thai-Sun
• Origin：China
• HS Code：8427109000
• Production Capacity：2000 Sets,Month

Basic Info.

Model NO. TB15 Lift height 3000~5000mm Condition New Color Customized Max Lifting Weight 1500 Kg Model Tb15 Wheel Base 1305 mm Operating Type Walk Wheels Type PU Weight 210 Kg Transport Package Nuded or as Customer′s Requirement Trademark Thai-Sun Origin China HS Code 8427109000 Production Capacity 2000 Sets/Month

Product Description

Product Description:

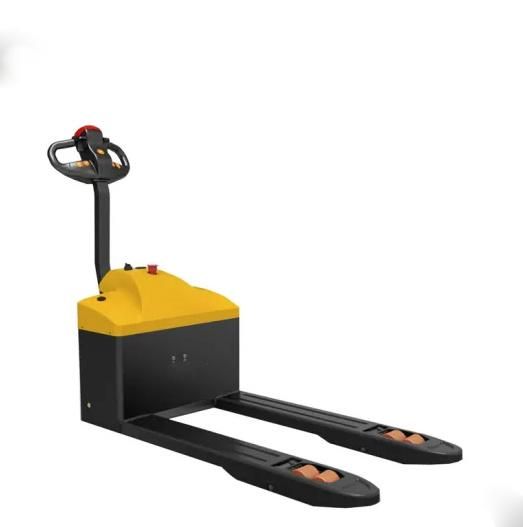

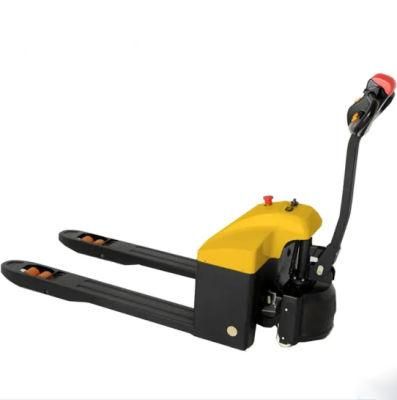

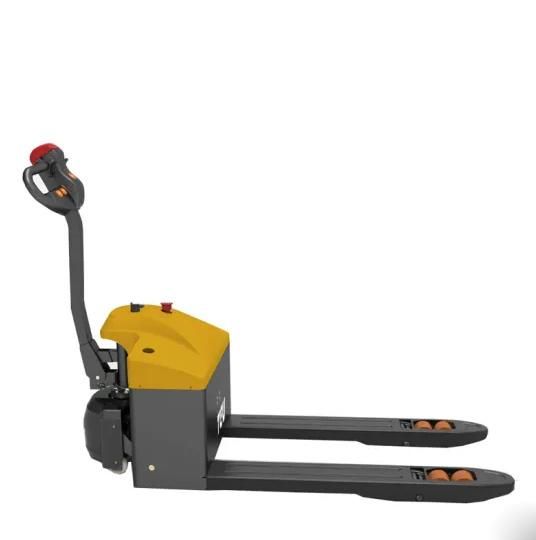

TB 15 Series Electric Pallet Performance:
High-efficient DC drive unit, equipped electromagnetism brake system, which improved security.
Built-in charger, more convenient for customer.
Solid metal shield effectively protects drive system and operator's foot.
Imported Germany water-proof micro switch is available to adapt to cold, wet, dust and other harsh environment.
Handle with turtle speed switch, makes speed control more precise.
New wiring way
Solid mental shield
Original Germany water-proof micro switch
Operation handle with turtle speed switch

Feature	Unit
1	Model		TB15
2	Configuration No.		170H
3	Load capacity	kg	1500
4	Load center	mm	600
5	Wheel base	mm	1305
6	Operating type		Walkie
	Wheels
7	Wheels type		PU
8	Wheel quantity  Driving wheel/Balance wheel /Bearing wheel		1/0/4
9	Driving wheel size	mm	¢210*70
10	Balance wheel size	mm	¢84×70 (Double wheels)
11	Bearing wheel size	mm	80X17
	Dimension
12	Min.fork lowered  height	mm	85
13	Max.fork lifting height	mm	205
14	Max.lifting height	mm	120
15	Outside width between forks	mm	550/600/650/685
16	Inside width between forks		230/280/330/365
17	Fork length	mm	1150/1200
18	Fork width	mm	160
19	Fork thickness	mm	73
20	Overall length	mm	1830
21	Overall width	mm	700
22	Overall height(With handle)	mm	1295
23	Overall height(Without handle)	mm	650
24	Min.Turning radius	mm	1595
25	Min.Aisle width for pallets 800×1200	mm	1940
26	Min.Aisle width for pallets 1000×1200	mm	1975
	Performance
27	Travel speed,laden/unladen	km/h	3.5/4
28	Lift speed,laden/unladen	mm/s	35/40
29	Lowering speed,laden/unladen	mm/s	75/60
30	Gradeability,laden/unladen	%	5/7
	Electrical configuration
31	Drive motor	KW	DC 0.65
32	Lift motor	KW	DC 0.8
33	Battery voltage / capacity	V/Ah	24/85
34	Brake		Electromagnetic / Regenerative
35	Controller
	Weight
36	Battery weight	kg	50
37	Service weight with battery	kg	210

Company Information:
Established in year2013, Our company is a professional manufacturer and exporter that is concerned with the design, development and production.We are located in Hefei city which is very close to Shanghai and it is convenient for transportation. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
We have over 50 employees, an annual sales figure that exceeds USD 2 million and are currently exporting 70% of our production worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Mid-East Country, South-America, India and south East Asia. If you arc interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

Factory Introduction:

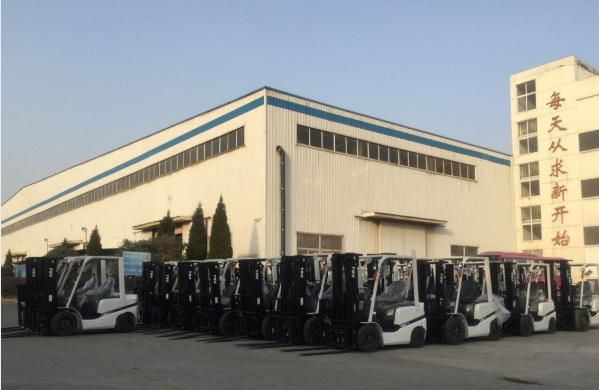

Thai-Sun is an import & export company located in Hefei, China with 3-hour-driving distance to Shanghai.We have been working in this field since year 2013 with 35, 000 square meters area which is a professional company focusing on research, development, manufacturing, sales, after-sales service of IC & electric counter balanced forklift, reach truck, stacker, pallet truck and other warehouse equipments and their spare parts.

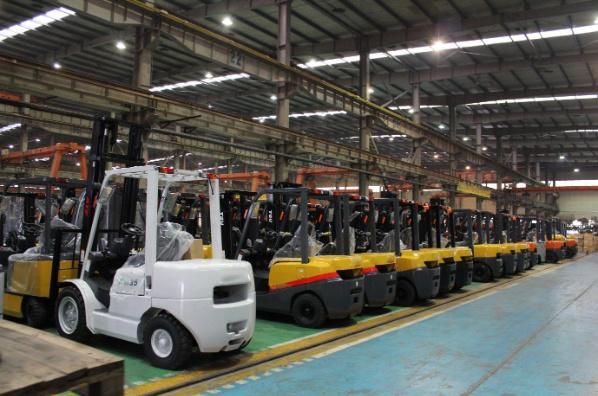

We possess vehicle assembly lines, painting lines, welding lines, standard test sites and various testing and detection equipment and facilities, and the annual production capacity reaches to 10, 000 units.All the products have obtained ISO 9001 quality system certificate, special equipment manufacturing license, CE certificate and SGS certificate.Many forklifts are known as high -tech products, and both quality and technology level of products are in the leading position in China.
The members of Family now distributes in domestic and international market, covering nearly a hundred countries and regions.In the coming days, we will insist high-quality products and high-level service, invest more capital and technology to research and develop new model forklifts to satisfy customers demands and to perfect marketing and service network. Our company offers variety of products which can meet your multifarious demands.We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers.Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
