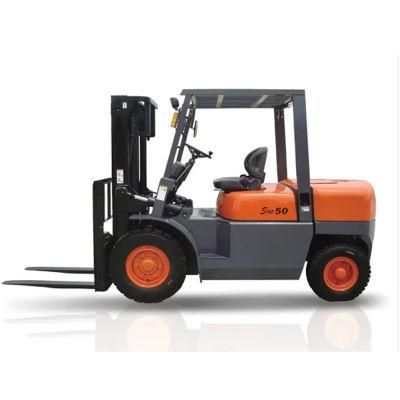

Diesel Forklift 5t Heavy Duty Diesel Forklift Used for Moving and Lifting Cargo
Hefei Thai-Sun Trading Co., Ltd.- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：DC Motor
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：>500mm
Base Info
- Model NO.：FD50T
- Lift height：3000~5000mm
- Condition：New
- Color：Customized
- Engine：Mitsubishi S6s
- Lifting Weight：5000 Kg
- Tire：Pneumatic Tire
- Battery Voltage：12 V
- Service Brake：Hydraulic-Foot Pedal
- Parking Brake：Mechanical-Hand Lever
- OEM /ODM：Yes
- Transport Package：Nuded or as Customer′s Requirement
- Trademark：Thai-Sun
- Origin：China
- HS Code：8427209000
- Production Capacity：2000 Sets,Month
Description
FD50T Technology SpecificationFeatures 1 Manufacturer Thai-Sun 2 Model FD50T 3 Load capacity kg 5000 4 Load center mm 600 5 Power unit Diesel 6 Operator type Driver/seat 7 Tire type Pneumatic 8 Wheel Front/rear 4/2 Dimension 9 Max. lifting height mm 3000 10 Free lift mm 205 11 Fork size L*W*T mm 1220*150*60 12 Tilt range Mast forward/backward deg 6/12 13 Overall length(without fork) mm 3455 14 Total width mm 1995 15 Mast height (fork lowering) mm 2500 16 Overall height fork raised With backrest mm 4420 17 Height to head guard mm 2450 18 Turning radius(outside) mm 3250 19 Front face of fork to front axle mm 615 20 Min. right angle stacking aisle pallet size :1100×1100 add clearance mm 5500 Performance 21 Speed Max Travelling full/no load km/h 26/30 22 Lifting full/no load mm/s 500/550 23 Lowering full/no load mm/s 450/500 24 Max.drawbar pull full/no load kg 5500/2250 25 Gradeability at 1.6km/h full load % 37 26 Max. Gradeability full/no load % 42/19 Weight 27 Truck weight kg 8050 28 Weight distribution Full load front/rear kg 11710/1340 29 No load front/rear kg 4020/4030 Frame 30 Tires Number front/rear 4/2 31 Model front axle 8.25x15-14PR 32 rear axle 8.25x15-14PR 33 Wheelbase mm 2250 34 Tread Front/rear mm 1470/1700 Ground clearance At lowest point(mast) mm 190 35 Frame mm 230 Brake Service brake power brake 36 Parking brake Mechanical-hand lever Engine 37 Battery Voltage/capacity V/AH 2x12V-80AH 38 Engine Model ISUZU 6BG1 Rated power kw/rpm 82.3/2000 Rated torque N-m/rpm 418/1500 Number of cylinders 6 Displacement L 6.494 39 Fuel tank capacity L 140 40 Transmission shift stage(front/rear-type) 2-2 automatic 41 Operating pressure Hydraulic system pressure kg/cm² 200
We have over 50 employees, an annual sales figure that exceeds USD 2 million and are currently exporting 70% of our production worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Mid-East Country, South-America, India and south East Asia. If you arc interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

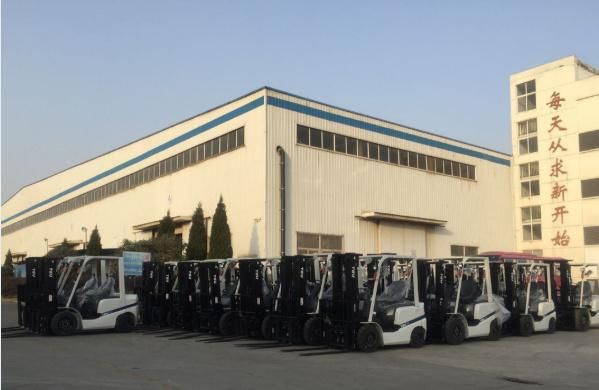

Factory Introduction:
Thai-Sun is an import & export company located in Hefei, China with 3-hour-driving distance to Shanghai.We have been working in this field since year 2013 with 35, 000 square meters area which is a professional company focusing on research, development, manufacturing, sales, after-sales service of IC & electric counter balanced forklift, reach truck, stacker, pallet truck and other warehouse equipments and their spare parts.

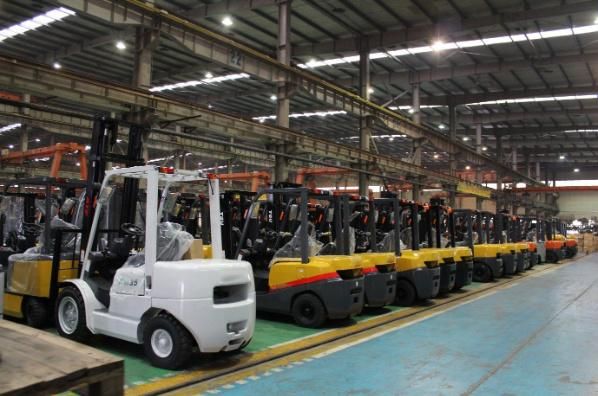

We possess vehicle assembly lines, painting lines, welding lines, standard test sites and various testing and detection equipment and facilities, and the annual production capacity reaches to 10, 000 units.All the products have obtained ISO 9001 quality system certificate, special equipment manufacturing license, CE certificate and SGS certificate.Many forklifts are known as high -tech products, and both quality and technology level of products are in the leading position in China.
The members of Family now distributes in domestic and international market, covering nearly a hundred countries and regions.In the coming days, we will insist high-quality products and high-level service, invest more capital and technology to research and develop new model forklifts to satisfy customers demands and to perfect marketing and service network. Our company offers variety of products which can meet your multifarious demands.We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers.Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
