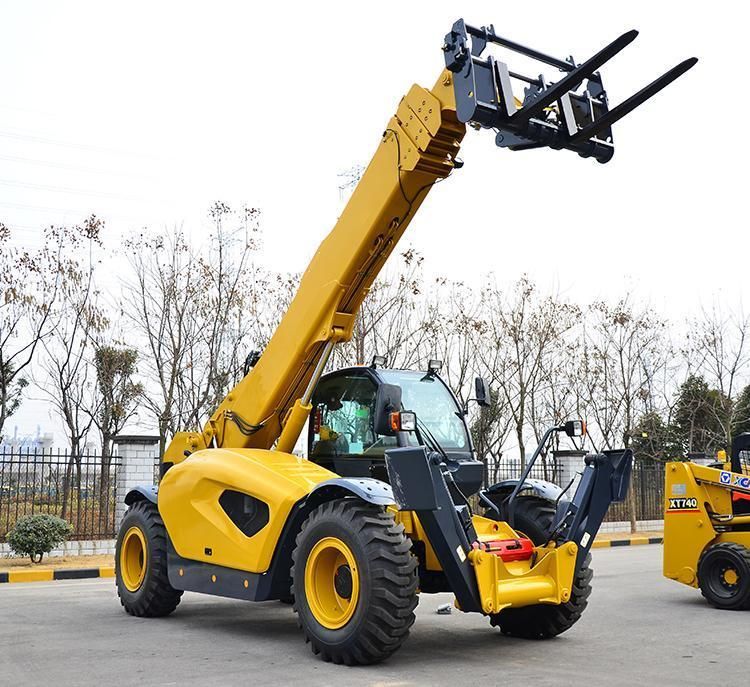

5tons Capacity Telehandler From China, 14m Telescopic Handler 3.5 Ton Telehandler Xc6-3514K 17m 5tons Telehandler for Sale, Diesel Telescopic Forklift Truck
Uptra Electric & Machinery (Shanghai) Co., Ltd.- Warranty：1year
- Cab Location：Adjustable
Base Info
- Model NO.：th
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：>500mm
- Lift height：>5000mm
- Condition：New
- Transport Package：Naked in Container
- Specification：CE
- Trademark：Super-above
- Origin：Jiangsu, China
- HS Code：8705109100
- Production Capacity：1000PCS,Year
- Package size per unit product：6000.00cm * 350.00cm * 220.00cm
- Gross weight per unit product：5800.000kg
Description
Unit XC6-3507K XC6-3514K XC6-4517K Gross weight kg 7850 10500 13500 Engine power kW 70 74.9 82(CUMMINS)/74.9(DDE) Rated load kg 1250 3500 4500 Maximum lifting height mm 7150 13700 16700 Maximum forward reach mm 3600 9600 12600 Center distance of load mm 600 600 600 Luffing angle ° -3~65 -4~73 -4~73 Fork angle ° -90~18 -90~18 -90~18 Maximum traction force kN ≥55 ≥55 ≥70 Gradeability ° ≥40 ≥25 ≥25 Maximum traveling speed km/h 30 30 36 Turning radius mm ≤3880 ≤4750 ≤5000 Braking distance m ≤8 ≤10 (Initial speed 32±2km/h) Overall length mm 5065 6380 6960 Overall width mm 2250 2500 2500 Overall height mm 2470 2740 2850 Wheelbase mm 2985 2980 3900 Wheel tread mm 1840 2060 2060 Fork length mm 1200 1200 1200
