• Condition：New
• Controller Brand：Curtis
• Drive Motor：AC Motor
• Max. Load Capacity：4t
• Operation Type：Stand on
• Working Time：7 Hours
• Charging Time：7 Hours
• Warranty：12 Months
• Color：Accept Customized Color
• Battery Brand：Chinese Brand or Foreign Brand
• Lift Motor：DC Motor
• Transport Package：Standard Packing
• Specification：CE
• Trademark：MIMA
• Origin：China
• HS Code：84271090
• Production Capacity：1000 Units,Year

Basic Info.

Condition New Controller Brand Curtis Drive Motor AC Motor Max. Load Capacity 4t Operation Type Stand on Working Time 7 Hours Charging Time 7 Hours Warranty 12 Months Color Accept Customized Color Battery Brand Chinese Brand or Foreign Brand Lift Motor DC Motor Transport Package Standard Packing Specification CE Trademark MIMA Origin China HS Code 84271090 Production Capacity 1000 Units/Year

Product Description

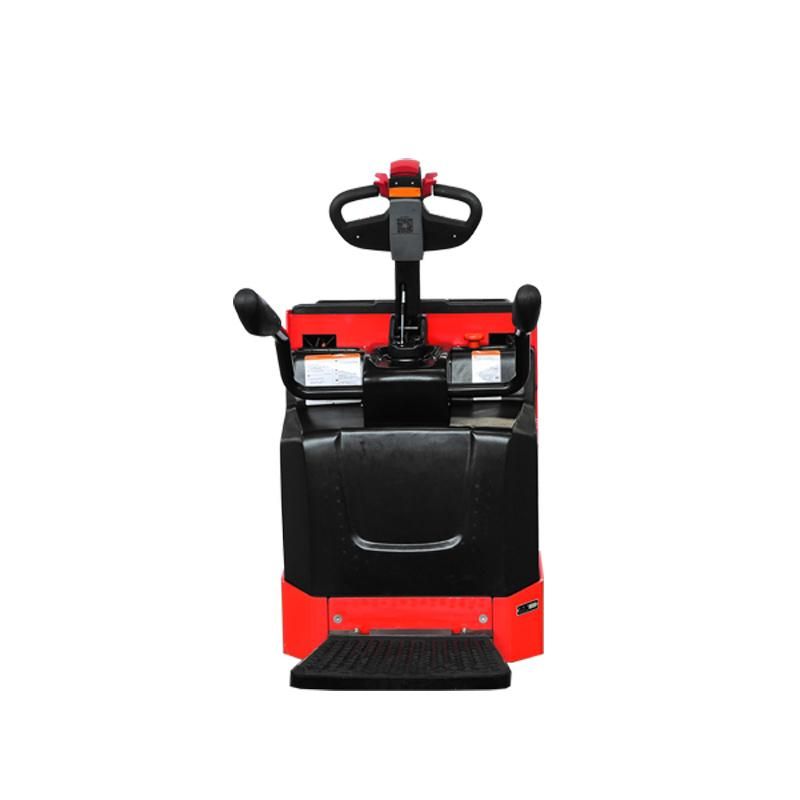

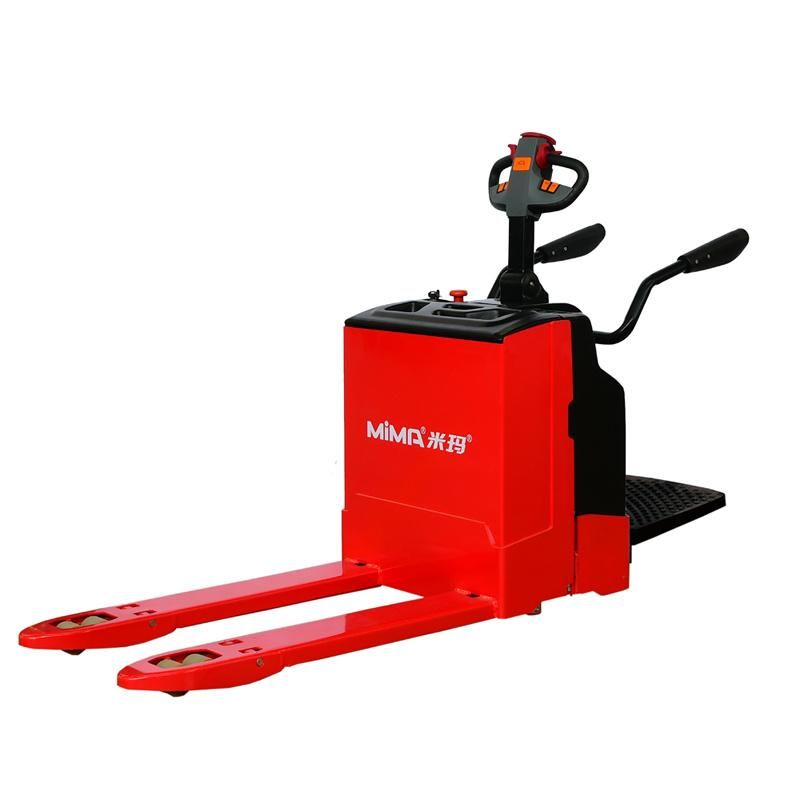

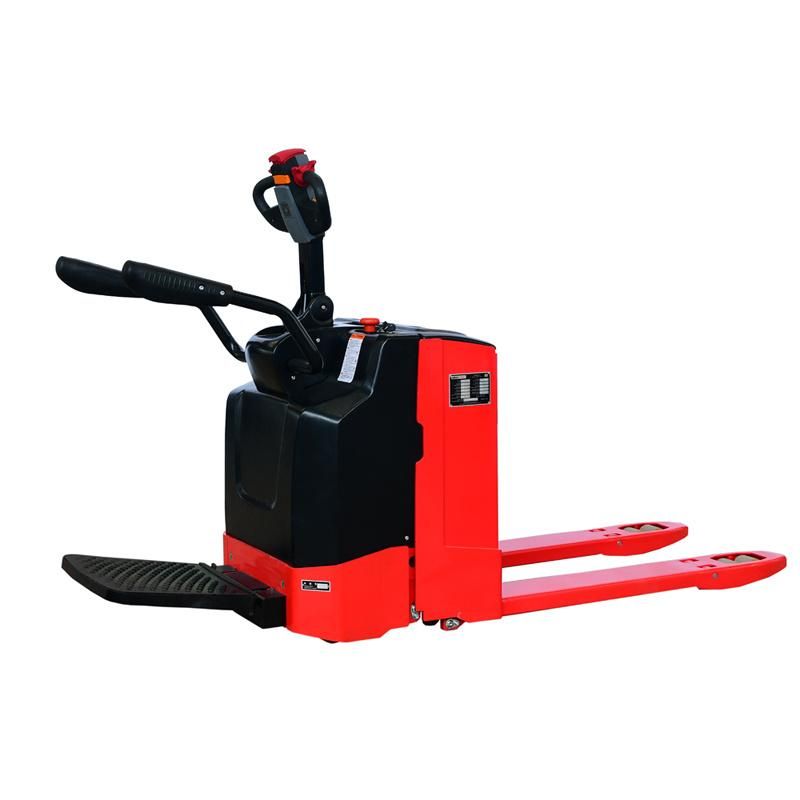

24V Electric trolley made in China ME40

 Procut details
 ME20,ME25 ,ME30,ME40
Load Capacity:2000kg,2500kg;3000kg,4000kg

Main Features:
1.EPS make operation easy and safe.

2.Arm rest safety function: when the arm rest is put down, the traveling  speed will decrease 30-40%. It increase operator's safety.

3.The dismountable pedal make it convenient to change the driving wheel.

4.The turnning speed limit protect forklift from turnning over.

5. Pull Rod lifting provides a long working life.

6.The AC motor is maintenance free.






 APPEARANCE
Special design of car body,high obstacle surmounting ability;Five-fulcrum structure,one-in-one shock absorption of auxiliary wheels on both sides,high body stability,not easy to slip;PERFORMANCE
Maintenance-free high-power AC drive system to provide reliable driving power;The unique floating suspension system of the standing-driving type;
SAFETY
Ergonomics shock absorber board,integrated operation handle;It has the function of turning speed limit;Emergency reverse driving function;


Brand		MIMA	MIMA	MIMA	MIMA
Model		ME20	ME25	ME30	ME40
Power type		Electric	Electric	Electric	Electric
Operation type		Stand on	Stand on	Stand on	Stand on
Service weight(incl. battery)	kg	676	676	860	900
Rated capacity	kg	2000	2500	3000	4000
Load centre	mm	500	500	500	500
Lift height	mm	120	120	110	110
Fork size	mm	1150/170/56	1150/170/56	1150/175/75	1150/205/75
Fork outside width	mm	680	680	685	685
Turning radius, pedal on/off	mm	2065/1730	2065/1730	2220/1800	2170/1750
Aisle width for pallet 800×1200mm, pedal on/off	mm	2550/2100	2550/2100	2200/3640	2200/2640
Aisle width for pallet 1000×1200mm, pedal on/off	mm	2500/2050	2500/2050	2150/2590	2150/2590
Driving speed	km/h	6/6	6/6	5/6	5/6
Lifting speed	mm/s	40/55	40/55	29/33	23/33
Lowering speed	mm/s	35/35	35/35	23/18	25/18
Brake type		Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic

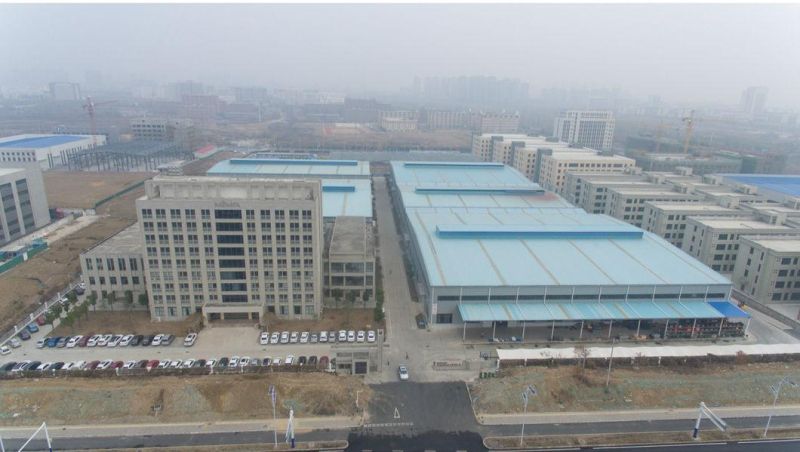

  Company Introduction     BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD.
 Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".

Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

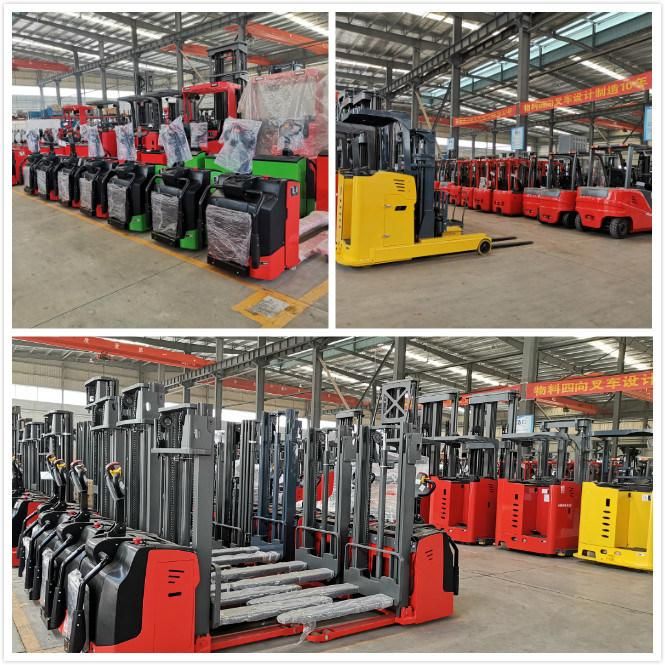

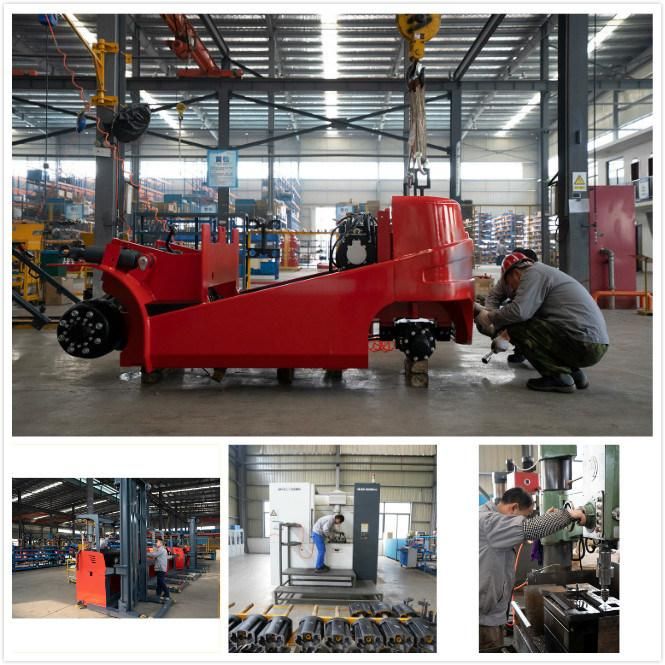

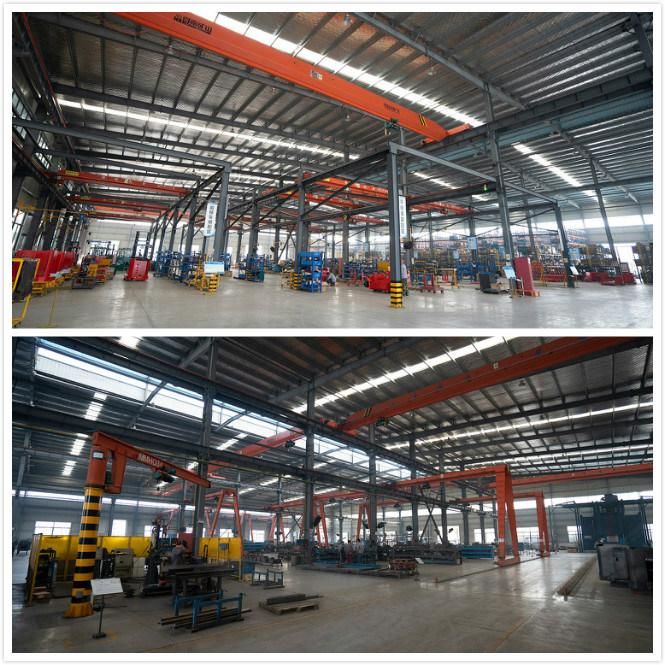

Our workshop and warehouse


              Many of  our models are in stock, if you want to know more details, please feel free to contact us.

Exhibition
