• Model NO.：TFC3050
• Condition：New
• Drive Motor：AC Motor
• Lift Motor：AC Motor
• AC Controller：Curtis
• Rated Capacity：3000kg
• Max. Lifting Height：8000mm
• Warranty：12months or 2000hours
• Operation Type：Seated
• Transport Package：Standard Packing
• Specification：SGS, ISO
• Trademark：MiMA
• Origin：China
• HS Code：8427109000
• Production Capacity：2000 Units,Year

Basic Info.

Model NO. TFC3050 Condition New Drive Motor AC Motor Lift Motor AC Motor AC Controller Curtis Rated Capacity 3000kg Max. Lifting Height 8000mm Warranty 12months or 2000hours Operation Type Seated Transport Package Standard Packing Specification SGS, ISO Trademark MiMA Origin China HS Code 8427109000 Production Capacity 2000 Units/Year

Product Description

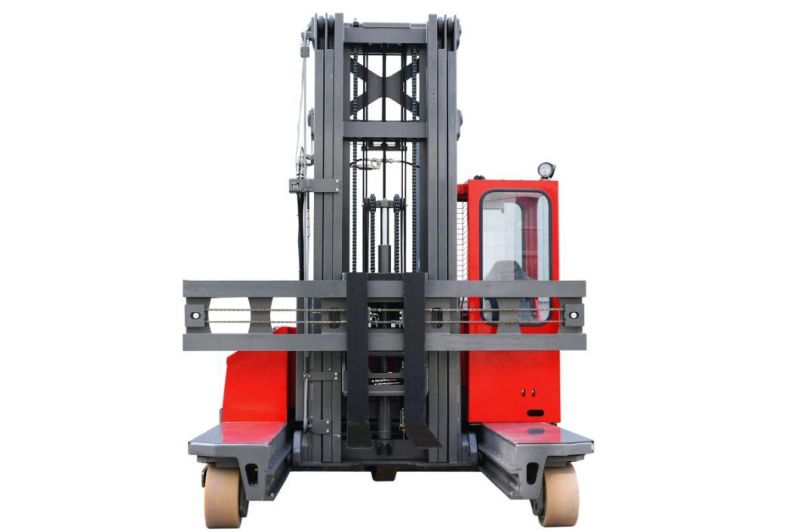

MIMA brand 3000KG Electric Siderload Forklift with Multiple Driving Modes
PRODUCT FEATURES:1. Long material handling, with the function of go straight ,go side and in situ rotation.
2. Free maintenance full AC drive system.
3.With OPS sensing system, when the operator leaves the seat, the vehicle accelerator will stop
working,  to avoid misoperation.
4. With positioner  to meet different requirements for long material handling.
5. With mast  buffering technology, reducing impact.
6. Ergonomic design of cab , provide a comfortable, safe and efficient operating  for operators.
7. With split battery layout.







 TECHNICAL SPECIFICATIONS:

Model		TFC30
Operate type		Seated
Rated capacity	kg	3000
Load center	mm	500
Wheelbase	mm	1640
Service weight(incl. battery)	kg	5500
Wheel type		PU
Load wheel size	mm	Φ380*190
Drive wheel size	mm	Φ457*160
Number of wheels, front/rear (x=drive)	mm	2/1x
Mast closed height	mm	3127
Free lift height	mm	2050
Lift height	mm	6000
Mast height with backrest	mm	6968
Cab height	mm	2550
Overall length	mm	2080
Overall width	mm	2460/2960
Fork size	mm	1000*125*45
Fork outside width	mm	560~2900
Driving motor(S2-60min)	kw	7.0AC
Lifting motor(S3 15%)	kw	8.6AC
Battery voltage/capacity	V/Ah	48/600
Battery weight	kg	980
Brake type		Electromagnetic

Why choose us


         BANYITONG SCIENCE AND TECHNOLOGY DEVELOPING CO., LTD.

     Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".

Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

As our logo, MiMA has the deep meaning: "Minimum Space, Maximum Benefit", we believe that urban logistics is a mega trend, that needs new, smart and saving space solutions, we have those solutions already today.

Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service.

Our workshop and warehouse



Many of our models are in stock, for more details please feel free to contact us.

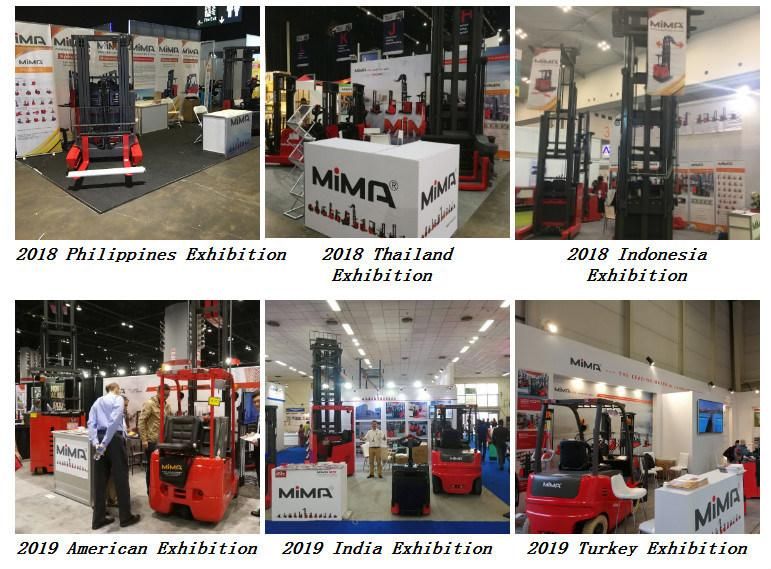

Exhibition
