Agv 3-Way Electric Pallet Stacker with 1000kg Capacity AC System Narrow Aisel Pallet Stacker
Banyitong Science & Technology Developing Co., Ltd.- Cab Location：Not Adjustable
- Type：Stacker
- Power：AC Motor
- Load Capacity：1T - 5T
- Fuel：Electric
- Load center：500mm
Base Info
- Model NO.：MC
- Lift height：7500mm
- Condition：New
- Drive Motor：AC Motor
- AC Controller：Curtis
- Max. Lifting Height：9000m
- Max. Loading Capacity：1500kg
- Warranty：12months
- Lift Motor：AC Motor
- Operation Type：Stand on
- Transport Package：Standard Packing
- Specification：SGS, ISO
- Trademark：MiMA
- Origin：China
- HS Code：8427109000
- Production Capacity：1000 Units,Year
Description
3 way forkliftModel MC10 MC15 Operate type stand on stand on Rated capacity kg 1000 1500 Load center mm 500 500 Wheelbase mm 1605 1700 Service weight(incl. battery) kg 4800 5520 Wheel type PU PU Wheel size,load side mm Φ140*100 Φ140*127 Wheel size,drive side mm Φ380*165 Φ380*165 Balance wheel mm Φ204*76 Φ204*76 Number of wheels,front/rear(x=drive) 4/1x+2 4/1x+2 Mast closed height mm 2800 2823 Free lifting height mm 1690 1745 Lifting height mm 4500 4500 Mast height with backrest mm 5584 5555 Overhead guard height mm 2260/2300 2260/2300 Overall length mm 2906 2985 Overall width mm 1450 1550 Fork size mm 1000/125/50 1200/125/50 Turning radius mm 1880 1980 Driving motor(S2-60min) kw 5.5AC 5.5AC Lifting motor(S3 15%) kw 8.6AC 8.6AC Battery voltage/capacity V/Ah 48/400 48/450 Battery weight kg 675 740 Brake type Mechanical Mechanical Steering system EPS EPS
Why choose us
BANYITONG SCIENCE AND TECHNOLOGY DEVELOPING CO., LTD.
As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions.
Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

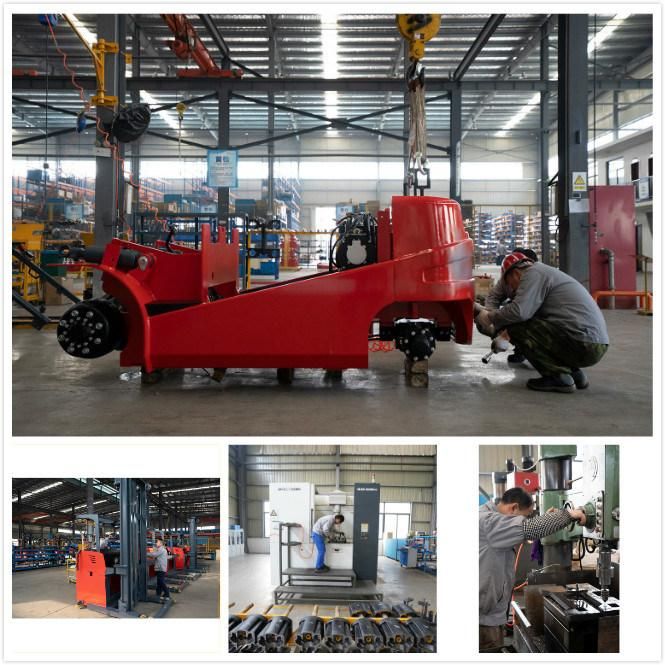

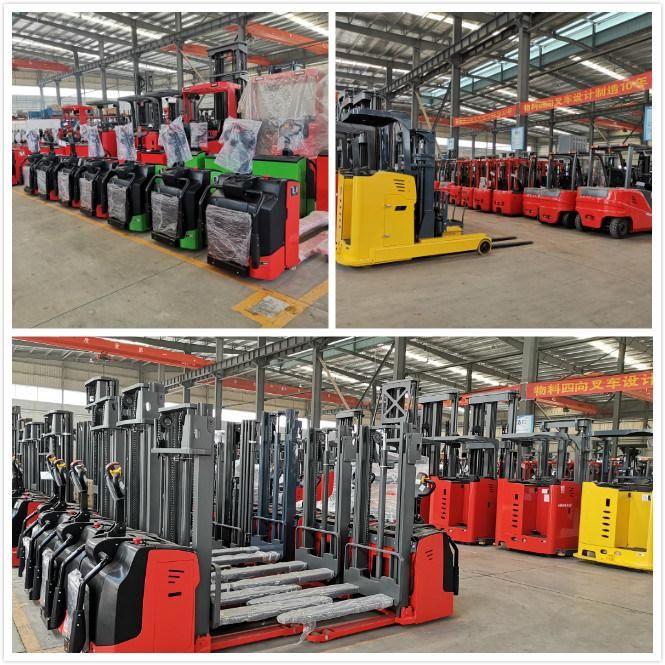

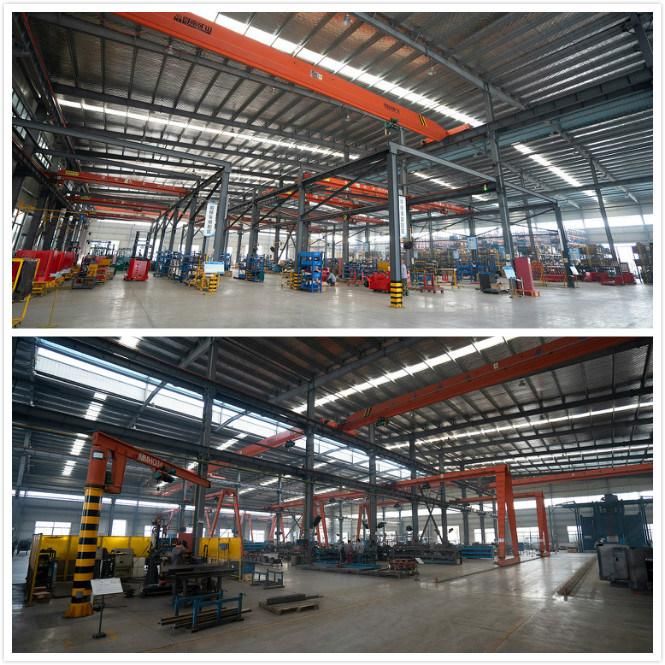

Our workshop and warehouse
Many of our models are in stock, for more details please feel free to contact us.
Exhibition
