Fork Forklift Trucks 3t Lifting Machine From China Forklift Factory
Jinan Shine International Trade Co., Ltd.- Cab Location：Not Adjustable
- Type：LPG Forklift
- Power：LP Gas Engine
- Load Capacity：1T - 5T
- Fuel：Gasoline
- Load center：500mm
Base Info
- Model NO.：FL30
- Lift height：3000~5000mm
- Condition：New
- Free Lifting Height：135mm
- Fork Size：1070*125*45mm
- Mast Tilt Angle：6,12 Degree
- Min. Ground Clearance：120mm
- Overhead Guard Height：2090mm
- Front Overhang：475mm
- The Turning Radius：2400mm
- Transport Package：Nude Package
- Trademark：SNSC
- Origin：China
- HS Code：84270290
- Production Capacity：100 Sets Per Month
Description
SpecificationsUnit FL30 Features Power type LP/Gasoline Rated load kg 3000 Load center mm 500 Lifting height mm 3000 Free lifting height mm 145 Fork size L*W*T mm 1070*125*45 Mast tilt angle Front/Rear Performance Max. travelling speed loaded km/h 20 Max. lifting speed loaded mm/s 470 Max. traction force loaded KN 18 Max. climbing ability % 20 Dimension Overall length without fork mm 2695 Overall width mm 1230 Mast lowered height mm 2055 Mast extended height mm 4265 Chassis Tyre Front 28*9-15-12PR Rear 6.50-10-10PR Wheel base mm 1700 Wheel thread Front/Rear mm 1000/970 Weight(without load) kg 4350 Powertrain Battery V/AH 12/90 Engine Model nissan K25 Rated power km/r.p.m 37.4/2300 Rated torque Nm/r.p.m 176.5/1600 No. cylinder 4 Bore x stroke mm 89X100 Displacement L 2.488 Fuel tank capacity L 70 Transmission/shift 1/1 automatic transmission Operation pressure Mpa 17.5

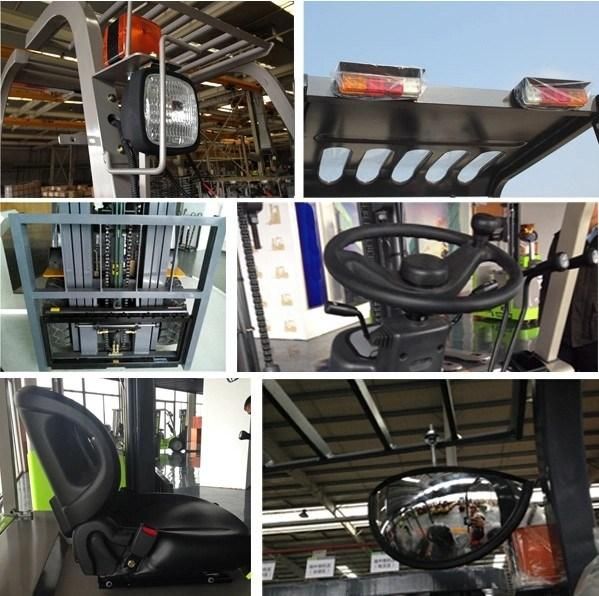

Details of 3Ton LPG Forklift FL30
3Ton LPG Forklift Common Optionals:
Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner, duplex/ triplex full free mast

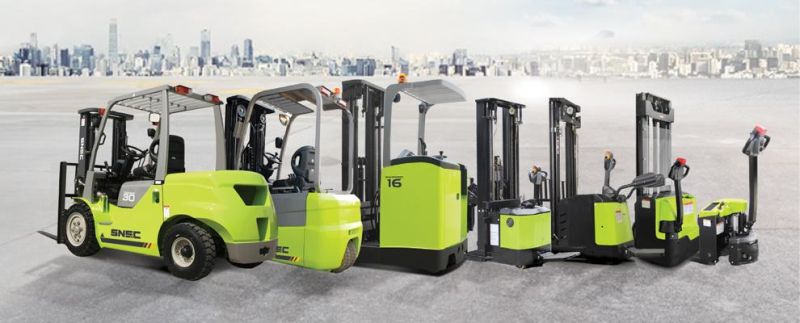

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.
We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."
We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
Details of 3Ton LPG Forklift FL30
3Ton LPG Forklift Common Optionals:
Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner, duplex/ triplex full free mast
Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.
We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."
We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
