• Model NO.：FD20
• Lift height：3000~5000mm
• Condition：New
• Free Lifting Height：135mm
• Fork Size：1070*122*40mm
• Mast Tilt Angle：6,12 Degree
• Min. Ground Clearance：110mm
• Overhead Guard Height：2090mm
• Front Overhang：473mm
• Height From Seat to Overhead Guard：1005mm
• Transport Package：Nude Package
• Trademark：SNSC
• Origin：China
• HS Code：84270290
• Production Capacity：100 Sets Per Month

SpecificationsUnitFD20FeaturesPower type  DieselRated load kg2000Load center mm500Lifting height mm3000Free lifting height mm135Fork size L*W*Tmm1070*122*40Mast tilt angleFront/RearPerformanceMax. travelling speedloadedkm/h19Max. lifting speedloaded/emptymm/s490/510Max. traction forceloadedKN17Max. climbing ability %20DimensionOverall lengthwithout forkmm2570Overall width mm1160Mast lowered height mm1990Mast extended height mm4000ChassisTyreFront 7.00-12-12PRRear 6.00-9-10PRWheel base mm1600Wheel threadFront/Rearmm970/970Weight(without load) kg3350PowertrainBattery V/AH12/90EngineModel XC490BPGRated powerkm/r.p.m37/2650Rated torqueNm/r.p.m148/2000No. cylinder 4Bore x strokemm90X100Displacement L2.54Fuel tank capacity L60Transmission/shift  1/1 automatic transmissionOperation pressure Mpa17.5

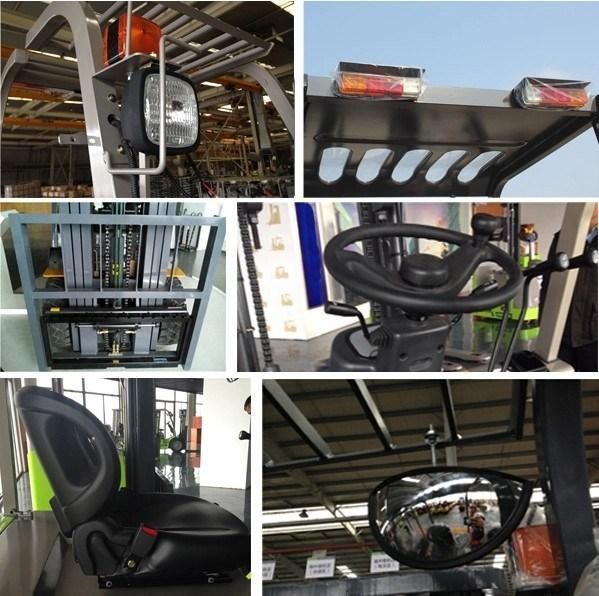

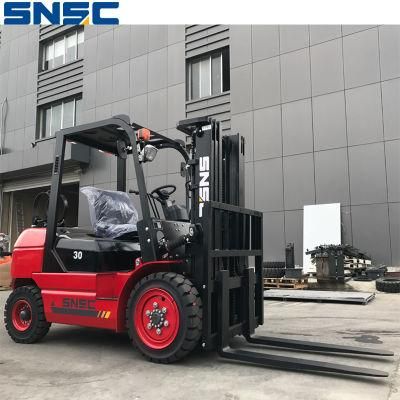

Details of 2Ton Diesel Forklift FD20

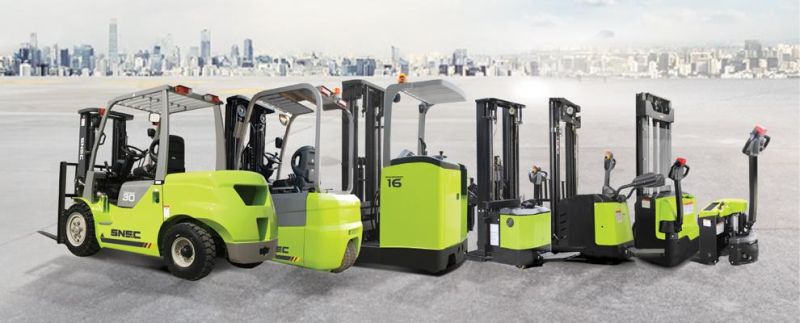

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).

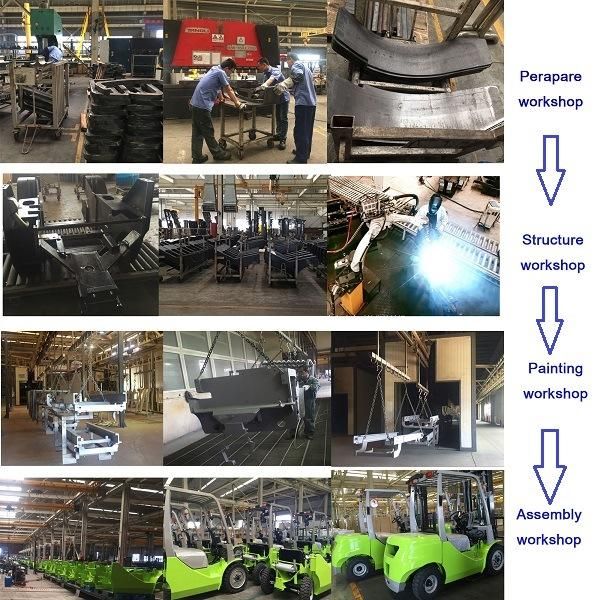

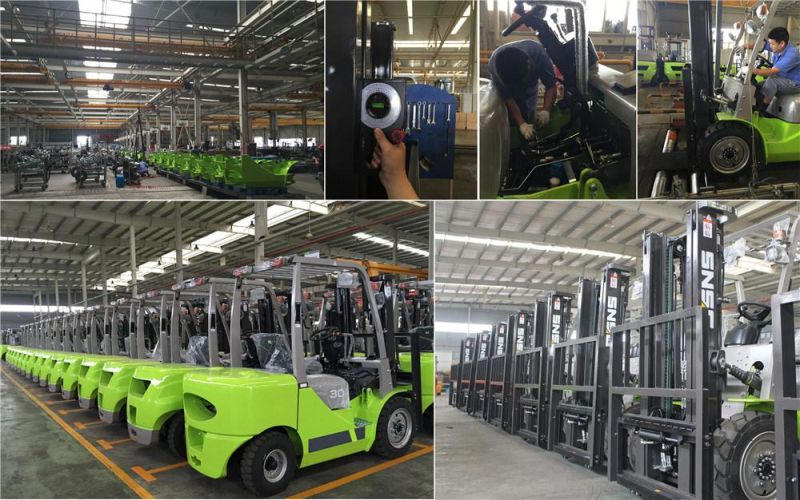

Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.

We regarde  "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."



We are dedicated to providing forklift VIP solution to meet all kinds of work condition  which means SNSC forklift can be customized.

Your satisfaction is our ultimate goal, SNSC beyond your needs.

We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
