• Lift height：>5000mm
• Condition：New
• Certificate：ISO9000
• Capacity：1000kg-1500kg
• Material：Steel
• Style：Double Faced
• Entry Type：2-Way
• Transport Package：Nude Package
• Specification：2293*1170mm
• Trademark：MIMA
• Origin：China
• HS Code：8427109000
• Production Capacity：5000 Units , Year

  Electric reach truck  Model   MF10  MF12  MF15D  Load capacity         kg  1000  1200  1500  Load center mm  500  500  500  Lifting height     mm  3000  3000  3000  Mast closed heightmm  1980  2080  2080  Tilting angle (forward- backward)α/β(°)  /  3/5  3/5  Wheel type   PU  Load wheel sizemm  Φ210*85 Φ210*85  Φ210*85  Drive wheel sizemm  Φ230*110 Φ230*110  Φ230*110  Balance wheel sizemm  Φ180*76 Φ180*76  Φ180*76  Reach strokemm   550  600  690  Fork sizemm  920*100*35  1070*100*35  1070*100*35  Fork outside widthmm  220-610  222-750  222-750  Overall lengthmm  1868  2078  2078  Overall width     mm  1000  1000  1000  Overall height fork raised(with backrest)mm  3925  3960  3960  Overhead guard height mm  2250  2250  2250  Turning radiusmm  1394  1492  1580  Aisle width for pallet 1000*1200mmmm  2429  2502  2532  Aisle width for pallet 800*1200mmmm  2471  2537  2547  Driving speeds (Loaded/ Unloaded)km/h  6/7  7/8  7/8  Lifting speeds (Loaded/ Unloaded)mm/s  110/160  150/190  150/190  Driving motor(S2-60min)kw  1.5  2.3  2.3  Lifting motor(S3-15%)kw  2  3.5  3.5  Total weight( with battery)kg  1750  2000  2100  Brake type   Mechanical  Battery voltageV/Ah  24/280   24/350  24/420  Steering system   EPS

Why choose us

BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO., LTD.
 Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".

Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service. We are looking forward to better cooperation all over the world.

Our workshop and warehouse




Many of our models are in stock, for more details please feel free to contact us.

Package and delivery

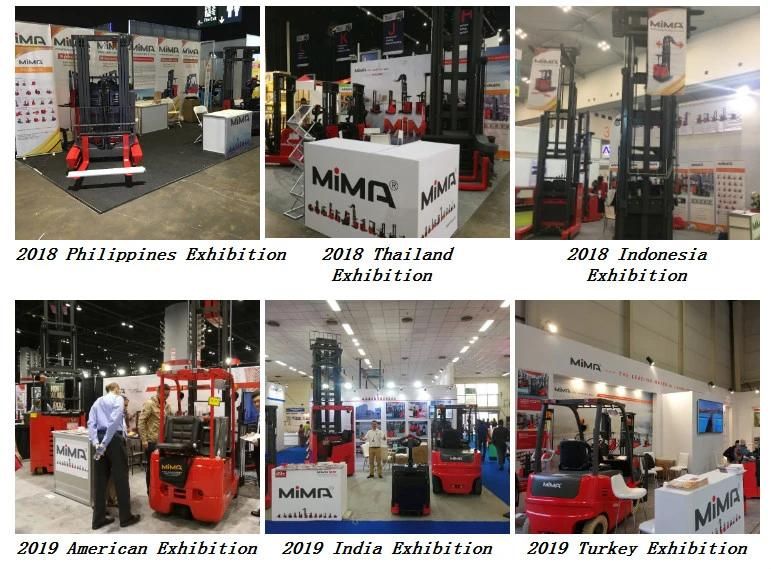

Exhibition
