• Lift height：110mm
• Condition：New
• Controller Brand：Curtis
• Drive Motor：AC Motor
• Max. Load Capacity：6000kg
• Operation Type：Stand on
• Working Time：7 Hours
• Charging Time：7 Hours
• Warranty：12 Months
• Color：Accept Customized Color
• Battery Brand：Chinese Brand or Foreign Brand
• Lift Motor：DC Motor
• Transport Package：Standard Packing
• Specification：CE
• Trademark：MIMA
• Origin：China
• HS Code：84271090
• Production Capacity：1000 Units,Year

Basic Info.

Lift height 110mm Condition New Controller Brand Curtis Drive Motor AC Motor Max. Load Capacity 6000kg Operation Type Stand on Working Time 7 Hours Charging Time 7 Hours Warranty 12 Months Color Accept Customized Color Battery Brand Chinese Brand or Foreign Brand Lift Motor DC Motor Transport Package Standard Packing Specification CE Trademark MIMA Origin China HS Code 84271090 Production Capacity 1000 Units/Year

Product Description

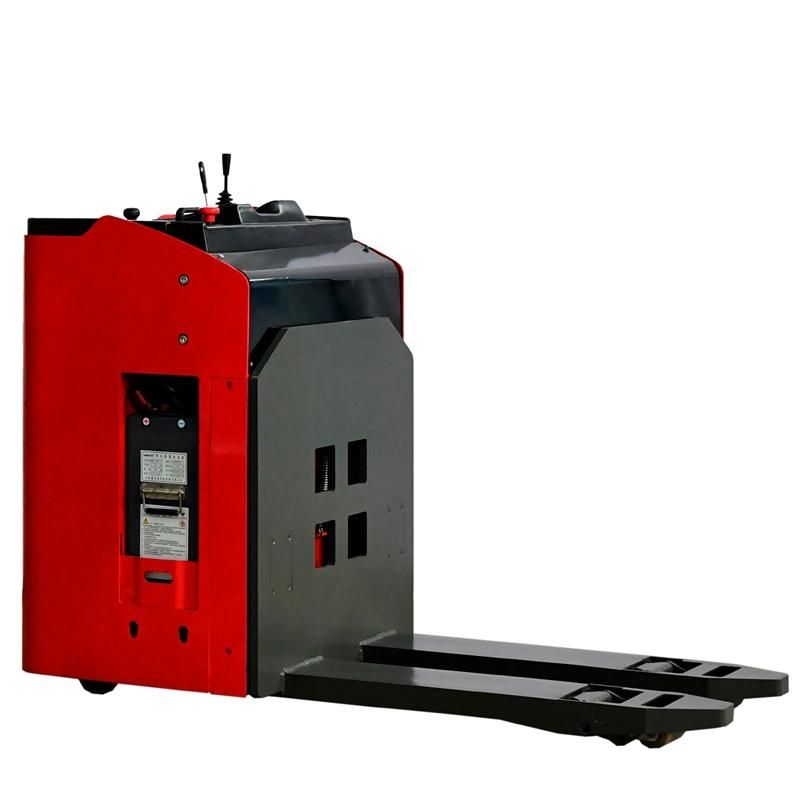

 Factory Direct Powered Pallet Truck 6000Kgs
 Procut details
 MEB60
Load Capacity:6000kg

Main Features:
1. Eps steering, comfortable .
2.Steering operation, more convenience.
3.Slite battery, easy to change battery
4. Limited turning speed, protect the driver's security
5.AC driving motor, no carbon brush, free-maintainance, low noisy

Options :
1. Fork can customized, add length and width
2. Import battery ...


.









Brand		MIMA
Model		MEB60
Power type		Electric
Operation type		Stand on
Service weight(incl. battery)	kg	1650
Rated capacity	kg	6000
Load centre	mm	600
Lift height	mm	110
Fork size	mm	1200*235*86
Fork outside width	mm	715
Turning radius	mm	1890
Aisle width for pallet 800×1200mm	mm	2330
Aisle width for pallet 1000×1200mm	mm	2245
Driving speed	km/h	5/6
Lifting speed	mm/s	18/35
Lowering speed	mm/s	65/10
Brake type		Electromagnetic
Steering system		EPS

  Company Introduction     BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD.
 Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".

Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

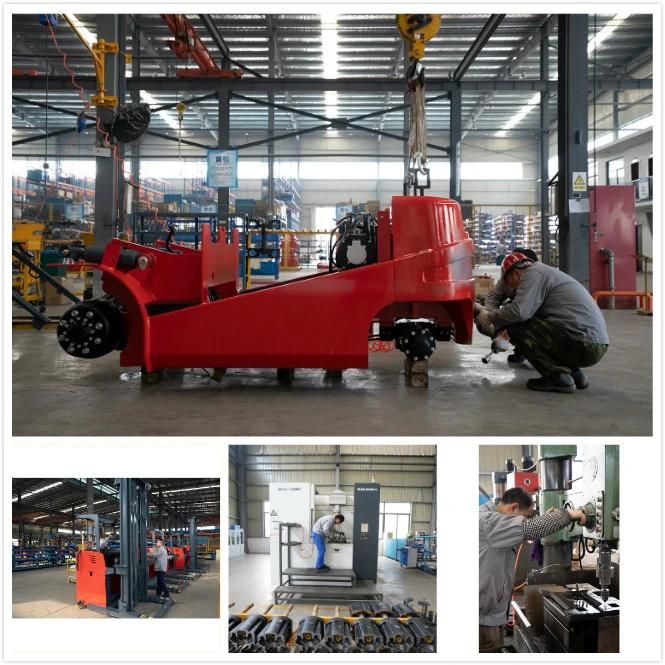

Our workshop and warehouse
                Many of  our models are in stock, if you want to know more details, please feel free to contact us. Exhibition
