Electric Forklift Truck Seated Type
Banyitong Science & Technology Developing Co., Ltd.- Type：Electric Forklift
- Power：AC Motor
- Load Capacity：1T - 5T
- Load center：500mm
- Lift height：3000~5000mm
- Condition：New
Base Info
- Controller Brand：Curtis
- Drive Motor：AC Motor
- Certificate：Ce
- Max. Lifting Height：4500mm
- Transport Package：Standard Packing
- Specification：ISO9001
- Trademark：MIMA
- Origin：China
- HS Code：84271090
- Production Capacity：4000 Units,Year
Description
Description
Model No. TKA10 TKA15 Standard Power type Battery Battery Operate type Seated Seated Rated capacity Q(kg) 1000 1500 Load center C(mm) 500 500 Wheel Wheel type-front/rear Solid rubber / Polyurethane Front wheel φ285×100 φ305×140 Rear wheel φ230×110 φ280×135 Number of weels -front/rear (X=Drive wheel) 2 / 1X 2 / 1X Dimension Tilt of fork forward/backward α/β(º) 2 / 4 2 / 4 Lifting height h1(mm) 3000 3000 Height--free Lift h2(mm) / / Mast closed height h3(mm) 1995 2065 Mast extended height h4(mm) 3530 3560 Overhead guard height h6(mm) 1965 1965 Seat height h7(mm) 930 930 Mast min. ground clearance h8(mm) 90 80 Min. ground clearance-vehicle body h9(mm) 90 90 Overall Length 11(mm) 2330 2415 Length-to Fork Face 12(mm) 1410 1495 Wheelbase y(mm) 975-990 996-1018 Front overhang x(mm) 168 175 Overall width b1/b2(mm) 912 1010 Tread front/rear b3/b4(mm) 804 / - 870 / - Fork dimensions mm 920*100*35 920*100*35 Fork outside width b5(mm) 220-620 220-680 Aisle width for pallet 1000*1200 Ast(mm) 2760 2845 Aisle with for pallet 800*1000 Ast(mm) 2870 2960 Trurning radius Wa(mm) 1255 1325 Function Driving speed -load/unload km/h 6/7 6/7 Lifting speed -load/unload mm/s 150/190 125/260 Lowering speed -load/unload mm/s 200/130 200/210 Max. gradeability -load/unload % 8/10 8/10 Powerr Driving motor type AC AC Driving motor (S2 60) kw 1.5 2.3 Lifting motor type DC DC Lift motor (S3 15%) kw 2 3.5 Battery V/AH V/AH 24/300 24/480 Weight Battery kg 277 376 Service Weight kg 1700 2250 Axle capacity with full load,drive side/load side kg 335/2365 Steering Steering type EPS Brake type Hydraulic + Electromagnetic
Why choose us

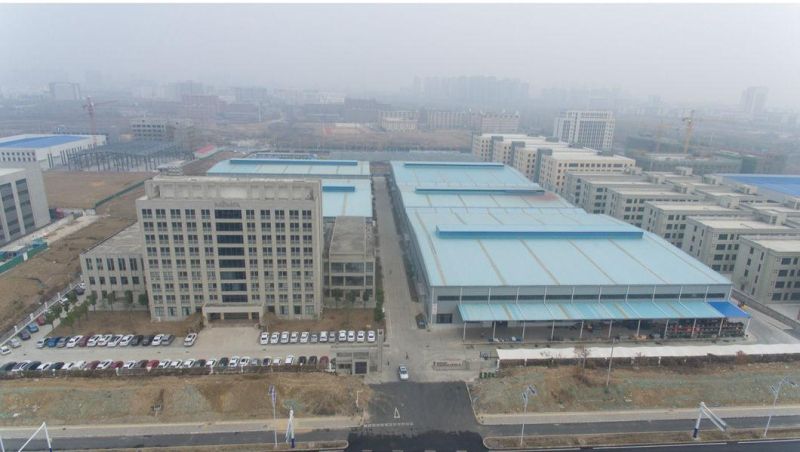

BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO., LTD.
Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".
Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.
Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service. We are looking forward to better cooperation all over the world.

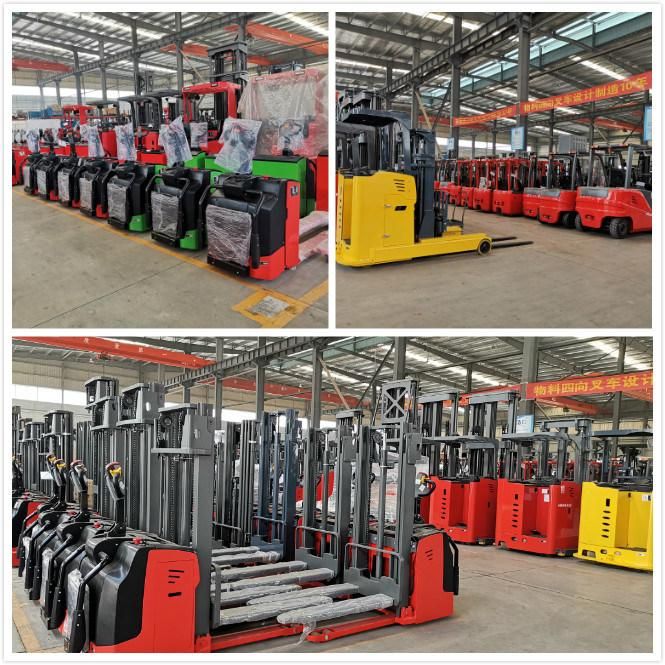

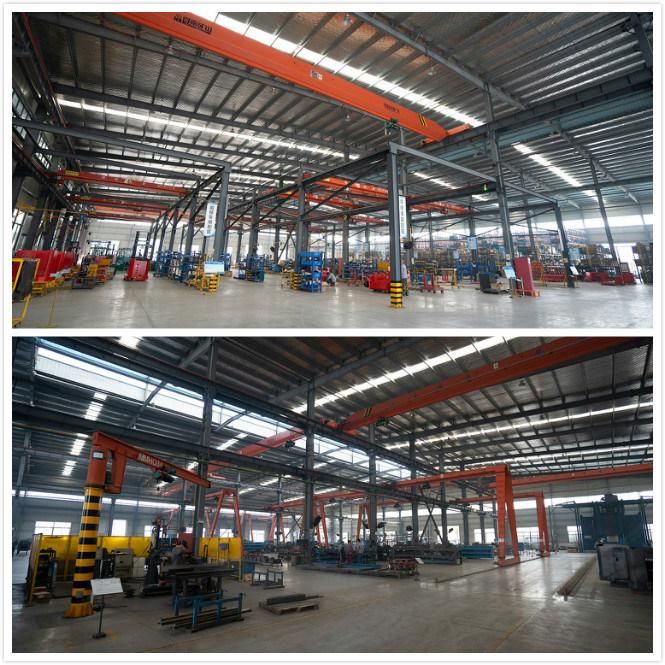

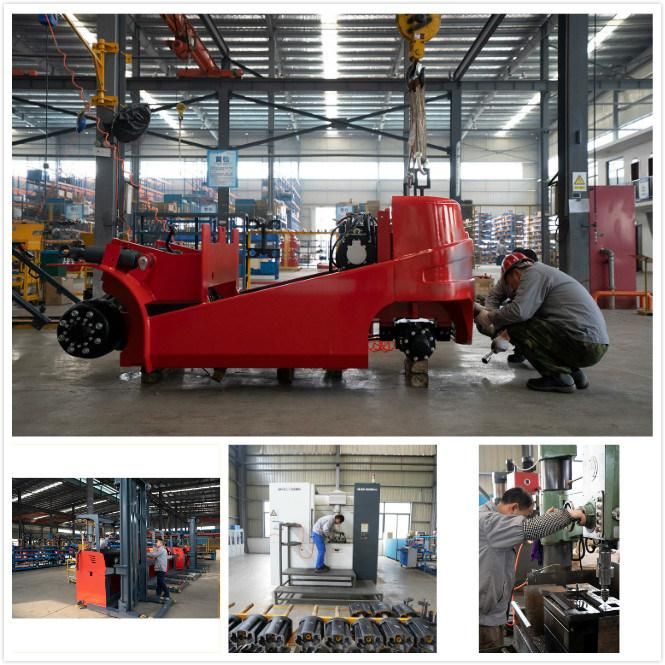

Our workshop and warehouse
Many of our models are in stock, for more details please feel free to contact us.
Exhibition
