• Model NO.：FD30
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070mm*125mm*45mm
• Weight：4380kg
• Engine：Isuzu
• Wheelbase：1700mm
• Max. Lifting Height：3000mm
• Rated Power：34.3kw,2500rpm
• Ground Clearance   ：120
• Truck Weight：4380kg
• Transport Package：Container
• Specification：2705mm*1225mm*2140mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：1000sets,Month

Manufacturer   LTMGModel Power shift T/MFD30Manual shift T/MFD30Load capacity  kg3000Load center  mm500Power unit   Diesel  Operator type   Driver/seat Tire type   PneumaticWheel Front/rear 2/2Max. lifting height   mm3000Free lift  mm150Fork size                     L*W*Tmm1070*125*45Tilt range  Mast forward/backward deg6/12Overall length(without fork)  mm2705Total width  mm1225Mast height (fork lowering)  mm2075Overall height fork raised With backrest                                    mm4250Height to head guard mm2140Turning radius(outside)          mm2445Front face of fork to front axle  mm480Min. right angle stacking aisle without load length&clearancemm2925Speed Max Travelling full/no loadkm/h18/19.5Lifting full/no load                mm/s450/500Lowering full/no load      mm/s450/450Max.drawbar pullPower shift T/M full/no load        kg1500/1000Manual shift T/M full/no load kg1550/1000Gradeability at 1.6km/h Power shift T/M full/no load %18/20Manual shift T/M full/no load %18/20Truck weight kg4380Weight  distribution Full load front/rear            kg6490/890No load front/rear           kg1670/2700Tires Numberfront/rear2/2Modelfront axle 28x9-15-12PRrear axle6.50-10-10PRWheelbase  mm1700Tread Front/rearmm1000/970Ground clearance   At lowest point(mast)                        mm120Framemm135Brake Service  brake Hydraulic-foot pedal  Parking brake Mechanical-hand lever Battery   Voltage/capacityV/AH12/80Engine                                         Model ISUZU C240Rated powerkw/rpm34.3/2500Rated torqueN.m/rpm138/1800Number of cylinders 4PlacementL2.369Fuel tank capacityL70Transmission                             Speed forward/backward                  Power shift T/M
Manual shift T/M              1-1 power shift T/M
2-2 manual shift T/M

Product Features
1.Original Isuzu or Mitsubishi engines,high quality compliant with worldwide stage IIIA emission standard.The powerful engine ensures LTMG forklift truck high handing performance.
2.The standard LED lamps and warning lights make it safer,more energy efficient and create better working condition.
3.Thicker reinforcing plate ensures the safety and efficiency.
4.New designed overhead guard protective device prevent the sudden accidents.
5.Bigger and non-slip step make the operating convenient and safe.

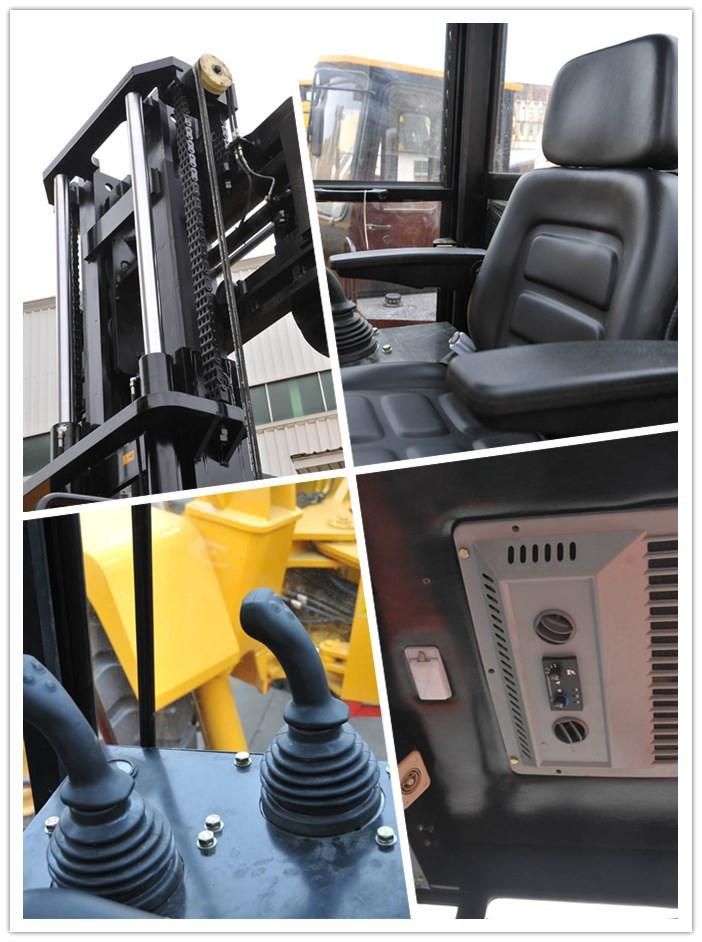

Details

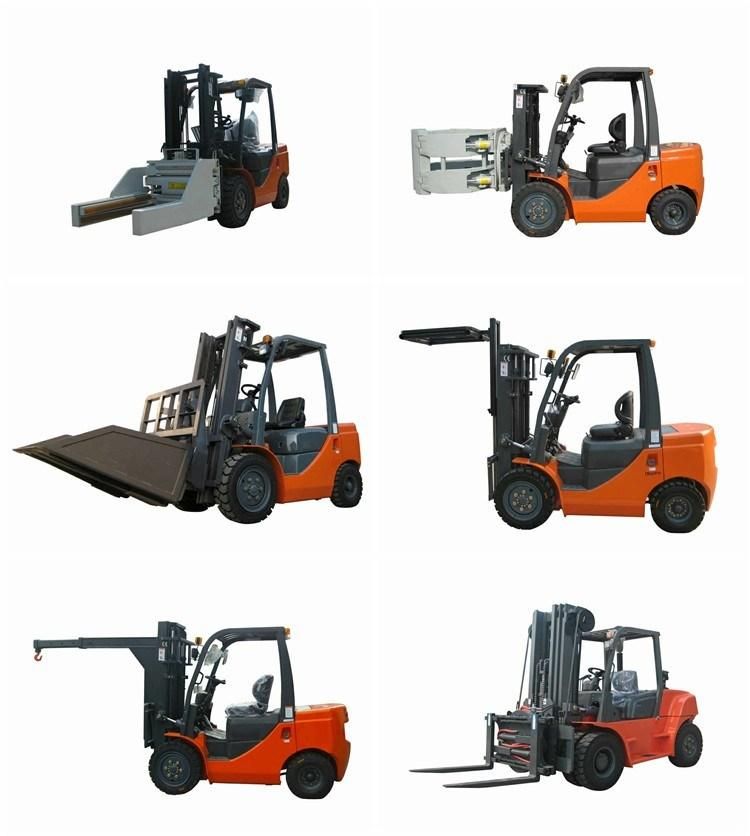

Attachment


Company Information



Customer&Exhibition

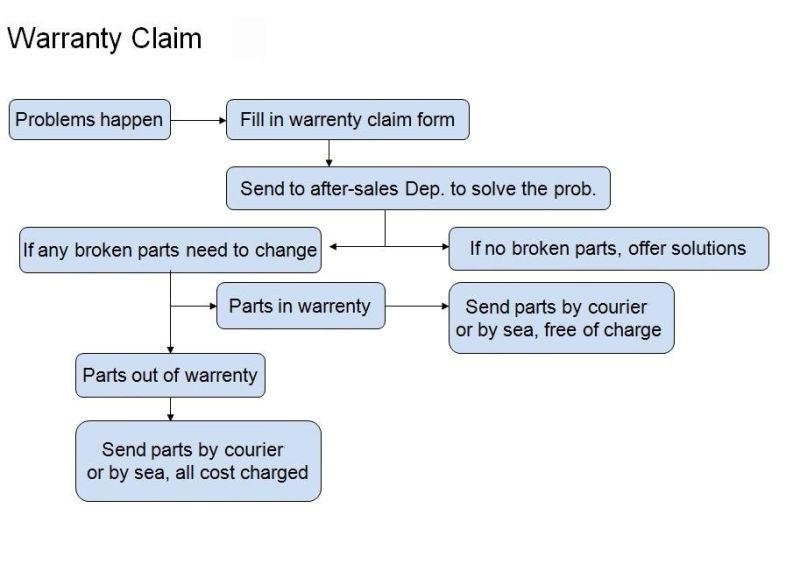

After sales service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
