Ltmg New Price of Forklift 2.5 Tton 4.5 Ton 8 T 8 Ton Diesel Forklift with White Environmental Protection Solid Tire

XIAMEN LTMG CO., LTD.
  • After-sales Service：1 Year or 2000 Working Hours
  • Warranty：1 Year or 2000 Working Hours
  • Cab Location：Not Adjustable
  • Type：Powered Pallet Truck
  • Power：Diesel Engine
  • Load Capacity：2.5 Ton

Base Info

  • Fuel：Diesel
  • Load center：500mm
  • Lift height：3000~5000mm
  • Condition：New
  • Max. Lifting Height：3000mm
  • Fork Size：1070mm*120mm*40mm
  • Weight：3790kg
  • Rated Power：35.4kw,2500rpm
  • Wheelbase：1600mm
  • Overall Length(Without Fork) ：2595mm
  • Ground Clearance：110mm
  • Transport Package：Container
  • Specification：2595mm*1150mm*2070mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：84272090
  • Production Capacity：800sets,Year

Description

Model                                   Power shift T/M         FD30Manual shift T/M       Load capacity                        kg3000Load center  mm500Power unit   DieselOperator type  Driver/seat Tire type      Pneumatic Wheel  Front/rear 2/2Max. lifting height                   mm3000Free lift                            mm160Fork size             L*W*Tmm1070*120*40Tilt range Mast forward/backward             deg6°/12°Overall length(without fork)     mm2595Total width   mm1150Mast height (fork lowering)    mm1995Overall height fork raised      With backrest                             mm4030Height to head guard              mm2120Turning radius(outside)    mm2240Front face of fork to front axle mm450Min. right angle stacking aisle without load length&clearance  mm2690SpeedMax Travelling      full/no load km/h17/19Lifting           full/no load mm/s550/580Lowering      full/no load    mm/s450/550Max.drawbar pull                  Power shift T/M    full/no load                                      kg1670/830Manual shift T/M  full/no load    kg1700/830Gradeability at 1.6km/h         Power shift T/M    full/no load%23/18Manual shift T/M  full/no load%18/18Truck weight  kg3670Weight  distribution            Full load   front/rearkg5410/760No load    front/rearkg1430/2240Tires                                      Numberfront/rear2/2Modelfront axle 7.00-12-12PRrear axle6.00-9-10PRWheelbase                              mm1600Tread                                              Front/rearmm970/970Ground clearance                 At lowest point(mast)                 mm110Framemm115Brake                                           Service  brake Hydraulic-foot pedal  Parking brake Mechanical-hand lever Battery                                         Voltage/capacityV/AH12/80Engine                                         Model C240Rated powerkw/rpm34.3/2500Rated torqueN.m138/1800Number of cylinders 4PlacementL2.369Fuel tank capacityL70Transmission                             Speed forward/backward   Power shift T/M  Manual shift T/M              1-1 power shift T/M
2-2 manual shiftT/M    Operating pressure Hydraulic system pressure  kg/cm²180

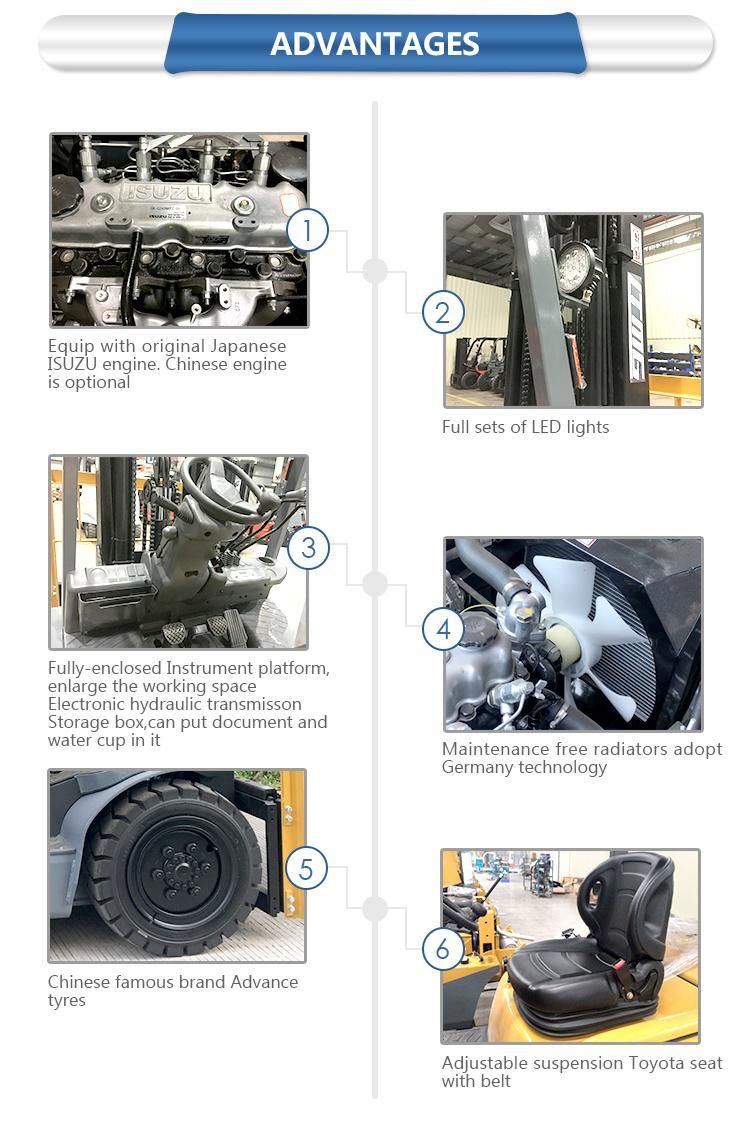

Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable:Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:Middle muffler, more environmental.
6.High technology:Maintenance free radiators adopt Germany technology.

Ltmg New Price of Forklift 2.5 Tton 4.5 Ton 8 T 8 Ton Diesel Forklift with White Environmental Protection Solid Tire


Shipping & Delivering

Ltmg New Price of Forklift 2.5 Tton 4.5 Ton 8 T 8 Ton Diesel Forklift with White Environmental Protection Solid Tire



Our Factory
Ltmg New Price of Forklift 2.5 Tton 4.5 Ton 8 T 8 Ton Diesel Forklift with White Environmental Protection Solid Tire

LTMG Customers

Ltmg New Price of Forklift 2.5 Tton 4.5 Ton 8 T 8 Ton Diesel Forklift with White Environmental Protection Solid Tire
Ltmg New Price of Forklift 2.5 Tton 4.5 Ton 8 T 8 Ton Diesel Forklift with White Environmental Protection Solid Tire


is 30 days.
