• Fuel：Diesel
• Load center：600mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1220mm*150mm*60mm
• Weight：7830kg
• Engine：Mitsubishi
• Wheelbase：2000mm
• Color：Decided by Buyer
• Rated Power：52kw,2300rpm
• Overall Length(Without Fork)：3183mm
• Free Lift：205mm
• Front Face of Fork to Front Axle：615mm
• Transport Package：Container
• Specification：3183mm*1485mm*2390mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：1000sets,Year

Model


FD50
Load capacity

kg
5000
Load center

mm
600
Power unit


Diesel
Operator type


Driver/seat
Tire type


Pnenumatic
Wheel
Front/rear

2/2
Max. lifting height

mm
3000
Free lift

mm
140
Fork size
L*W*T
mm
1220*150*60
Tilt range
Mast forward/backward
deg
6/12
Overall length(without fork)

mm
3183
Total width

mm
1485
Mast height (fork lowering)

mm
2390
Overall height fork raised
With backrest
mm
4295
Height to head guard

mm
2270
Turning raduis(outside)

mm
2865
Front face of fork to front axle

mm
560
Min. right angle stacking aisle
pallet size :1100×1100 add clearence
mm
4670
Speed
Max Travelling          full/no load
km/h
18/19
Lifting                         full/no load
mm/s
380/430
Lowering                    full/no load
mm/s
380/340
Max.drawbar pull
full/no load
kg
4500/2000
Gradeability at 1.6km/h
full load
%
25
Truck weight

kg
7830
Weight  distribution
Full  load front/rear
kg
10280/1790
No  load  front/rear
kg
3330/4500
Tires
Number
front/rear
2/2
Model
front axle
300-15-18PR
rear axle
7.00-12-12PR
Wheelbase

mm
2000
Tread
Front/rear
mm
1180/1190
Ground clearence
At lowest point(mast)
mm
100
Frame
mm
240
Brake
Service  brake

power brake
Parking brake

Mechanical-hand lever
Battery
Voltage/capacity
V/AH
2-12/80
Engine
Model

MITSUBISHI S6S
Rated power
kw/rpm
52/2300
Rated torque
N-m/rpm
248/1700
Number of cylinders

6
Displacement
L
4.996
Fuel tank capacity

L
80
Transmission
shift stage(front/rear-type)

2-1 power shift T/M
Operating pressure
Hydraulic system pressure
kg/cm²
200
Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

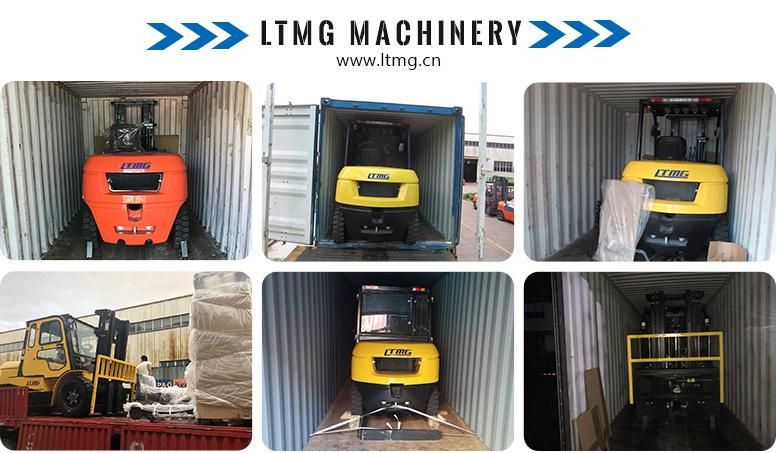

Shipping&packging



Our Customer and factory.



After sales service
LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.



FAQ

1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
