• Load center：500mm
• Condition：New
• Free Lift：155mm
• Engine：Isuzu,Xinchai
• Transmission：Hydraulic
• Service Weight：2820kg
• Wheelbase：1400
• Tilt Angle：6°,12°
• Transport Package：Nude Packing
• Specification：1500KG
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：1000,Year

Specification1Manufacturer   LTMG2Model    Power shift T/MFD153Load capacity  kg15004Load center   mm5005Power unit     diesel6Operator type    Driver/seat7Tire type   Pnenumatic8Wheel Front/rear  2/2Dimensions9Max. lifting height  mm300010Free lift  mm15511Fork size L×W×Tmm920*100*3512Tilt range Mast forward/backward deg6/1213Overall length(without fork)    mm224514Total width    mm107015Mast height ( fork lowering)  mm199516Overall height fork raised ( with backrest)  mm403017Height to head guard  mm206018Turning raduis(outside)   mm204019Front face of fork to front axle  mm39520Min. right angle stacking aisle  mm2435Performance21SpeedMax Travelling  full loadkm/h14no loadkm/h14.522Liftingfull loadmm/s440no loadmm/s50023Loweringfull loadmm/s370no loadmm/s53024Max.drawbar pull  full/no loadKg1130/69025Gradeability at 1.6km/h  full/no load%21/18weights26Truck weight   kg255027Weight
distributionfull loadfront kg3580rear kg47028no loadfront kg1110rear kg1440Chassis&Wheels29front wheel   6.50-10-10PR30rear  wheel   5.00-8-10PR31Wheelbase  mm142532Treadfront mm890rear mm90033Ground
clearenceAt lowest point(mast)  mm115Frame mm10534BrakeService  brake  Hydraulic-foot pedalParking brake  Mechanical-hand leverDrive Line35BatteryVoltage/capacity   12/8036EngineModel   ISUZU C240Rated power  kw/rpm34.3/2500Rated torque Nm/rpm138/1800Number of cylinders  4Placement L2.36937Fuel tank capacity  L5038TransmissionSpeed forward/backward  1-1 power shift T/M 39Operating pressureHydraulic system pressure Kg/cm²180

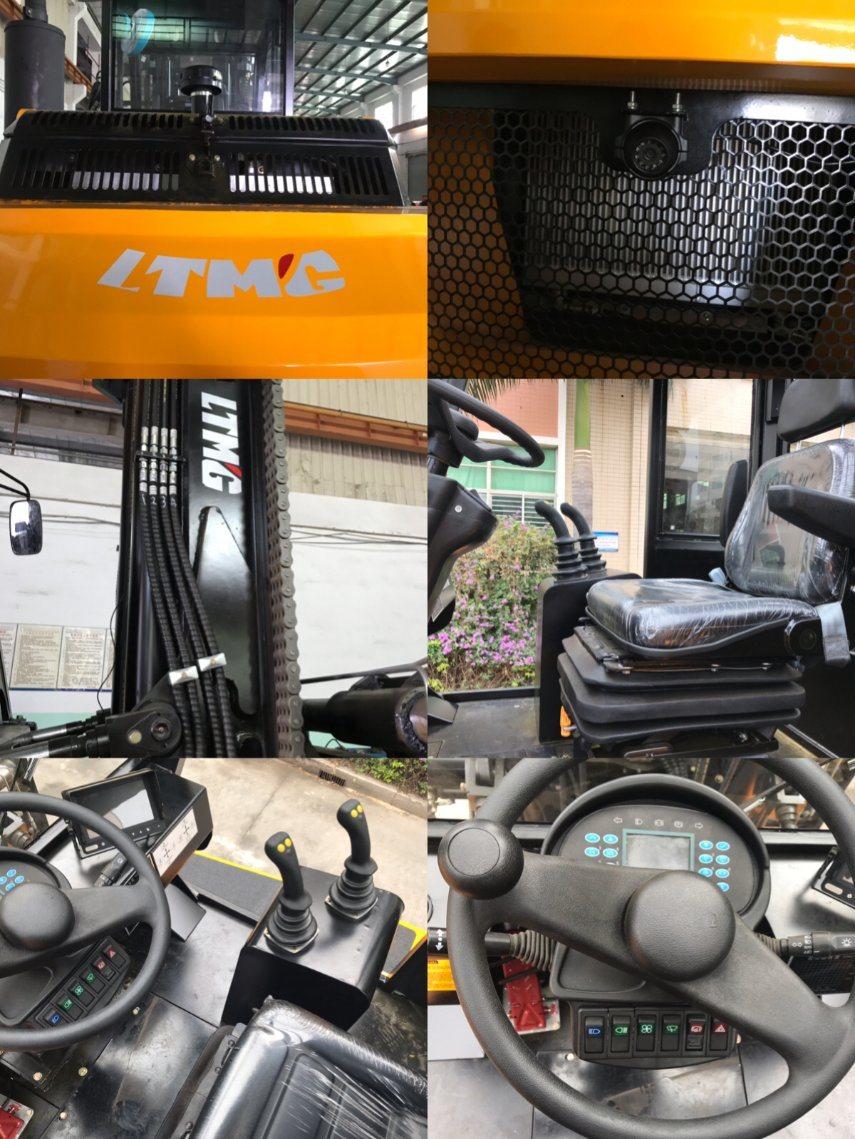

Features

1. Optional Original Isuzu C240 engine,high quality compliant with worldwide stage IIIA emission standard.The powerful engine ensures LTMG forklift truck high handing performance.

2. The standard LED lamps and warning lights make it safer,more energy efficient and create better werking condition.

3. Thicker reinforcing plate ensures the safety and efficiency.

Packing&shipping



Exhibition&Customer


Our factory


After sales service
LTMG always treat after-sale service important as the same as product quality.
LTMG grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine.With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.


FAQ

1.What  Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.

2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see the LTMG warranty policy for each model.

4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5.What  payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

6.What logistics ways we can work for shipment ?
We can ship construction machinery by various transportation tools.
(1)For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
(2)For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
(3)For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.

7.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
