• Model NO.：FD40 MINI
• Lift height：3000~5000mm
• Condition：New
• Free Lifting Height：145mm
• Fork Size：1070*150*50mm
• Mast Tilt Angle：6,12 Degree
• Min. Ground Clearance：160mm
• Overhead Guard Height：2350mm
• Front Overhang：558mm
• Height From Seat to Overhead Guard：1040mm
• Transport Package：Nude Package
• Trademark：SNSC
• Origin：China
• HS Code：84270290
• Production Capacity：100 Sets Per Month

SpecificationsUnitFD40FeaturesPower type  DieselRated load kg4000Load center mm500Lifting height mm6000Free lifting height mm145Fork size L*W*Tmm1070*150*50Mast tilt angleFront/RearPerformanceMax. travelling speedloadedkm/h18Max. lifting speedloaded/emptymm/s380/400Max. traction forceloadedKN22Max. climbing ability %20DimensionOverall lengthwithout forkmm3060Overall width mm1490Mast lowered height mm2355Mast extended height mm4257ChassisTyreFront 8.25-15-14PRRear 7.00-12-12PRWheel base mm2000Wheel threadFront/Rearmm1180/1190Weight(without load) kg6090PowertrainBattery V/AH12/90EngineModel QC 4C5Rated powerkm/r.p.m48/2300Rated torqueNm/r.p.m230/1600-1800No. cylinder 4Bore x strokemm98x115Displacement L3.47Fuel tank capacity L100Transmission/shift  2/2 automatic transmissionOperation pressure Mpa18.5

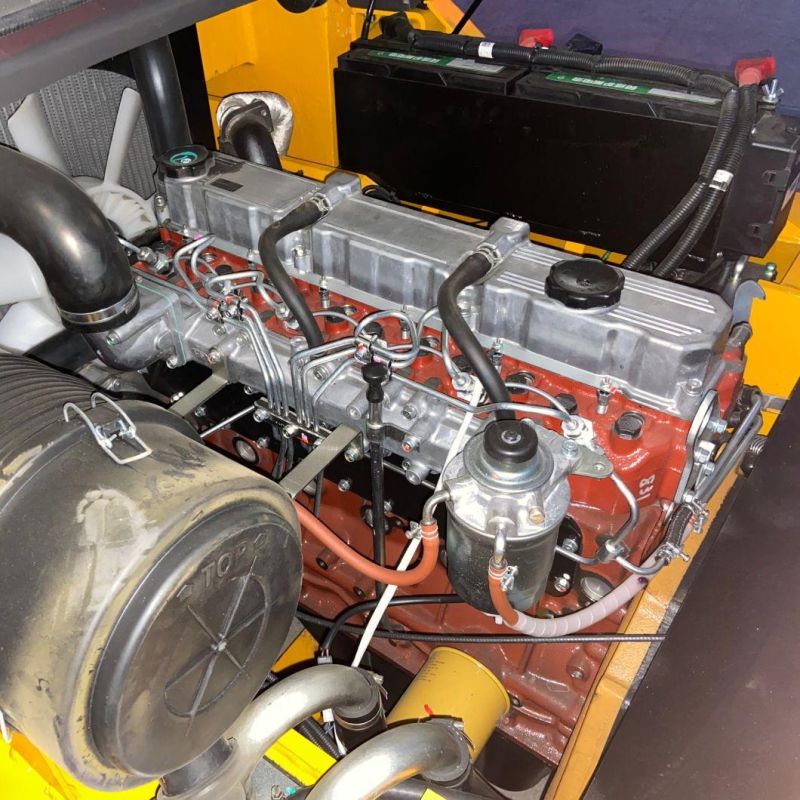

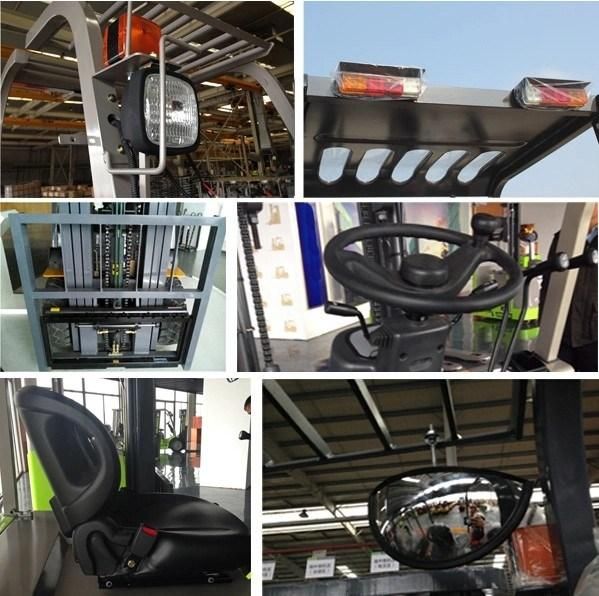

Details of 4Ton Diesel Forklift FD40


4 Ton Diesel Forklift Common Optionals:
Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner, duplex/ triplex full free mast

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).

Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.

We regarde  "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."

We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
