2ton Forklift Trucks China Lp Gasoline Fork Lfter
Jinan Shine International Trade Co., Ltd.- Cab Location：Not Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：500mm
Base Info
- Model NO.：FL20
- Lift height：3000~5000mm
- Condition：New
- Free Lifting Height：135mm
- Fork Size：1070*122*40mm
- Mast Tilt Angle：6,12 Degree
- Min. Ground Clearance：110mm
- Overhead Guard Height：2070mm
- Front Overhang：470mm
- The Turning Radius：2240mm
- Product Name：2ton Forklift Trucks China Lp Gasoline Fork Lfter
- Transport Package：Nude Package
- Trademark：SNSC
- Origin：China
- HS Code：84270290
- Production Capacity：100 Sets Per Month
Description
SpecificationsUnit FL20 Features Power type LP/Gasoline Rated load kg 2000 Load center mm 500 Lifting height mm 3000 Free lifting height mm 135 Fork size L*W*T mm 1070*122*40 Mast tilt angle Front/Rear Performance Max. travelling speed loaded km/h 19 Max. lifting speed loaded mm/s 490 Max. traction force loaded KN 17 Max. climbing ability % 20 Dimension Overall length without fork mm 2570 Overall width mm 1160 Mast lowered height mm 1990 Mast extended height mm 4024 Chassis Tyre Front 7.00-12-12PR Rear 6.00-9-10PR Wheel base mm 1600 Wheel thread Front/Rear mm 970/970 Weight(without load) kg 3350 Powertrain Battery V/AH 12/90 Engine Model nissan K25 Rated power km/r.p.m 37.4/2300 Rated torque Nm/r.p.m 176.5/1600 No. cylinder 4 Bore x stroke mm 89X100 Displacement L 2.488 Fuel tank capacity L 60 Transmission/shift 1/1 automatic transmission Operation pressure Mpa 17.5

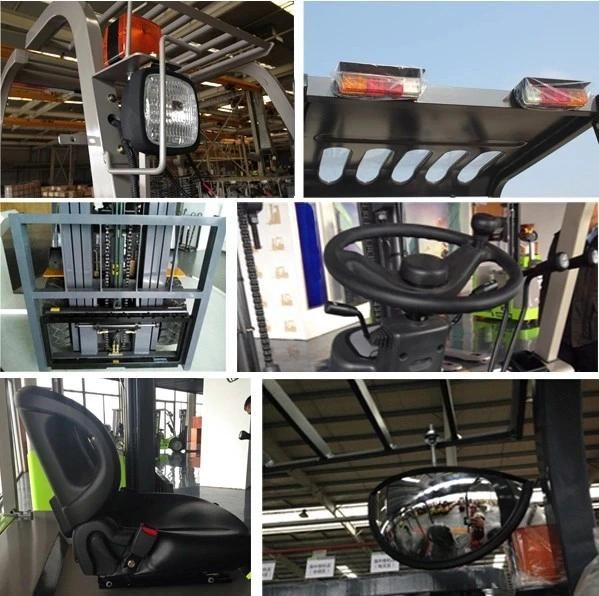

Detailed images of 2ton Forklift Trucks China Lp Gasoline Fork Lfter:

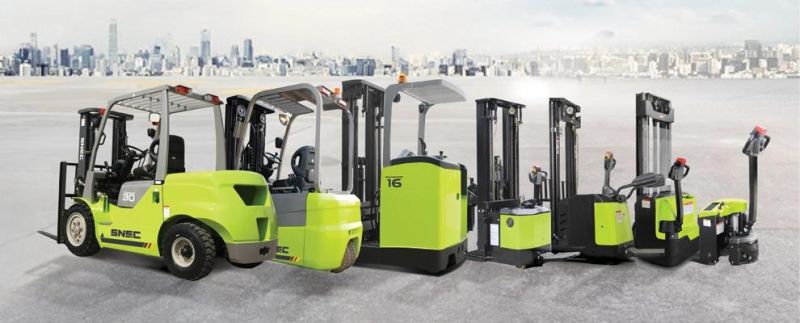

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.
We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."
We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
Detailed images of 2ton Forklift Trucks China Lp Gasoline Fork Lfter:
Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.
We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."
We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
