Fb15 Low Cost Electric Forklift Trucks From China Forklift Factory
Jinan Shine International Trade Co., Ltd.- Cab Location：Not Adjustable
- Type：Electric Forklift
- Power：AC Motor
- Load Capacity：1T - 5T
- Fuel：Electric
- Load center：500mm
Base Info
- Model NO.：FB15
- Lift height：3000~5000mm
- Condition：New
- Free Lifting Height：135mm
- Fork Size：920*100*35mm
- Mast Tilt Angle：6,12 Degree
- Min. Ground Clearance：100mm
- Overhead Guard Height：2100mm
- Front Overhang：405mm
- The Turning Radius：1850mm
- Transport Package：Nude Package
- Trademark：SNSC
- Origin：China
- HS Code：84270290
- Production Capacity：100 Sets Per Month
Description
SpecificationsUnit FB15 Features Power type battery Rated load kg 1500 Load center mm 500 Lifting height mm 3000 Free lifting height mm 135 Fork size L*W*T mm 920*100*35 Mast tilt angle Front/Rear Performance Max. travelling speed loaded km/h 12 Max. lifting speed loaded/empty mm/s 270/300 Max. climbing ability % 15 Dimension Overall length without fork mm 1990 Overall width mm 1070 Mast lowered height mm 1955 Mast extended height mm 3860 Chassis Tyre Front 6.50-10-10PR Rear 5.00-8-10PR Wheel base mm 1250 Wheel thread Front/Rear mm 890/920 Weight(without load) kg 2990 Powertrain Battery V/AH 48/450 motor Travelling kw 8 Lifting kw 7.5/10 Controller Curtis Control type 50%AC/100%AC Working pressure Mpa 14.5

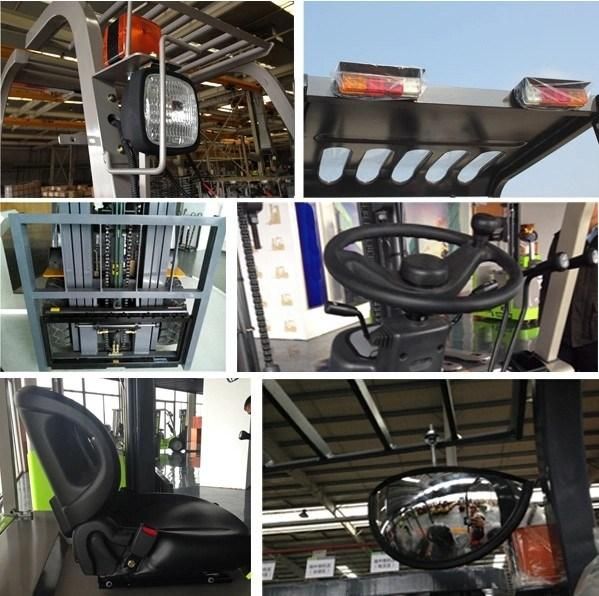

Details of 1.5Ton Electric Forklift FB15
1.5Ton Electric Forklift Common Optionals:
Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner, duplex/ triplex full free mast
Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.
We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."
We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
