• Model NO.：CPD10, 20, 30
• Fuel：Electric
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Model No：Cpd10,20,30
• Rated Loading：1000kg-3000kg
• Rated Loading Height：3000mm
• Power Type：Electric
• Battery Mode：Lead Acid Battery
• Tyre Type：Solid Tyre
• Wheel Qty：4
• Weight：1570kg
• Transport Package：Polywood Box
• Specification：1~3 ton
• Trademark：JDY
• Origin：Shandong, China
• HS Code：8427209000
• Production Capacity：100pieces Per Week

Basic Info.

Model NO. CPD10, 20, 30 Fuel Electric Load center 500mm Lift height 3000~5000mm Condition New Model No Cpd10,20,30 Rated Loading 1000kg-3000kg Rated Loading Height 3000mm Power Type Electric Battery Mode Lead Acid Battery Tyre Type Solid Tyre Wheel Qty 4 Weight 1570kg Transport Package Polywood Box Specification 1~3 ton Trademark JDY Origin Shandong, China HS Code 8427209000 Production Capacity 100pieces Per Week

Product Description

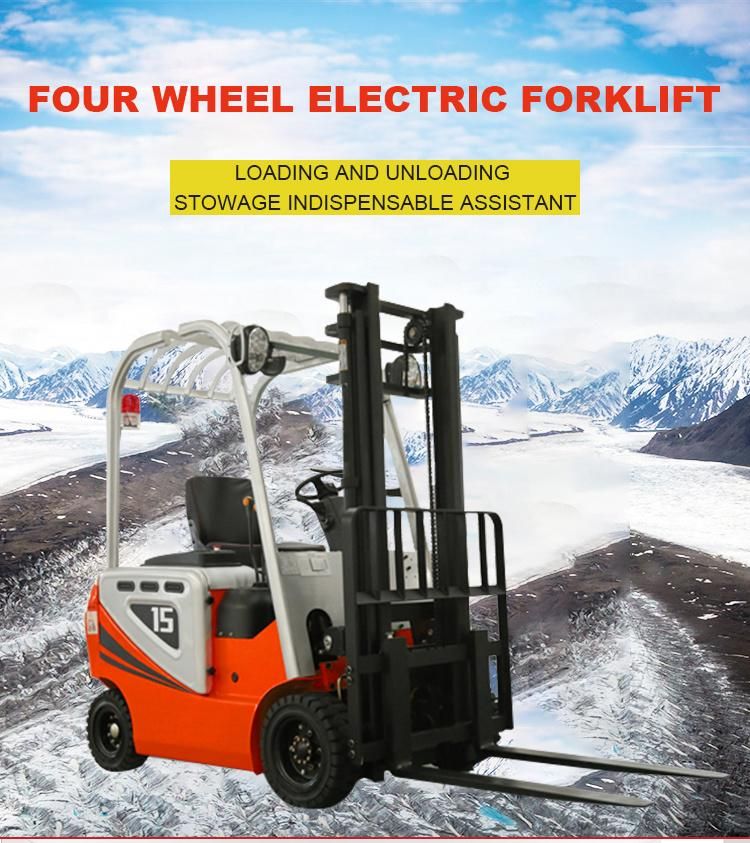

JDY CPD-10 ELECTRIC FORKLIFT
ELECTRIC FORKLIFT IS THE NEW POWER FORKLIFT.IT USES ELECTRIC,GREEN,ENVIRONMENT FRIENDLY.
IT CAN BE USED IN CLOSED WAREHOUSE,FOOD WAREHOUSE,COOLING WAREHOUSE ETC.THERE ARE 1 TON,1.5 TON,2 TON,3 TON FORKLIFT IN OUR FACTORY!

PARAMETERS:

Model NO:	CPD10-B	CPD15-B	CPD20-B
Driving Mode	seated,	seated	seated
Rated Capacity	1000kg	1500KG	2000KG
Load Center Distance	500mm	500MM	500MM
Power Mode	lead-acid battery	lead-acid battery	lead-acid battery
Wheelbase	1175mm	1430mm	1430MM
Tyre Type	solid tyre	Solid Tyre	SOLID TYRE
Wheels Qty(front/rear)	2/2pcs	2/2 PCS	2/2PCS
Front track	910mm	920MM	920MM
Rear track	865mm	898MM	898MM
Tyre(front) Type	15X4 1/2-8	18x7-10	18x7-10
Tyre(rear) Type	15X4 1/2-8	16x6-8	16x6-8
front overhang	308mm	325MM	325MM
Tilt of the mast,front/rear	5/10°	5/10°	5/10°
Height OF mast retraction	2017mm	2030MM	2030MM
Maximum lift height	3000mm	3000MM	3000MM
Height OF mast extended	3957mm	4055mm	4055MM
Overhead guard height	1920mm	2110mm	2110MM
lateral Fork Adjustment(Outside of Forks)Max/Min	970/200mm	970/200mm	1040/100MM
Forks Size(L*W*G)	30*100*920MM	35*100*920mm	35*100*920MM
Overall  length(fork excluded)	1795	2063mm	2063MM
Overall  width	1020	1096mm	1096MM
Min. turning radius	1800	2070mm	2070MM
Groud clearance Of mast	77	88mm	80MM
Ground clearance at center of wheelbase(loaden)	100mm	110mm	110MM
Width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm)	3300mm	3655mm	3655MM
Width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm)	3550mm	3855mm	3855MM
Max travel speed(loaden/unloaden)	7/8Km/H	7/8km/h	6/7KM/H
Max Ascent speed(loaden/unloaden)	220/230MM/S	180/230mm/s	120/230MM/S
Max Decline Speed(loaden/unloaden)	550MM/S	450mm/s	450MM/S
Max. grade(loaden/unloaden)	15/20%	15/20%	15/20%
Weight(with battery)	1570KG	2430kg	2710KGKG
Battery voltage / capacity	60V/100Ah	60V/150Ah	60V/180Ah
Battery weight	207KG	240kg	280KG
Drive motor power-60 minutes	2KW	4kw	5KW
Lift motor  power-15 minutes	2.2KW	3kw	3KW
Drive motor controlling mode	MOSFET/PMSM	MOSFET/PMSM	MOSFET/AC
Lifting motor controlling mode	MOSFET/PMSM	MOSFET/PMSM	MOSFET/AC
Service brake/parking brake	Hydraulic/Mechanial	Hydraulic/Mechanial	Hydraulic/Mechanial
Hydraulic system working pressure	14.5MPA	14.5Mpa	17.5MPA

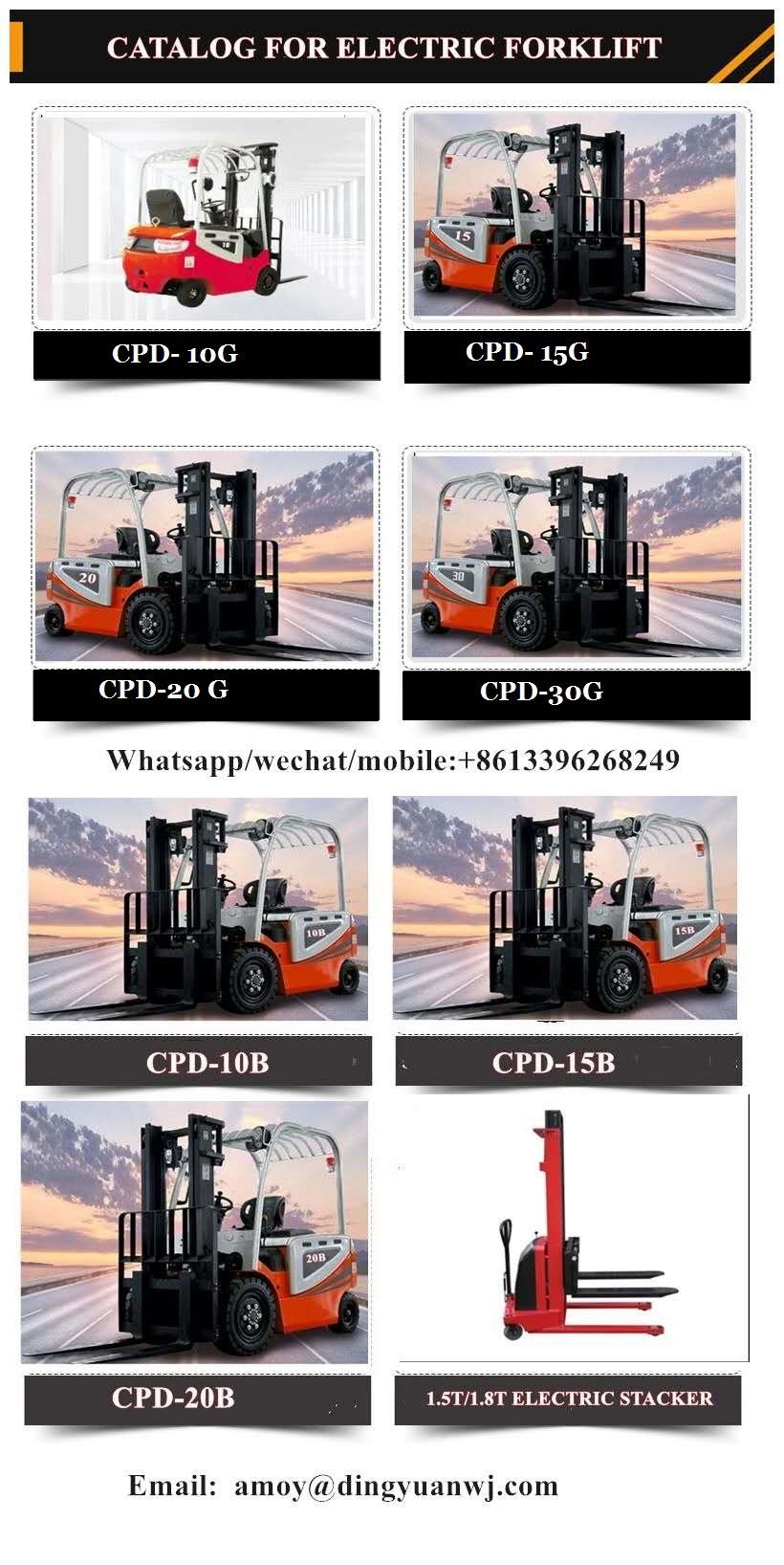

CATALOG FOR MINI ELECTRIC FORKLIFT:
