• Model NO.：FD30
• Lift height：3000~5000mm
• Condition：New
• Product Name：Forklift 4X4 Diesel 3 Ton Forklift Fork Lift 6m
• Free Lifting Height：145mm
• Fork Size：1070*125*45mm
• Mast Tilt Angle：6,12 Degree
• Min. Turning Radius：2600mm
• Min. Ground Clearance：120mm
• Overhead Guard Height：2170mm
• Height From Seat to Overhead Guard：480mm
• Front Overhang：545mm
• Overall Size：2825*1230*2170mm
• Tyre：Pneumatic Tyres
• Curb Weight：4250kg
• Battery：12V,90ah
• Transport Package：Nude Package
• Trademark：SNSC
• Origin：China
• HS Code：84270290
• Production Capacity：1000 Sets Per Month

SpecificationsUnitFD30FeaturesPower type  DieselRated load kg3000Load center mm500Lifting height mm3000Free lifting height mm145Fork size L*W*Tmm1070*125*45Mast tilt angleFront/RearPerformanceMax. travelling speedloadedkm/h20Max. lifting speedloaded/emptymm/s470/520Max. traction forceloadedKN18Max. climbing ability %20DimensionOverall lengthwithout forkmm2825Overall width mm1230Mast lowered height mm2065Mast extended height mm4260ChassisTyreFront 28x9-15-12PRRear 6.50-10-10PRWheel base mm1800Wheel threadFront/Rearmm1000/970Weight(without load) kg4250PowertrainBattery V/AH12/90EngineModel XC490BPGRated powerkm/r.p.m39/2650Rated torqueNm/r.p.m157/1980No. cylinder 4Bore x strokemm90x105Displacement L2.67Fuel tank capacity L70Transmission/shift  1/1 automatic transmissionOperation pressure Mpa17.5

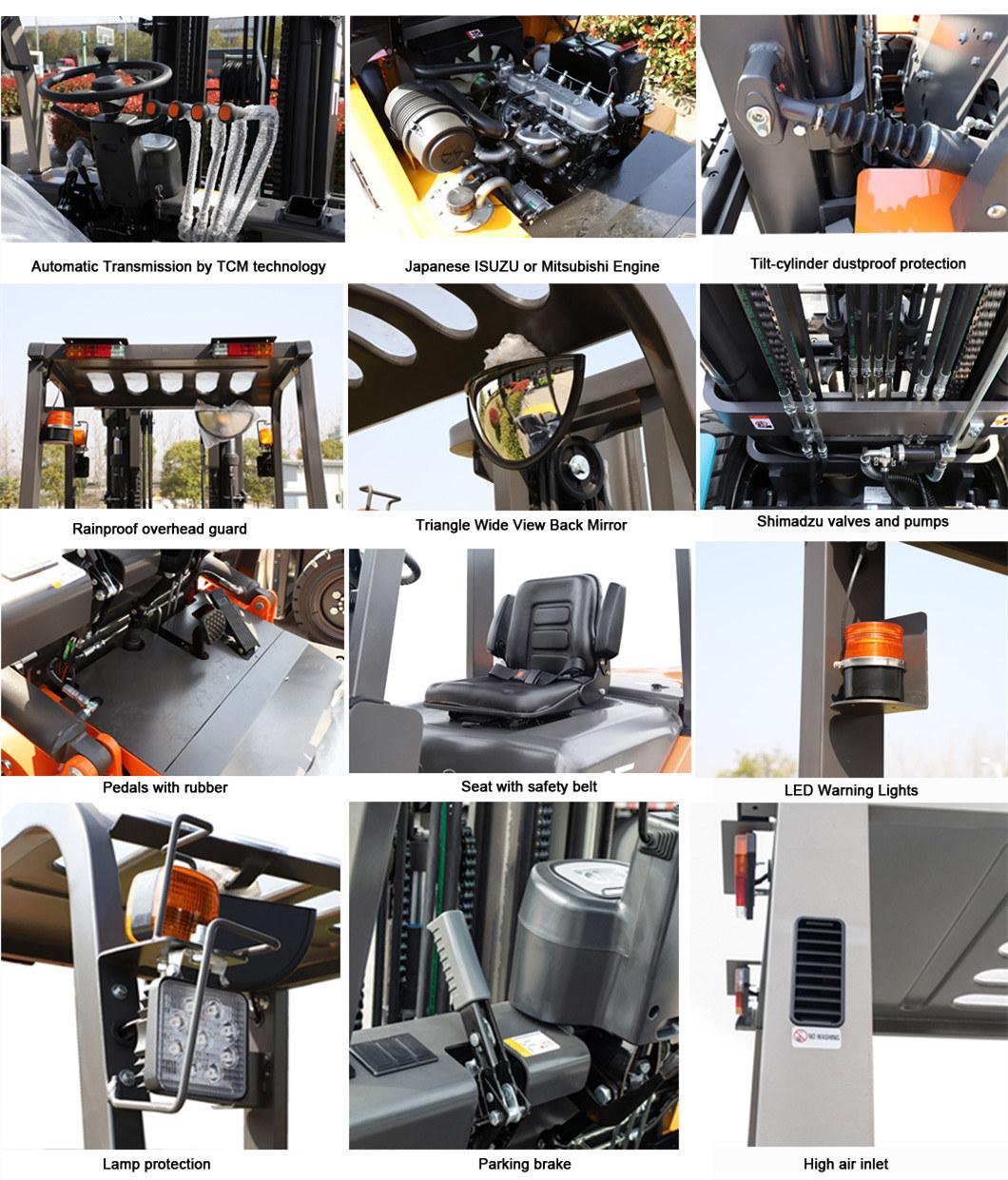

Detailed Photos of Forklift 4x4 Diesel 3 Ton Forklift Fork Lift 6m:

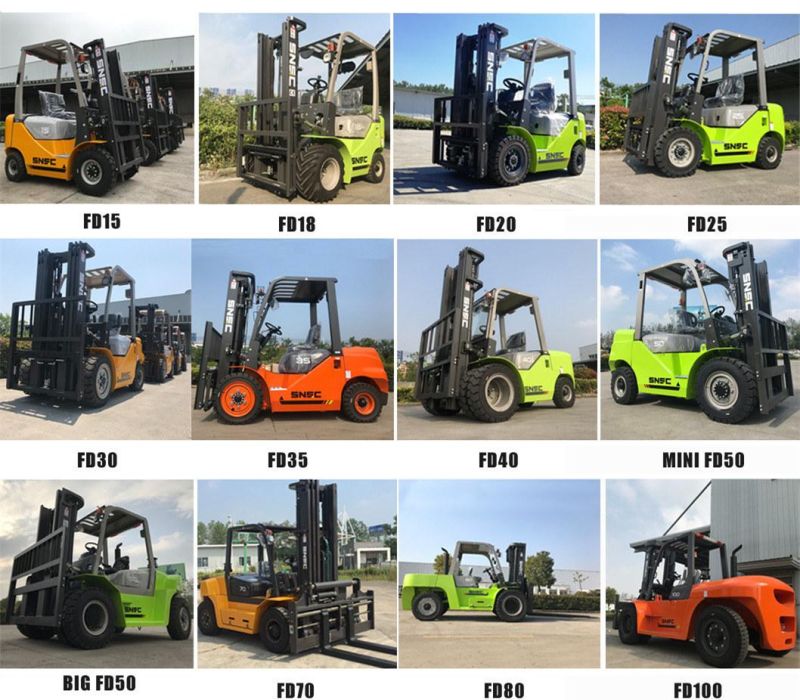

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).

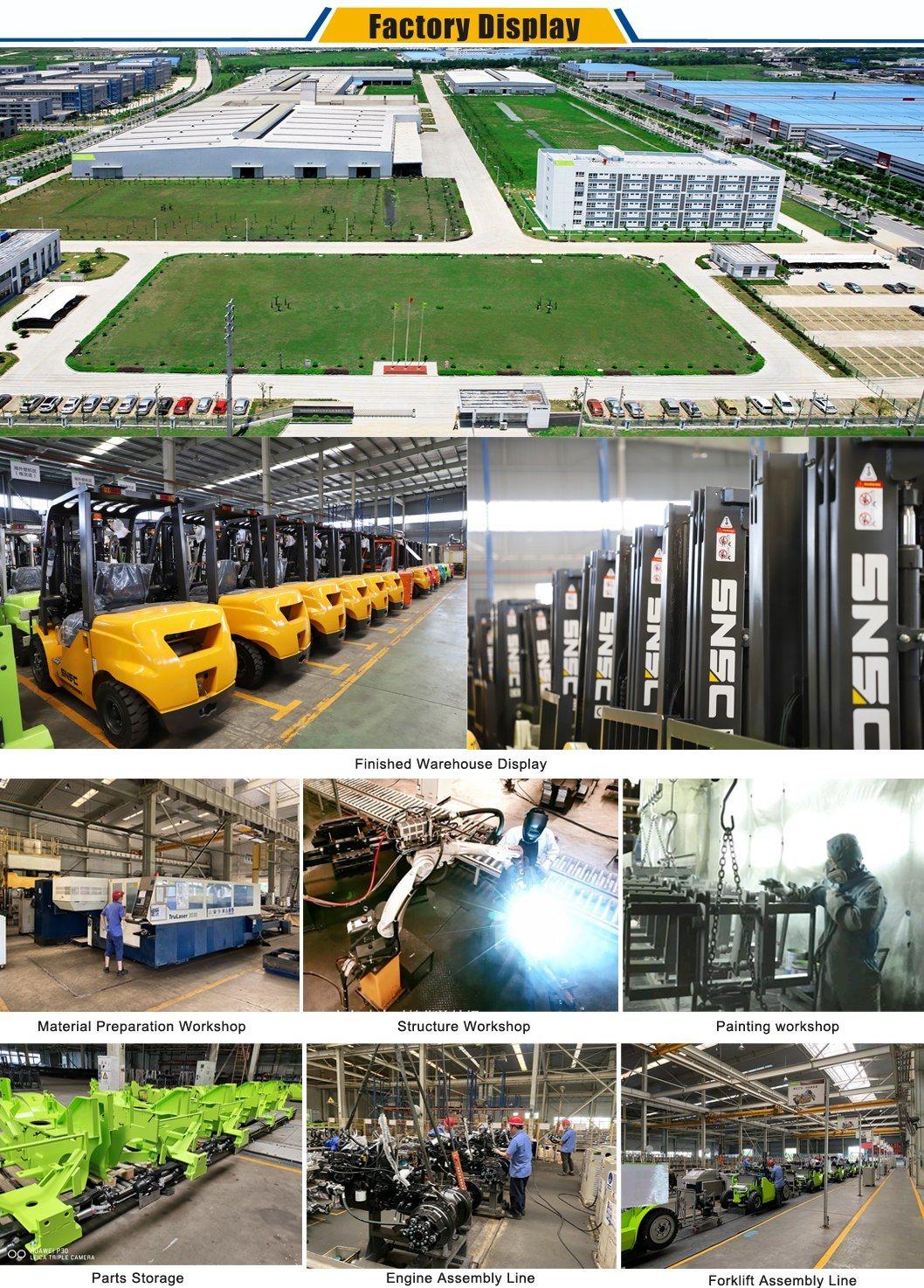

Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.

We regarde  "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."


We are dedicated to providing forklift VIP solution to meet all kinds of work condition  which means SNSC forklift can be customized.

Your satisfaction is our terminal goal, SNSC is worth your trust and beyond your needs.

We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands. Winni is waiting for you here.
