• Model NO.：FD50
• Lift height：>5000mm
• Condition：New
• Rated Capacity：5000kg
• Wheel Base：2100mm
• Max.Lifting Height：3000mm
• Tyre Type：Pneumatic Tyre
• Turning Radius：3250mm
• Truck Weight：8050kg
• Engine：Isuzu,Mitsubish,Chaochai
• Fork Size (Lxwxt)：1220X150X60mm
• Mast：Duplex Mast or Triplex Mast
• Displacement：6494cc
• Transport Package：Nude Packing
• Specification：3455*1995*2450mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000

Basic Info.

Model NO. FD50 Lift height >5000mm Condition New Rated Capacity 5000kg Wheel Base 2100mm Max.Lifting Height 3000mm Tyre Type Pneumatic Tyre Turning Radius 3250mm Truck Weight 8050kg Engine Isuzu/Mitsubish/Chaochai Fork Size (Lxwxt) 1220X150X60mm Mast Duplex Mast or Triplex Mast Displacement 6494cc Transport Package Nude Packing Specification 3455*1995*2450mm Trademark LTMG Origin China HS Code 8427209000

Product Description

Product Description

Optional Japanese engine montacargas LTMG brand 3 ton 5 ton 6 ton 7 ton diesel forklift










Model	FD50
Power Unit	Diesel
Operator Type	Driver/seat
Transmission Box Type	Electronic hydraulic transmisson
Rated Capacity	5000kg
Load Center	500mm
Max.Lifting Height	3000mm
Tyre Type	Pneumatic Tyre
Tyre Number (Front/Rear)	4/2
Tyre Size (Front/Rear)	8.25×15-14PR/8.25×15-14PR
Lifting Speed (Loaded/Unloaded)(mm/s)	500/550
Lowering Speed (Loaded/Unloaded)(mm/s)	500/450
Travelling Speed (Loaded/Unloaded)(km/h)	26/30
Max.Gradeability (Loaded)	20%
Max.Drawbar Pull (Loaded)	5500kg
Mast Tilting Angle (Fwd/Bwd)(Deg)	6/12
Free Lifting Height	205mm
Turning Radius	3250mm
Overall length (without fork)	3455mm
Overall Width	1995mm
Overhead Guard Height	2450mm
Fork Size (LxWxT)	1220x150x60mm
Mast Height (Fork lowered)	2500mm
Battery (Voltage/Capacity)	2×12/90
Truck Weight	8050kg
Fuel Tank Capacity	140
Engine	MITSUBISH/ISUZU/CHAOCHAI

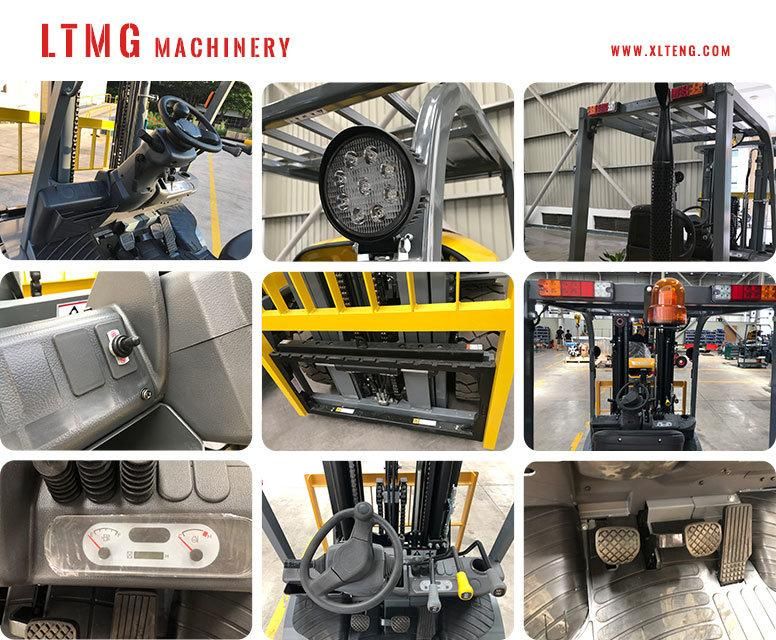

Detailed Images




1.Safe :
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Environmental:
Middle muffler, more environmental.
3.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
4.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

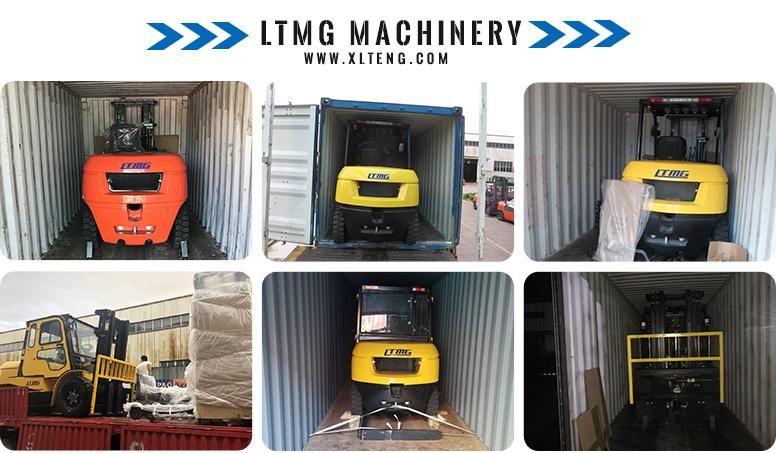

Packing&shipping



Customer



Company&factory



After-Sales Service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

 Detail clauses and policies please check our website and product certificate.
