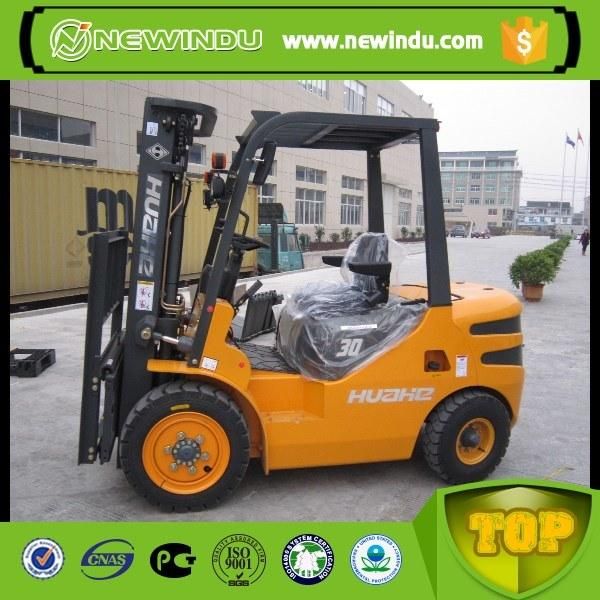

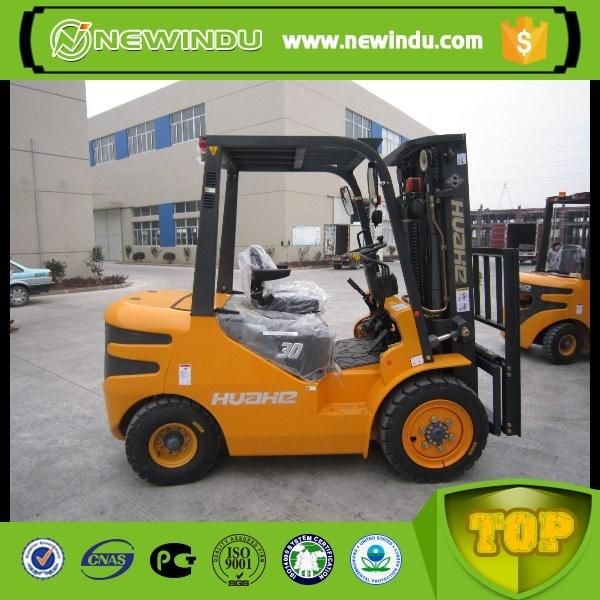

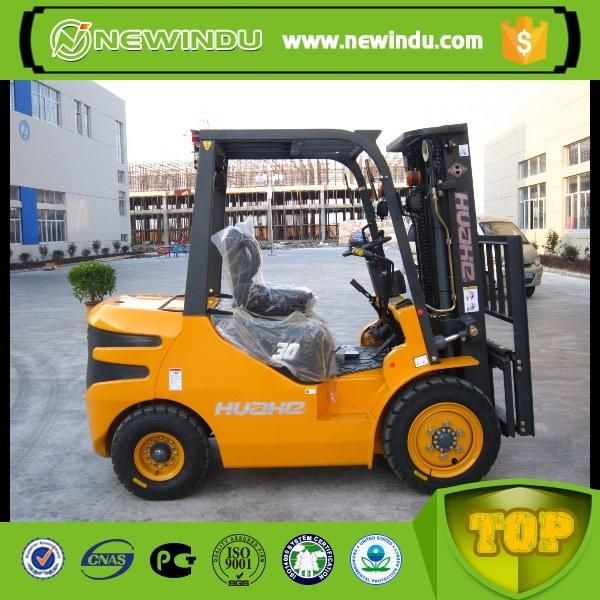

• Model NO.：HH30Z
• Lift height：3000~5000mm
• Condition：New
• Free Lift Height：130mm
• Mast Lifting Height：3000mm
• Min Turning Radius：2460mm
• Wheelbase：1700mm
• Min. Ground Clearance：158mm
• Transport Package：Bulk
• Specification：3 ton
• Trademark：Huahe
• Origin：China
• HS Code：842720900
• Production Capacity：100pieces,Month

Model

Unit

HH30

HH30Z

Power type

Diesel

Rated capacity

Kg

3000

Load center

mm

500

Dimensions

Lift height

mm

3000

Free lift height

mm

130

Fork size (L×W×T)

mm

1070×125×45

Mast inclination F/R

Deg

6°/12°

Front overhang

mm

490

Overall Dimensions

Length to face of fork

mm

2680

Overall width

mm

1225

Mast lowered height

mm

2095

Overhead guard height

mm

2120

Turning radius

mm

2460

Min. right angle aisle width

mm

2105

Performance

Travel speed

Unload I/II

Km/h

9/20

Full load I/II

Km/h

8.8/18.5

Lift speed

mm/s

480

Max. grade ability

%

20

Max. drawbar pull

Kn

13

Self weight

Kg

4400

Wheels & Tires

Tires

Front

28×9-15-12PR

Rear

6.50-10-10PR

Tread

Front Q

mm

1000

Rear S

mm

970

Wheelbase

mm

1700

Min. ground clearance

(unload/full load)

Mast

mm

152/132

Frame

mm

158/138

Drive units & Control

Battery

V/Ah

12/90

Engine

Model

C240     A495BPG

Rated output

Kw/rpm

34.5/2500    39/2650

Rated torque

N.m/rpm

139/1800    168/1800

Displacement

cc

3059        2980

Transmission

Type

Hydraulic

Shift Fwd/Rwd

1/1 Power shift

Operating pressure

Mpa

17.5
