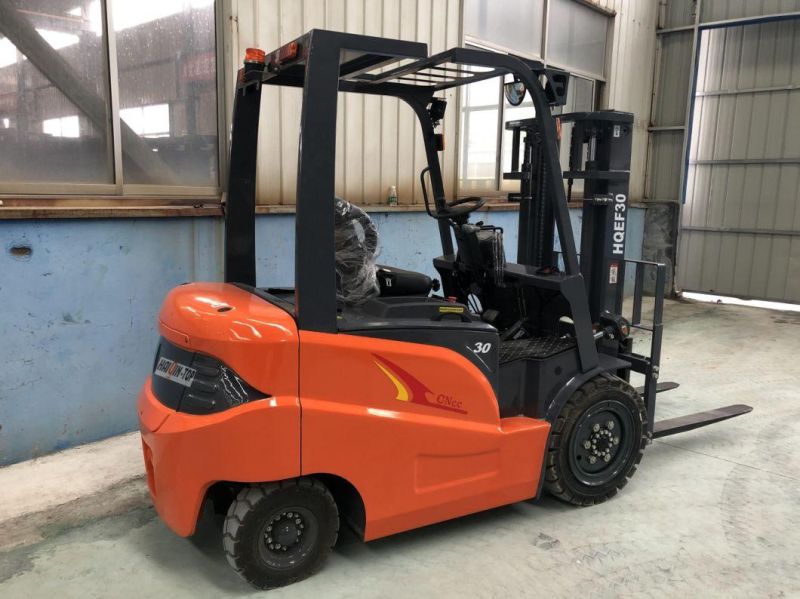

• Model NO.：HQEF30
• Fuel：Electric
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Rated Loading Capacity：3000kg
• Max. Lifting Height：3000mm
• Power Souce：DC Motor
• Transport Package：by Container
• Specification：CE, ISO, SGS
• Trademark：Haiqin
• Origin：Shandong, China
• HS Code：84271090
• Production Capacity：9000 Units , Year

Main information Model  HQEF30 Power type  Battery  Rated load KG3000 Load center distancemm500 Driving type SeatMeasurement1 LengthWith fork              L1   mm3630 Without fork       L225602Whole Width              B 1220 HeightHeight no lifting frame  H120803Top frame height          H22215 Max Height working       H341854Distance from seat to top light L310605Wheel  base              L416806Front overhang         Y4907Back overhang         L54258Front wheel tread        R10009Back wheel tread      P98010Min Floor clearance                 F14511Max lifting height                H300012Free lifting height                H416013Fork  changing                   S1060/25014Min Turning radius          WA220015Min driiving width          RA4100Performance16Frame angle   a/β(°)6°/12°17Max lifting speed without goodsmm/s42518Max lifting speed with full  goods 26019Max speed without goodsKm/h1420Max speed with full goods 12.521 Max climbing angle%≤15Weight23 Whole weight Kg5600Wheels and tire26Driving Wheel  2x/227Type modelSolid Tyre28Front Tyre 28X9-1529Rear Tyre 18x7-830Hand Brake Hydraulic Pedal31Brake  typeM-HandBattery and motor32Battery Volt/ capacityV/Ah80/50033Driving motor power KwAC16.634Pump power  AC12
