Top Quality New 10 Ton Forklift Diesel with Unitcm Brand
Xiamen Hifoune Technology Co., Ltd.- After-sales Service：Available
- Warranty：One Year or 2000hours
- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：5T - 10T
Base Info
- Model NO.：FD100
- Fuel：Diesel
- Load center：600mm
- Lift height：3000~5000mm
- Condition：New
- Engine：Xinchai,Isuzu,Mitsubish
- Weight：12500kg
- Rated Capacity：10000kg
- Fork Size：1220X175X870mm
- Transmission Box Type：Automatic Transmission
- Tire Type：Pneumatic Tire
- Transmission：Hydraulic
- Optional：Attachment, Side Shifter, Sealed Cab, Mast, etc
- Mast：Duplex Mast (Triplex Mast Optional)
- Color：Customized
- Certification：CE,ISO
- Transport Package：Container
- Specification：5480x2160x2560mm(LXWXH)
- Trademark：UNITCM
- Origin：Cn
- HS Code：8427209000
- Production Capacity：4500sets,Year
Description
ModelUNIT FD100 Specifications Power Unit Diesel Operator Type Driver/seat Transimission Box Type Electronic hydraulic transmisson Rated Capacity kg 10000 Load Center mm 600 Max.Lifting Height mm 3000 Tire Type Pneumatic Tyre Tire Number Front 4 Rear 2 Tire Size Front 9.0-20-14PR Rear 9.0-20-14PR Performance Lifting Speed Loaded mm/s 380 Unloaded 410 Lowering Speed Loaded mm/s 450 Unloaded 400 Travelling Speed Loaded km/h 26 Unloaded 30 Max.Gradeability (Loaded) % 20 Mast Tilting Angle (Fwd/Bwd) deg 6/12 Free Lifting Height mm 180 Turning Radius mm 3900 Dimensions Overall Length (with fork) mm 5480 Overall Width mm 2160 Overhead Guard Height 2560 Fork Size (LxWxT) mm 1220x175x80 Mast Height (Fork lowered) mm 2850 Battery (Voltage/Capacity) V/Ah 2×12/90 Truck Weight kg 12500 Fuel Tank Capacity L 143 Engine Brand Chaochai ISUZU Model 6102 6BG1 Rated Power kw/rpm 80.8/2500 82.3/2000 Rated torque n-m/rpm 354/1650 418/1500 Number Of Cylinder 6 6 Displacement 5.78 6.49

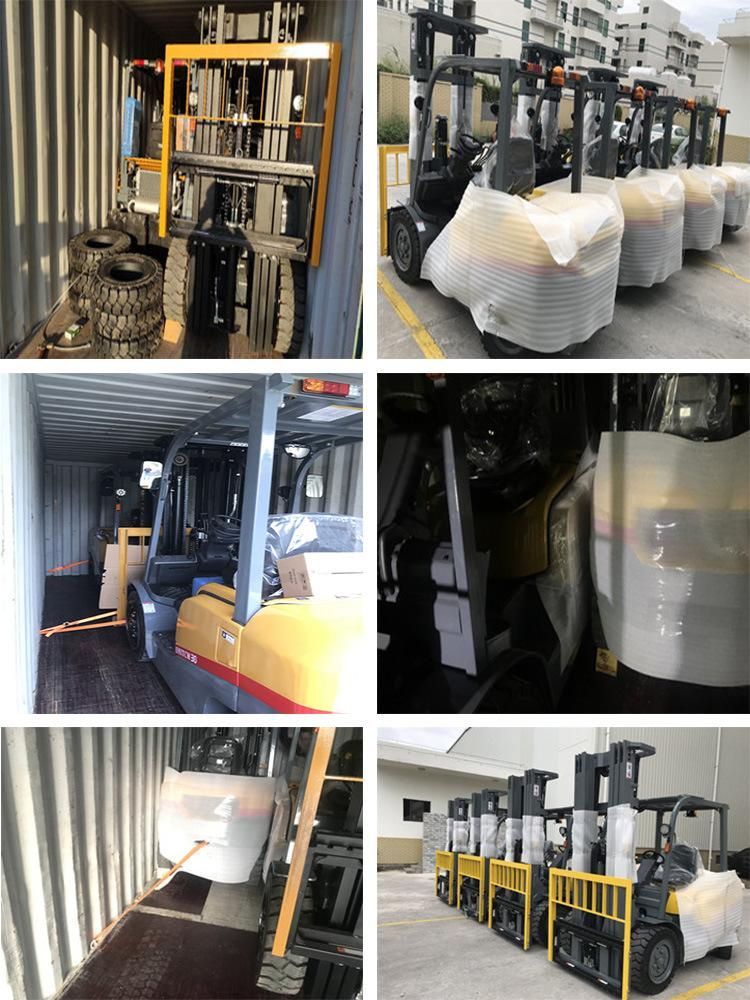

Shipping & Packing

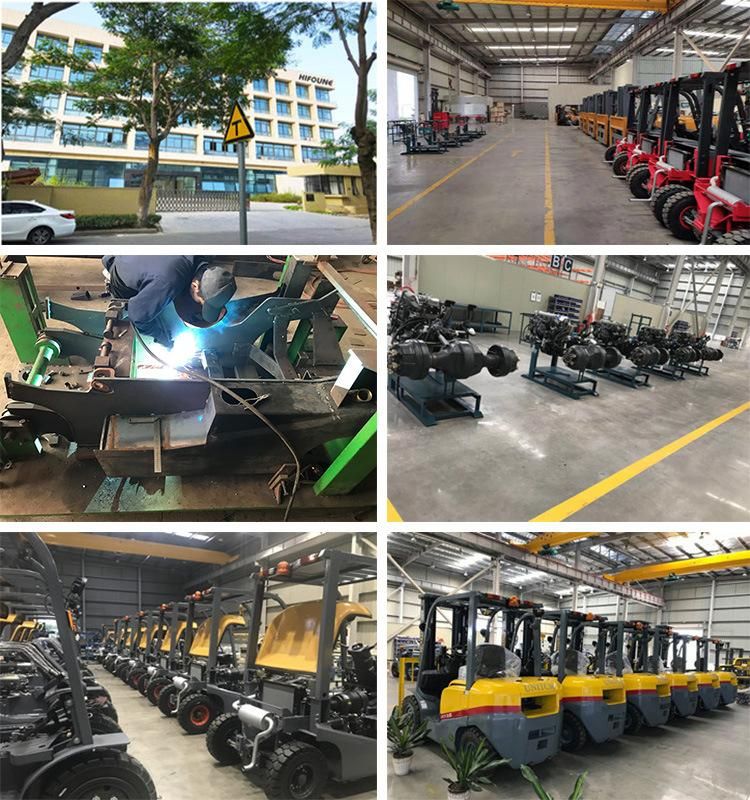

About us
Xiamen Hifoune Machinery Co., Ltd. is located in the Xiangan industrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. Our main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipment. We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links
