• Model NO.：BF2.0B
• Lift height：3000~5000mm
• Condition：New
• Transport Package：Wooden Box
• Trademark：Bafang
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. BF2.0B Lift height 3000~5000mm Condition New Transport Package Wooden Box Trademark Bafang Origin China Production Capacity 1000 Sets/ Month

Product Description

Warehouse Equipment 2-3Ton Hand Hydraulic Pallet Truck
Description:Hand pallet truck also known as manual pallet truck, hand pallet truck when use the carrying
goods fork into the tray hole,by the ability to drive hydraulic system to realize the pallet load
lifting and falling, and pulled by human complete handling operations.
2.It is the simplest and most effective tray in the transport, the most common type of loading
and unloading, handling tools,widely used in logistics,warehouses, factories, hospitals, schools,
shopping malls, airports, stadiums, station, airport and so on.

Main parameter:

Model	BF2.0A	BF2.0B	BF2.5A	BF2.5B	BF3.0A	BF3.0B
Cpaacity (kg)	2000	2000	2500	2500	3000	3000
Mini fork height(mm)	85	85	85	85	85	85
Max fork height(mm)	205	205	205	205	205	205
Single fork width(mm)	160	160	160	160	160	160
Width overall fork(mm)	540	680	540	680	540	680
Fork length(mm)	1150	1200	1150	1200	1150	1200
Load wheel(mm)	Φ75*70	Φ75*70	Φ75*70	Φ75*70	Φ75*68	Φ75*68
Steer wheel(mm)	Φ200*50	Φ200*50	Φ200*50	Φ200*50	Φ200*50	Φ200*50
Net weight(kg)	75	78	77	80	85	88

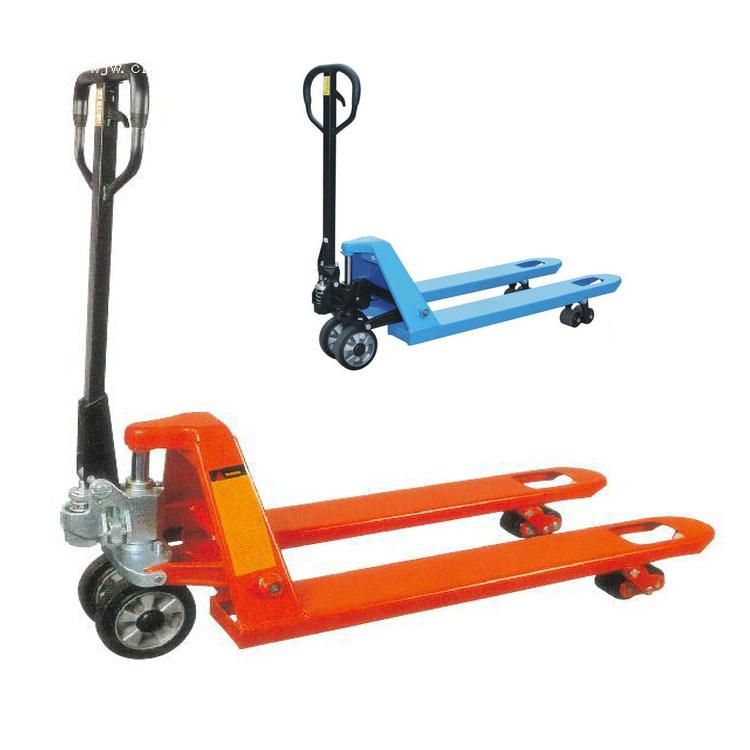

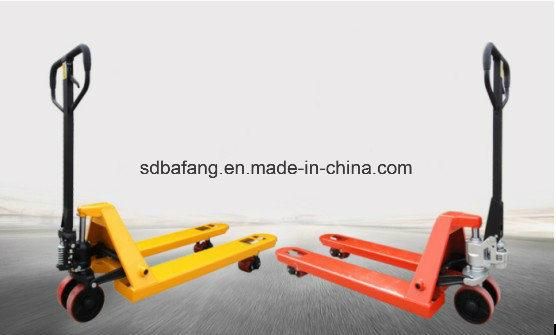

Product pictures:



Company information

For more detailed specifications please feel free to contact with us
