• Condition：New
• Color：Red
• Transport Package：International Standard Package
• Specification：CE ISO9001: 2008 GOST
• Trademark：HECHA
• Origin：China
• HS Code：8427109000
• Production Capacity：20000PCS Years

3.5T Diesel Forklift specification  General1Model FD35T2Power type Diesl3Rated capacitykg35004Load centermm5005Operator type Seated6Tyre typeFront/Rear Pneumatic7Number of wheels(X=driven))Front/Rear 2 X /2Dimensions8Lifting heightmm30009Free lift heightmm15010Fork sizeLxWxTmm1070X130X4511Mast tilt rangeF/R 6/1212Overall Length(Without fork)mm272513Overall widthmm122514Mast lowered heightmm216015Mast extended heightmm329016Overhead guard heightmm209017Turning radius(Outside)mm245018Fork overhang(Wheel center to fork face)mm49819Min.right angle stacking aisle width (Add load length and clearance)mm290020Wheelbasemm170021Tread Frontmm100022Rearmm97023Ground clearanceLowestmm14524Wheel base centermm140Performance25SpeedTravelFull loadkm/h1826No loadkm/h19.527LiftingFull loadmm/s38028No loadmm/s45029LoweringFull loadmm/s42030No loadmm/s46031Max.Drawbar PullFull load/No loadkg1304/11901696/11903233Max.GradeabilityFull load/No load%15/1815/18Weight34Self weightkg475035Wheel distributionFull loadFrontkg732036Rearkg93037No loadFrontkg204038Rearkg2710Wheels39TyresSpecFront 28*9-15-12PR40Rear 6.50-10-10PRBrake41Brake typeDriving brake Hydraulic42Parking brake Mechanical hand brake 43BatteryVoltage/CapacityV/AH12/100 44TransmissionModel type Powershift (Manual) 45StageFWD/RVS 1/1 (2/2) 46Operating pressureMpa17.





All Hecha forklifts come with:

- comlpete set of working lights

-  Toyota seat
- buzzer
- reverse alarm light
- mirror
- seat belt
- complete set of maintanance tools

Options:

• Side shift
• Buit-in forkpositioner + side shift
• Paper clamps / brick clamps
• Cushion tires
• Double front tires
• Extra hydrolic valves
• Full free lift triplex mast
• Lifting heights up to 6000 mm
• Extra LPG tanks





3.After sevice



1)  We provide excellent after service:



Our company consists of sales department after sale service department, dealer customer

relationship center, finance department and administrate department to offer you a wonderful

service.



2)  We guarantee the quality and free repalcement, our warranty period is 12 month,within 12 months if you have any quality problems,   pls feel free to ask us, we are always here to help you with any problems.



3) If you have any questions, pls feel free to contact us, we are always here to help.

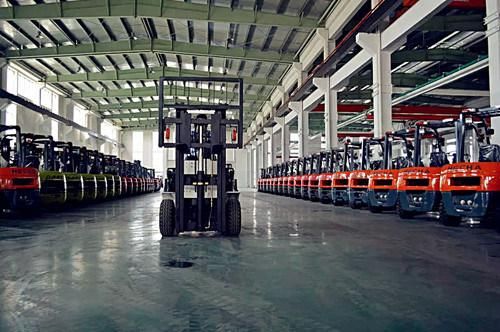

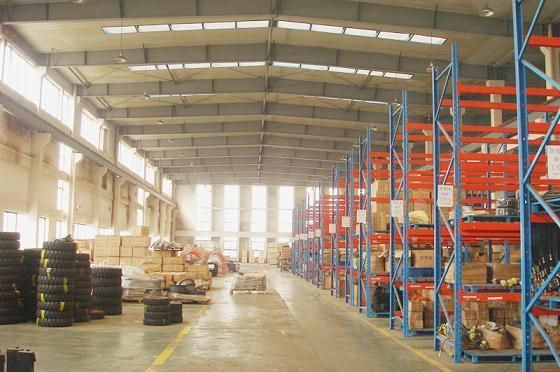

Company show

↓

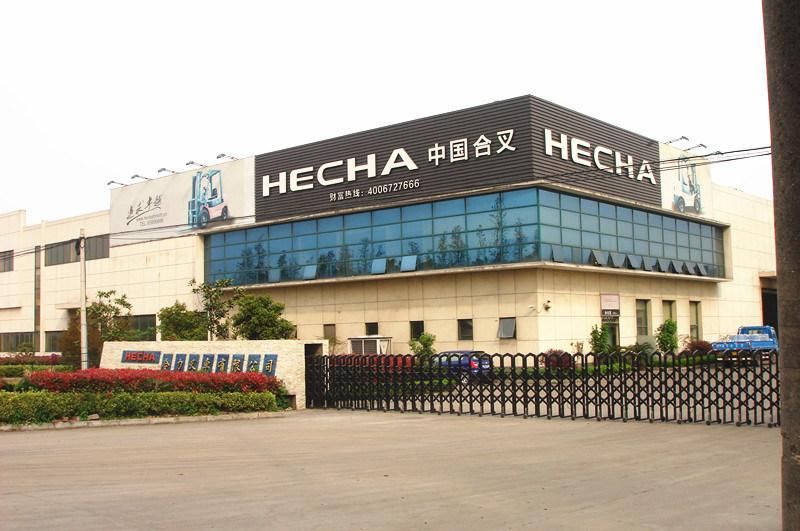

Heli forklift co., ltd. Is a dedicated forklift maker in China. It is located in Jiaxing city, Zhejiang Province, P.R China. With the area of about 80.000 square meters and the advanced product line, the company has totally invested 20million US dollars. With 11,000sqm modern assembling hall, the designed production capacity is 20000 units of forklifts per year.


Heli Forklift Co., Ltd insists on the philosophy "Quality First, Customers supreme" and targets to be the most professional and excellent player in China forklift industry. Branded "HECHA", the forklifts are very popular with its high performance, comfortable operation, good looking and reliable working. Our company will continuously keep its advantages with strict QC systems.


The product range we have covered is 1.0-7.0Ton Internal Combustion Forklift, 1.0-3.0Ton 4wheeler Battery Forklift and 1.0-2.0ton 3pointer Battery Forklift. All the forklifts can be supplied with necessary attachments for different material handling application. The company will continuously strengthen the research force and enlarge the range of the products to meet the different demand of domestic and overseas customers.


What we are pursuing is to supply the best forklifts with best service. Welcome to join HECHA!

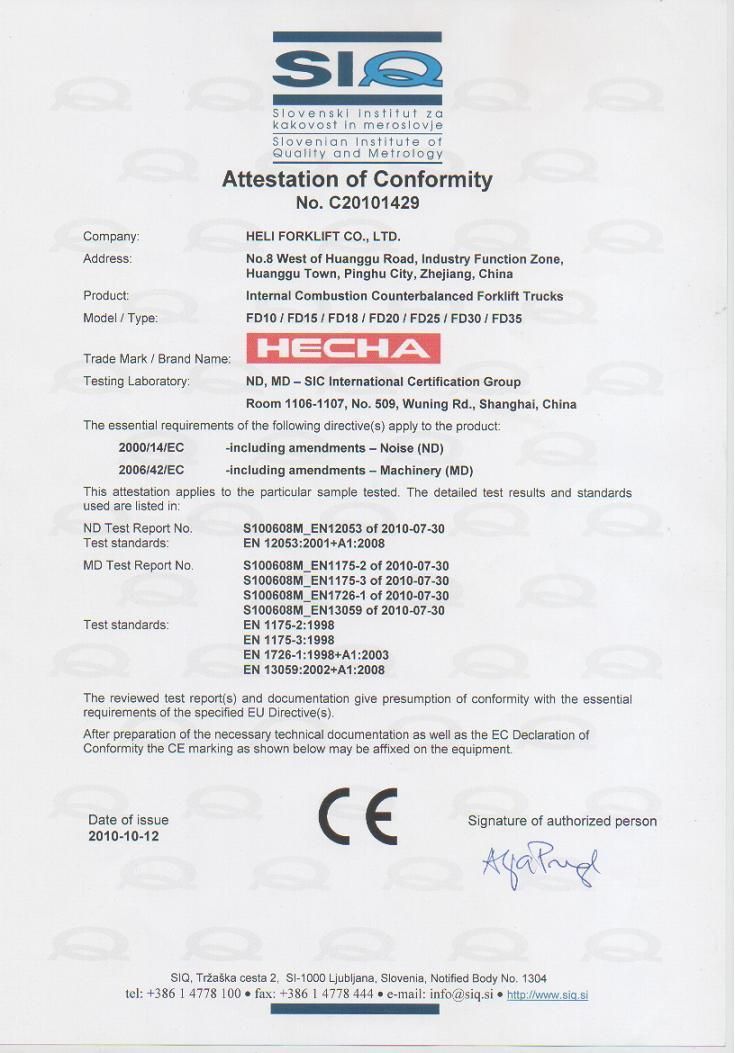

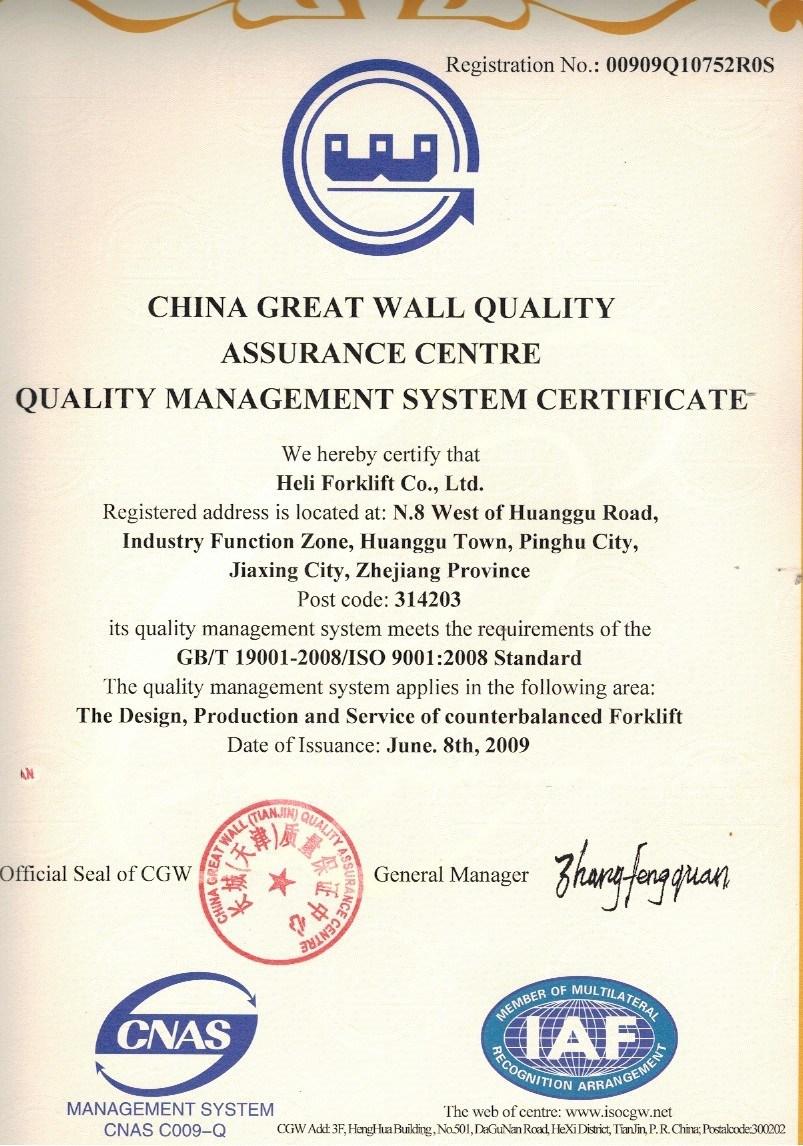

Certifications

↓





4.Contact us

Judy



Web:hechaforklift.en.made-in-china.com
