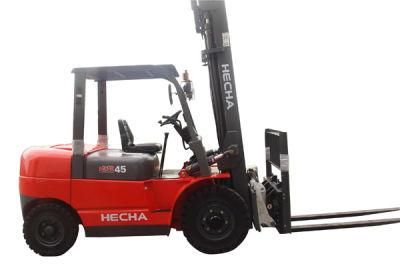

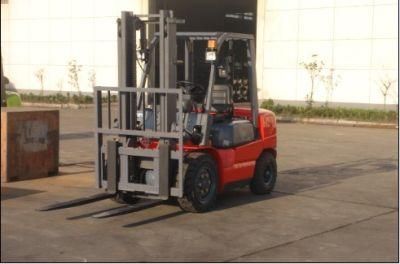

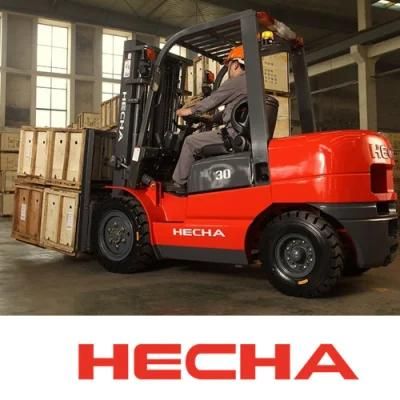

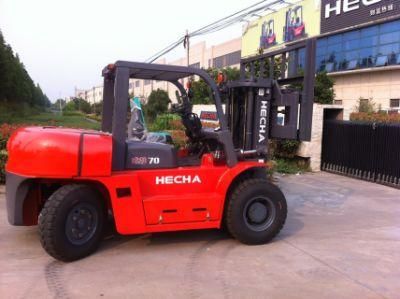

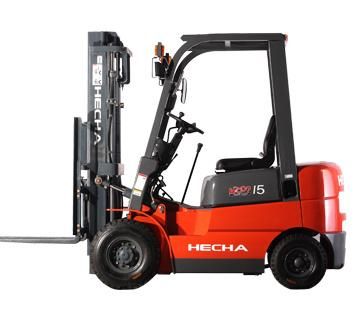

3ton Hecha LPG Forklift Gasoline Forklift Truck
HECHA INTELLIGENT EQUIPMENT CO., LTD.- Type：Powered Pallet Truck
- Power：Gasoline Engine
- Load Capacity：1T - 5T
- Color：Red
- Transport Package：International Standard Package
- Specification：gasoline,LPG forklift
Base Info
- Model NO.：FD30G
- Trademark：HECHA
- Origin：China
- HS Code：8427109000
- Production Capacity：150PCS Per Month
Description
3ton Hecha LPG Forklift gasoline forklift truck specificationGeneral 1 Model FGL10T-HWA3 FGL15T-HWA3 FGL18T-HWA3 (FGL10-HWA1) (FGL15-HWA1) (FGL18-HWA1) 4 Power type Gasoline/LPG 2 Rated capacity kg 1000 1500 1800 3 Load center mm 500 5 Operator type Seated 6 Tyre type Front/Rear pneumatic 7 Number of wheels(X=driven)) Front/Rear 2×/2 Dimens ions 8 Lifting height mm 3000 9 Free lift height mm 135 10 Fork size LxWxT mm 920X100X35 920×100×35 920×100×38 11 Mast tilt range F/R deg 6/12 12 Overall Length(Without fork) mm 2171 2231 2274 13 Overall width mm 1070 14 Mast lowered height mm 1995 15 Mast extended height mm 4030 16 Overhead guard height mm 2070 17 Self weight kg 2150 2590 2820
