Cushion Tires Forklift Machines 2.5 Ton 3 Ton LPG Forklift with LED Working Lights
XIAMEN LTMG CO., LTD.- Cab Location：Adjustable
- Type：LPG Forklift
- Power：LP Gas Engine
- Load Capacity：1T - 5T
- Fuel：Gasoline
- Load center：500mm
Base Info
- Model NO.：FG30
- Lift height：3000~5000mm
- Condition：New
- Fork Size：1070mm*125mm*50mm
- Weight：4610kg
- Engine：Nissan
- Wheelbase：1700mm
- Color：Buyer Customized
- Max. Lifting Height：3000mm or Optional
- Rated Power：51kw,2300rpm
- Tire Type：Pneumatic,Solid Tyres
- Ground Clearance：125mm
- Turning Radius(Outside)：2460mm
- Mast：Two Stage,Three Stage Mast Optional
- Rated Torque/r.p.m.：176.5,1600n.M
- Transport Package：Container
- Specification：2720mm*1285mm*2140mm
- Trademark：LTMG
- Origin：China
- HS Code：8427209000
- Production Capacity：300sets,Month
Description
FG30-FG40 LPG & GASOLINE FORKLIFT SPECIFICATIONModel FG30 FG35 FG40 Power Type LPG & Gasoline LPG & Gasoline LPG & Gasoline Rated Capacity kg 3000 3500 4000 Load Centre mm 500 500 500 Lift Height mm 3000 3000 3000 Fork Size(L×W×T ) mm 1070×125×45 1070×125×50 1070×125×50 Mast Tilt Angle(F/R) Deg 6°/12° 6°/12° 6°/12° Front Overhang (Wheel center to fork face) mm 480 485 495 Ground Clearance(Bottom of mast) mm 140 140 140 Length to face of fork(Without fork) mm 2730 2775 2890 Overall Width mm 1225 1225 1410 Mast Lowered Height mm 2115 2115 2195 Mast Extended Height(With backrest) mm 4150 4150 4180 Overhead Guard Height mm 2090 2090 2120 Turning Radius (outside) mm 2440 2480 2700 Min. insecting aisle mm Travel Speed(Full load) km/h 20 20 19 Lifting Speed(Full load) mm/s 510 440 320 Max.Gradeability (No load/Full load) % 20 20 20 Front Tire mm 28×9-15-12PR 28×9-15-12PR 250-15-16PR Rear Tire mm 6.50-10-10PR 6.50-10-10PR 6.50-10-10PR Wheelbase mm 1700 1700 1900 Service weight kg 4300 4500 5100 Battery(Voltage/Capacity) V/Ah 12/80 12/80 12/80 Engine Model K25 K25 PSI3.0 Manufacture GCT (NISSAN) GCT (NISSAN) USA PSI Rated output/r.p.m. kw 35.6/2100 35.6/2100 52/2700 Rated torque/r.p.m. N·m 176.5/1600 176.5/1600 202.3/2000 No.of Cylinder 4 4 4 Bore×Stroke mm 89×100 89×100 101.6×91.44 Displacement cc 2488 2488 2967 Fuel Tank Capacity L 60 60 70 Transmission Type Hydraulic Hydraulic Hydraulic Stage FWD/RVS 1/1 1/1 1/1
Details photo

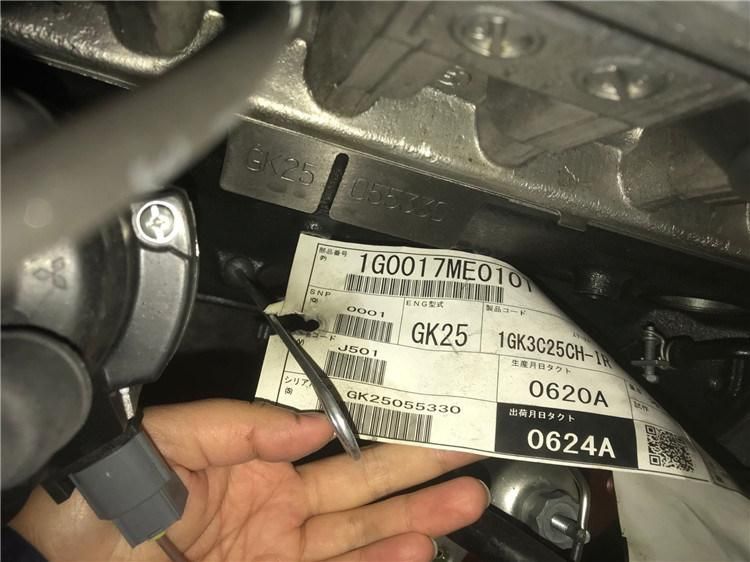

Japanese Nissan- engine

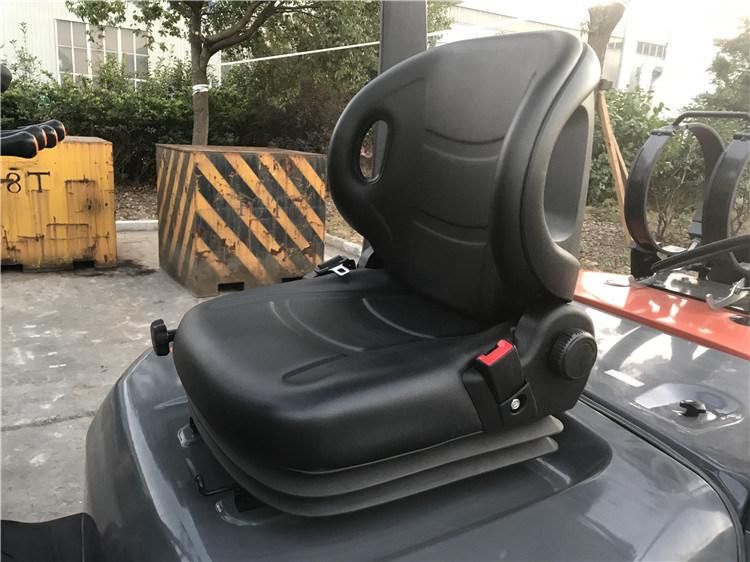

Toyota suspension seat

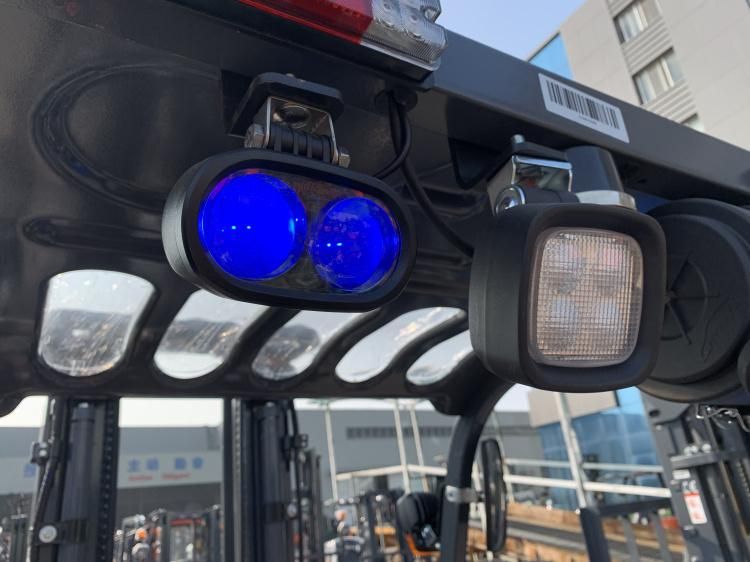

Safety blue lights
Packing & shipping
LTMG Customer
After-sale service
LTMG believes that after-sale service is as important as sale. And now we have more than 50 agents around the world to provide LTMG professional after-sale service.
All the product of LTMG supplied comes with one year or 2000 working hours (which occurs first) period quality warranty.
LTMG can also help clients coordinate with professional trained service engineer to provide you comprehensive knowledge about your machine. With our technical support, your machine service life can be significantly prolonged and sustained with high capacity.
Detail clauses and policies please check our website and product certificate.
- The standard LED lamps and warning lights make it safer, more energy efficient and create better working condition.
- Equipped with USA IMPCO gas system which is more reliable.
- Thicker reinforcing plate ensures the safety and efficiency.
- New designed overhead guard protective device prevent the sudden accidents.
- Equipped with the EFI, EPA approved engine Nissan K25 with excellent environmental performance; GM engines and Chinese powerful and reliable engines are optional.
Details photo
Japanese Nissan- engine
Toyota suspension seat
Safety blue lights
Packing & shipping
About Us
LTMG Customer
After-sale service
LTMG believes that after-sale service is as important as sale. And now we have more than 50 agents around the world to provide LTMG professional after-sale service.
All the product of LTMG supplied comes with one year or 2000 working hours (which occurs first) period quality warranty.
LTMG can also help clients coordinate with professional trained service engineer to provide you comprehensive knowledge about your machine. With our technical support, your machine service life can be significantly prolonged and sustained with high capacity.
Detail clauses and policies please check our website and product certificate.
