• Model NO.：FB50
• Lift height：3000~5000mm
• Condition：New
• Color：Customize
• Fork Size：1070mm*150mm*50mm
• Battery：80V,700ah
• Fork Carriage Tilt：6,9
• Gradeability：15
• Wheelbase：2000mm
• Max.Lifting Height：3000mm
• Overall Length(to Fork Face)：3030mm
• Overall Width：1600mm
• Tire：Pneumatic
• Transport Package：Container
• Specification：3030mm*1600mm*2330mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：1000sets,Year

Power source BatteryRated load capacitykg5000Load centremm500Lift heightmm3000Fork size (L×W×T)mm1070×150×50Fork carriage tilt(F/R) 6°/9°Overall Length(to fork face)mm3030Overall Widthmm1600Mast Lowered Heightmm2330Mast Extended Heightmm4255Overhead Guard Heightmm2255Wheelbasemm2000Overall length(with forks)mm4100Gradeability(Laden)%15Front Tire 28×12.5-15-24PRRear Tire 7.0-12-14PRBattery(Voltage/Capacity)V/Ah80/700Drive motor                    Kw2x11Lifte motor                       Kw26
Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

Packing & Shipment:




Our Factory

LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors.If you are interested in our product,you could visit our website.
Website:
http://ltmamachine.en.made-in-china.com (Group)





Our customers

Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.



After sales service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

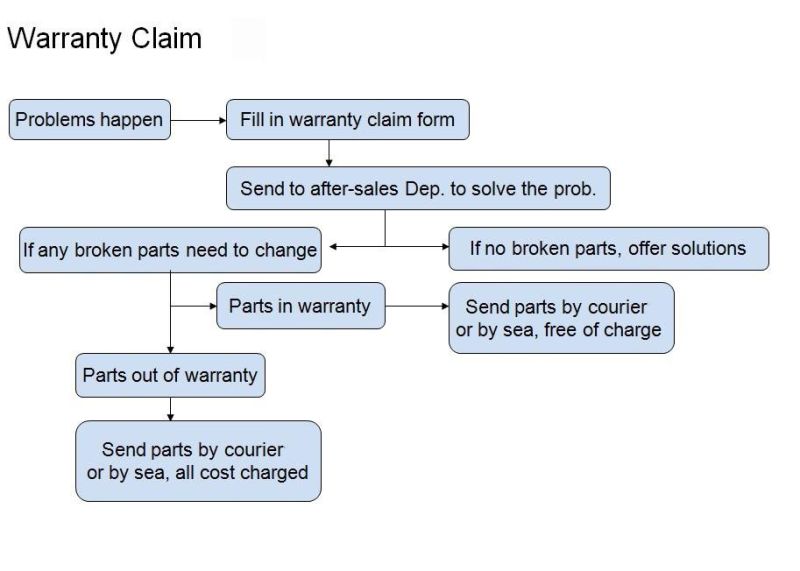

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.



Welcome to contact us for further questions!

We have very stronger technique team to serve after sales service.

Any quality problem much welcome to contact us.
