Ltmg Propone Gasoline Forklift Carretilla Elevadora 1.5 Ton 2 Ton 3ton 3.5 Ton 5 Ton 6 Ton 7 Ton LPG Gas Forklift with Japanese Engine

XIAMEN LTMG CO., LTD.
  • Cab Location：Adjustable
  • Type：LPG Forklift
  • Power：LP Gas Engine
  • Load Capacity：3 Ton
  • Fuel：LPG
  • Load center：500mm

Base Info

  • Model NO.：FG30
  • Lift height：3000mm
  • Condition：New
  • Product Name：Ltmg 3 Ton LPG Gasoline Forklift
  • Brand：Ltmg
  • Item：Forklift Truck
  • Load Centre：500mm
  • Service Weight：4300kg
  • Min. Turning Radius(Outside)：2440mm
  • Wheelbase：1700mm
  • Ground Clearence：140 mm
  • Warranty：1 Year , 2000 Working Hours
  • Fuel Tank：60L
  • Rated Output/r.p.m.：35.6,2100
  • Color：Customized by Customers
  • Certificate：Ce,ISO
  • Size：2730*1225*2115
  • Max. Gradeability：20%
  • Transport Package：Container
  • Specification：2730mm*4150mm*1225mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8427209000
  • Production Capacity：800sets,Year

Description

General1Model FG302Power type LPG3Rated Capacitykg30004Load centremm500Characteristic&Dimension5Lift Heightmm30006Fork SizeL×W×T   mm1070×125×457Mast title AngleF/RDeg6°/12°8Front Overhang (Wheel center to fork face)mm4809Ground clearance (Bottom of mast)mm14010Overall DimensionLength to face of fork (without fork)mm273011Overall widthmm122512Mast Lowered Heightmm211513Mast Extended Height (with backrest)mm415014Overhead Guard Heightmm209015Turning Radius (outside)mm244016Min. intersecting aislemm2960Performance17SpeedTravel(no load)km/h2018Lifting(full load)mm/s51019Max Gradeability%20Chassis 20TireFront 28×9-15-12PR21Rear 6.50-10-10PR22Wheelbasemm170023Service Weightkg4300Power&Transmission24BatteryVoltage/Capacity                                      V/Ah12/8025EngineModel K2526Manufacture GCT(NISSAN)27Rated output/r.p.m.kwt/r.p.m35.6/210028Rated torque/r.p.m.N·mt/r.p.m176.5/160029No.of Cylinder 430Bore×Strokemm89×10031Displacementcc248832 Fuel Tank CapacityL6033TransmissionType Hydraulic34StageFWD/RVS 1/135Operating pressure for attachmentMpa19
Product detail

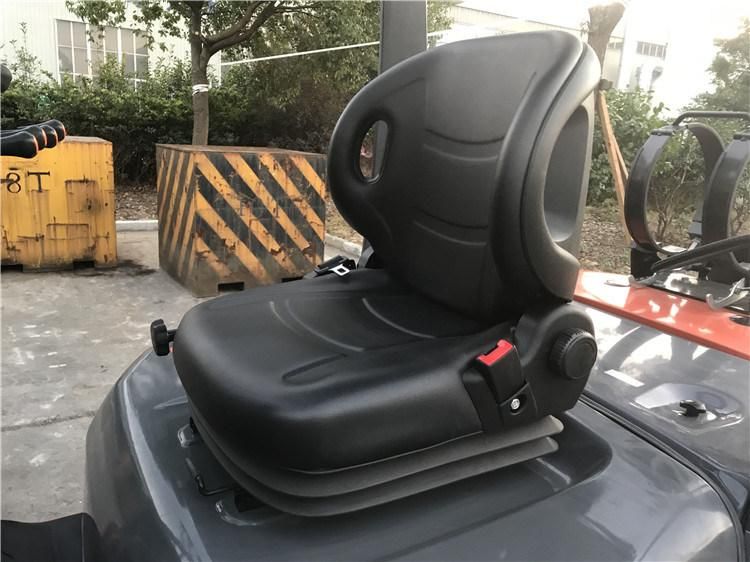

Toyota's suspension seat
Ltmg Propone Gasoline Forklift Carretilla Elevadora 1.5 Ton 2 Ton 3ton 3.5 Ton 5 Ton 6 Ton 7 Ton LPG Gas Forklift with Japanese Engine

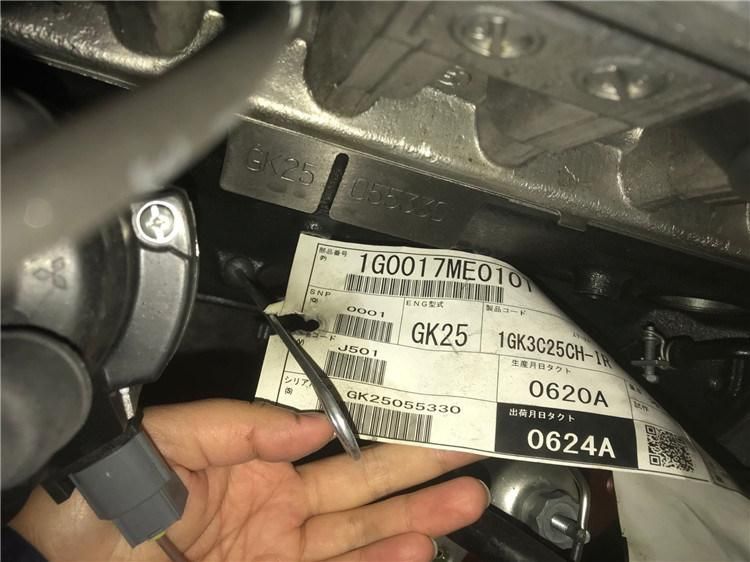

Original Japanese Niaasan K25 engine
Ltmg Propone Gasoline Forklift Carretilla Elevadora 1.5 Ton 2 Ton 3ton 3.5 Ton 5 Ton 6 Ton 7 Ton LPG Gas Forklift with Japanese Engine

Optional cylinder size
Ltmg Propone Gasoline Forklift Carretilla Elevadora 1.5 Ton 2 Ton 3ton 3.5 Ton 5 Ton 6 Ton 7 Ton LPG Gas Forklift with Japanese Engine


Product Features

1. The standard LED lamps and warning lights make it safer,more energy efficient and create better working condition.

2. Equipped with USA IMPCO gas system which is more reliable.

3. Thicker reinforcing plate ensures the safety and efficiency.

4. New designed overhead guard protective device prevent the sudden accidents.

5. Equipped with the powerful and efficient EFI,EPA approved engine Nissan K25 with excellent environmental performance;GM engines and Chinese powerful and reliable engines are optional.

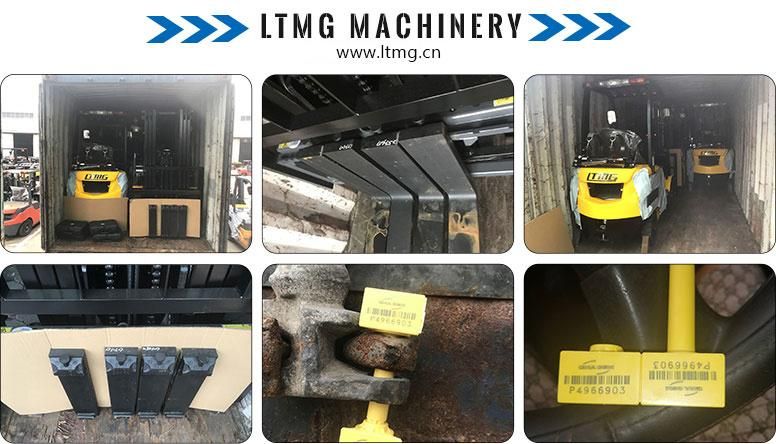

Packing & Delivery

Ltmg Propone Gasoline Forklift Carretilla Elevadora 1.5 Ton 2 Ton 3ton 3.5 Ton 5 Ton 6 Ton 7 Ton LPG Gas Forklift with Japanese Engine

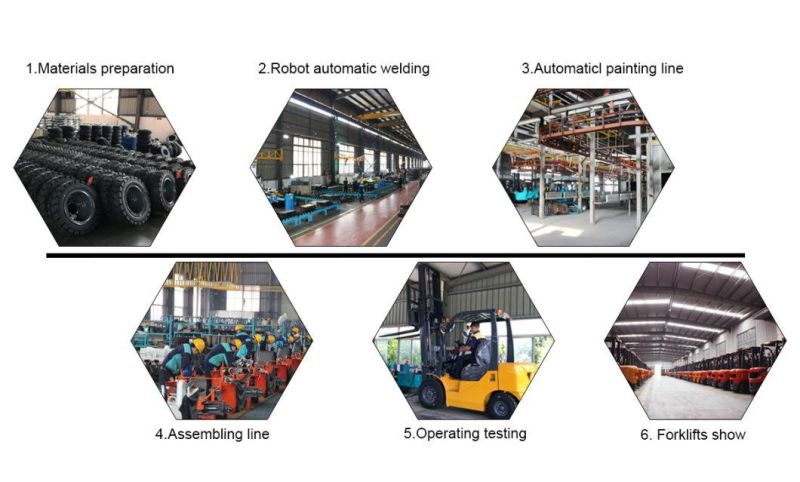

Our Factory


LTMG Machinery Group (LTMG) has always kept its professional role in Chinese Material Handling Equipment &Construction Machinery industry.

At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity.

LTMG defines itself as the high cost-effective construction machine manufacturer. Beside meeting the demand of domestic market, over 30 LTMG overseas agents have been set up to provide global users with all-round marketing service, So far LTMG have exported to more than 110 countries and regions around the world.
Ltmg Propone Gasoline Forklift Carretilla Elevadora 1.5 Ton 2 Ton 3ton 3.5 Ton 5 Ton 6 Ton 7 Ton LPG Gas Forklift with Japanese Engine
Ltmg Propone Gasoline Forklift Carretilla Elevadora 1.5 Ton 2 Ton 3ton 3.5 Ton 5 Ton 6 Ton 7 Ton LPG Gas Forklift with Japanese Engine


Customers Show

Ltmg Propone Gasoline Forklift Carretilla Elevadora 1.5 Ton 2 Ton 3ton 3.5 Ton 5 Ton 6 Ton 7 Ton LPG Gas Forklift with Japanese Engine



After-sale service

LTMG always treat after-sale service important as the same as product quality.
LTMG grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.

Ltmg Propone Gasoline Forklift Carretilla Elevadora 1.5 Ton 2 Ton 3ton 3.5 Ton 5 Ton 6 Ton 7 Ton LPG Gas Forklift with Japanese Engine

FAQ

1.What the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.

2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5.What's the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

6.What logistics waysd we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.

7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is 30 days.
