Container Lifting Equipment 7 Ton Empty Container Reach Stacker Fd180ak5
Jinan Sinoheng Import and Export Co., Ltd.- Cab Location：Adjustable
- Type：Container Forklift
- Power：Diesel Engine
- Load Capacity：5T - 10T
- Fuel：Diesel
- Load center：>500mm
Base Info
- Model NO.：FD180AK5
- Lift height：>5000mm
- Condition：New
- Max.Height for Stacking：14800mm
- Max Extending (Overall Height)：15870mm
- Mast Retracted：9370mm
- Max Driving Speeds(with Load/Without Loa：24,26km,H
- Overall Length (with Spreader)：6488mm
- Overall Width (Without Spreader)：3504mm
- Overall Height (Overhead Guard)：4500mm
- Power Type：Diesel-6cylinder Water Cool-Direct Injection
- Tire Type：Pneumatic
- Max Gradeability：17.5%
- Transport Package：Nude Packaging or Open Top Container
- Trademark：SINOHENG
- Origin：China
- HS Code：8427201000
- Production Capacity：500 Sets,Month
Description
Basic Info.
Model NO. FD180AK5 Lift height >5000mm Condition New Max.Height for Stacking 14800mm Max Extending (Overall Height) 15870mm Mast Retracted 9370mm Max Driving Speeds(with Load/Without Loa 24/26km/H Overall Length (with Spreader) 6488mm Overall Width (Without Spreader) 3504mm Overall Height (Overhead Guard) 4500mm Power Type Diesel-6cylinder Water Cool-Direct Injection Tire Type Pneumatic Max Gradeability 17.5% Transport Package Nude Packaging or Open Top Container Trademark SINOHENG Origin China HS Code 8427201000 Production Capacity 500 Sets/MonthProduct Description

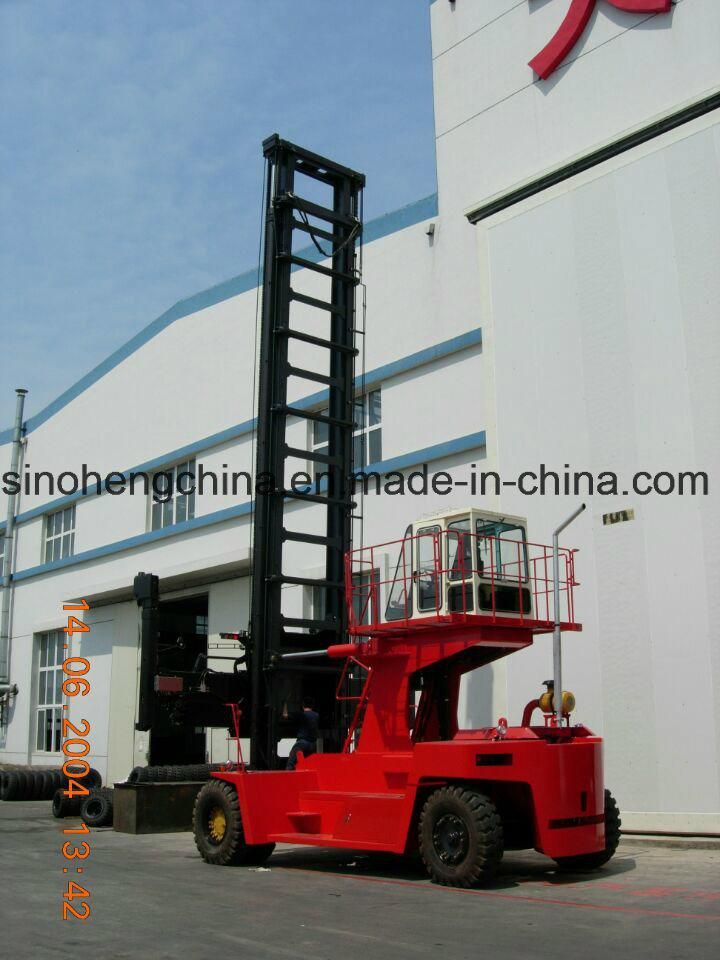

Container Lifting Equipment 7 Ton Empty Container Reach Stacker FD180AK5Our this type stocker machine used for pile continer at port , it named container forklift truck or container handler , container reach stacker etc . This stocker machine with good quality and best price , has exported to many countries . The fuel type is diesel . Its good working performance and high effiency get good feedbacks from our customers . This empty container forklift truck can pile 5 layers , its highest can reach to 14.8m . Its transmission is automatic transmission and hydralic service brake .
This FD180AK5 empty container handler/ container forklift truck Technical Parameters as follows , | Model | Unit | Data |
| Max.height for stacking | mm | 14800 |
| Max extending (overall height) | mm | 15870 |
| Mast retracted | mm | 9370 |
| Fork length | mm | Spreader |
| Overall length (with spreader) | mm | 6488 |
| Overall width (without spreader) | mm | 3504 |
| Spreader width(retracted/extended) | mm | 6038/12165 |
| Overall height (overhead guard) | mm | 4500 |
| Wheel base | mm | 4200 |
| Tread (front) | mm | 2760 |
| Tread (rear) | mm | 2200 |
| Min turning radius | mm | 6000 |
| Min intersecting aisle | mm | 7800 |
| Min under clearance | mm | 260 |
| Overhead guard clearance | mm | 1180 |
| Coupler height | mm | 680 |
| Fork overhang | mm | 1334 |
| Rear overhang | mm | 936 |
| Mast inclination (front/rear) | mm | 3/3 |
| Load capacity | kg | 7000 |
| Load center | mm | 1220 |
| Mast type | CJ | |
| Power type | Diesel-6cylinder water cool-direct injection | |
| Tire type | Pneumatic | |
| Fuel | Diesel - volvo tad720ve | |
| Lifting speed(with load/without load) | mm/s | 400/450 |
| Lowering speed(with load/without load) | mm/s | <600/>300 |
| Max driving speeds(with load/without load) | Km/h | 24/26 |
| Max gradeability | % | 17.5 |
| Tire (front/rear) | 1200-20-18PR/12.00-20-18PR | |
| Battery voltage/capacity | V/Ah | 2x12V/150 |
| Brake distance | m | <7 |
| Service brake | Hydraulic type | |
| Parking brake | Pliers plate type | |
| Internal combustion engine fuel tank capacity | L | 360 |
| Transmission number of speed fwd/rvs-type | Electric shift | |
| Total weight | kg | 30000 |
