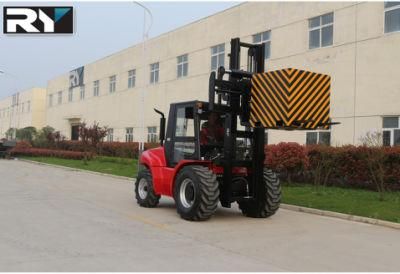

Royal Rough Terrian Forklift 4t/4.5t/5t with Ce Ceitificate
ROYAL FORKLIFT (SUZHOU) CO., LTD.- Cab Location：Adjustable
- Type：Ordinary Combustion Forklift
- Power：Diesel Engine
- Load Capacity：Capacity 5 Ton
- Fuel：Diesel
- Load center：600
Base Info
- Model NO.：T50P
- Lift height：Max Lifting Height 6500mm
- Condition：New
- Battery：24V,90ah
- Fork Size：1220*150*50
- Option 1：Side Shifter
- Option 2：Cabin
- Option 3：Full Free Mast
- Transport Package：Standard Export Packing
- Specification：3541*2067*2545MM
- Trademark：Royal
- Origin：China
- HS Code：84272090
- Production Capacity：500PCS,Year
Description
Basic Info.
Model NO. T50P Lift height Max Lifting Height 6500mm Condition New Battery 24V/90ah Fork Size 1220*150*50 Option 1 Side Shifter Option 2 Cabin Option 3 Full Free Mast Transport Package Standard Export Packing Specification 3541*2067*2545MM Trademark Royal Origin China HS Code 84272090 Production Capacity 500PCS/YearProduct Description
| Manufacturer | RY | ||
| MODEL | T50P | ||
| General | Power Type | DIESEL | |
| engine | / | ||
| Rated Load Capacity | kg | 5000 | |
| Load Centre | mm | 600 | |
| Characteristic & Dimension | Rated Lift Height | mm | 3000 |
| Free Lift Height | mm | / | |
| Mast Tilt Angle (F/R, α°/β°) | Deg | 15º/15º | |
| Mast Lowered Height | mm | 2565 | |
| Mast Extended Height (With Backrest) | mm | 4016 | |
| Overhead Guard Height | mm | 2545 | |
| Ground Clearance (Bottom of Mast) | mm | 320 | |
| Length to Face of Fork (Without Fork) | mm | 2997 | |
| Overall Width | mm | 2067 | |
| Fork Size (L×W×T) | mm | 1220X150X50 | |
| Fork Overhang (Wheel Center to Fork Face) | mm | 732 | |
| Rear Overhang | mm | 740 | |
| Turning Radius (Outside) | mm | 3516 | |
| Min.Right Angle Stacking Aisle Width (Add Load Length and Clearance) | mm | / | |
| Performance | Travel Speed (No Load) | km/h | 22 |
| Travel Speed (Full Load) | km/h | / | |
| Lifting Speed (Full Load) | mm/s | 570/500 | |
| Lowering Speed (Full Load) | mm/s | 500 | |
| Max.Drawbar Pull (Full Load) | KN | 17 | |
| Max.Gradeability (Full Load) | % | 30/32 | |
| Service Brake (Operation/Control) | Foot/Powershift | ||
| Parking Brake (Operation/Control) | Hand/Mechanical |
