• Model NO.：BTP-3
• Lift height：200mm
• Condition：New
• Capacity：2t
• Min. Fork Heigth：85mm
• Max. Fork Height：200mm
• Fork Length：900-1220mm
• Fork Height：50mm
• Overall Length：1273-1508mm
• Overall Width：450-685mm
• Overall Height：1125mm
• Material of Wheel：PU,Nylon,Rubber
• Net Weight：50-80kg
• Transport Package：6PCS,Pallet
• Specification：customizable
• Trademark：Buytool
• Origin：Made in China
• HS Code：8427900000
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. BTP-3 Lift height 200mm Condition New Capacity 2t Min. Fork Heigth 85mm Max. Fork Height 200mm Fork Length 900-1220mm Fork Height 50mm Overall Length 1273-1508mm Overall Width 450-685mm Overall Height 1125mm Material of Wheel PU/Nylon/Rubber Net Weight 50-80kg Transport Package 6PCS/Pallet Specification customizable Trademark Buytool Origin Made in China HS Code 8427900000 Production Capacity 10000PCS/Month

Product Description

Advantages:

1.Light structure design;

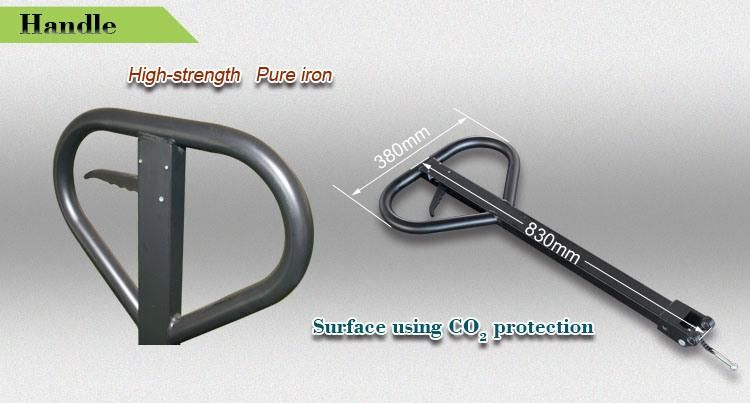

2.Three section type handle: Rise, Fall, Middle position;

3.Vehicle lightweight, flexible operation;

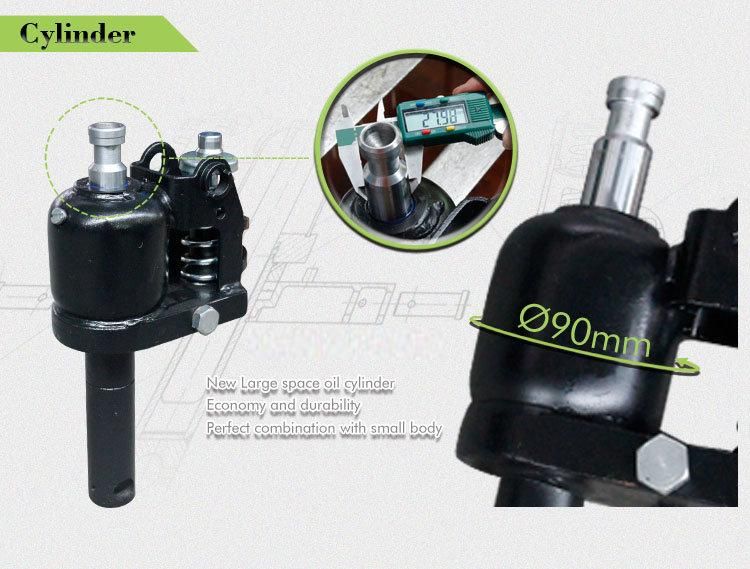

4.New large oil cylinder, long service life.

Optional:

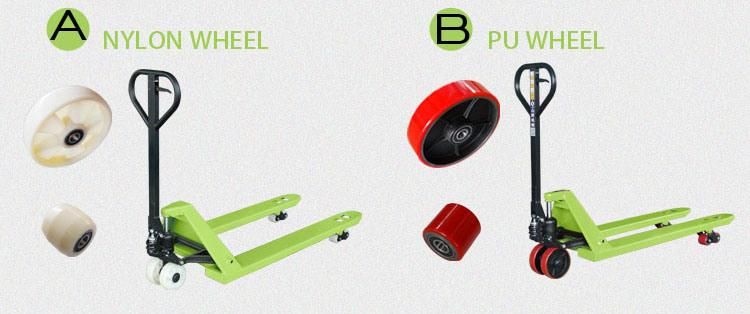

Nylon,PU,Rubber,Single Loading Wheel,Tandem Loading Wheel.

Suggestion:

Nylon casters with high hardness, go up the sound, but need some smaller thrust;

Polyurethane with low hardness, go up small noise, pushing heavy items of labor.

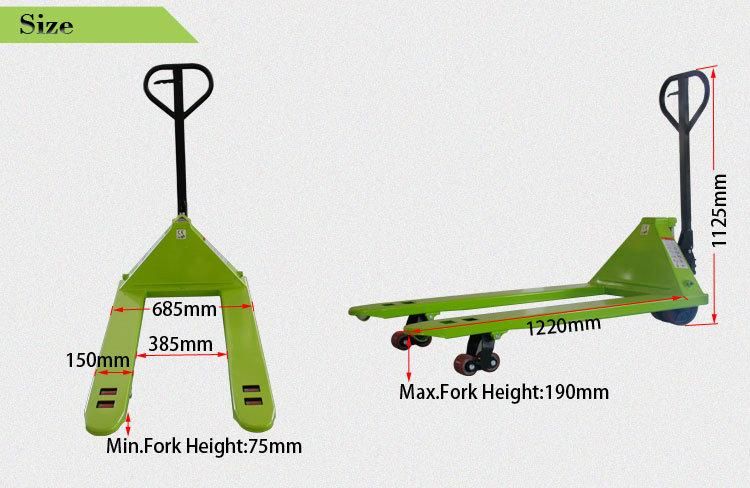

Capacity	Kg	2000
Min. fork height	mm	85
Max. fork height	mm	200
Max. lifting height	mm	≥115
Fork outside width	mm	450/520/550/685
Fork inside width	mm	150/220/250/385
Fork length	mm	900/1150/1220
Single fork width	mm	150
Fork height	mm	50
Ovrerall length	mm	1273-1508
Overall width	mm	450/520/550/685
Overall height	mm	1125
Cylinder lift rod diameter	mm	Φ28
Single loading wheel size	mm	Φ80×80
Tandem loading wheel size	mm	Φ80×60
Steering wheel size	mm	Φ180×50
Min. turning radius	mm	1080/1350/1400
Meterail of wheel		PU/Nylon/Rubber
Net weight	Kg	50-73



Specifications(1 Wooden pallet)	Weight(Kg)	Volume(m3)	40HQ(piece)	20GP(piece)
2T 520*1150 NL	324	0.78	396	198
2T 520*1150 PU	348	0.78	396	198
2T 550*1150 NL	336	0.84	378	180
2T 550*1150 PU	360	0.84	378	180

FAQ:

Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.

Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.

Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
