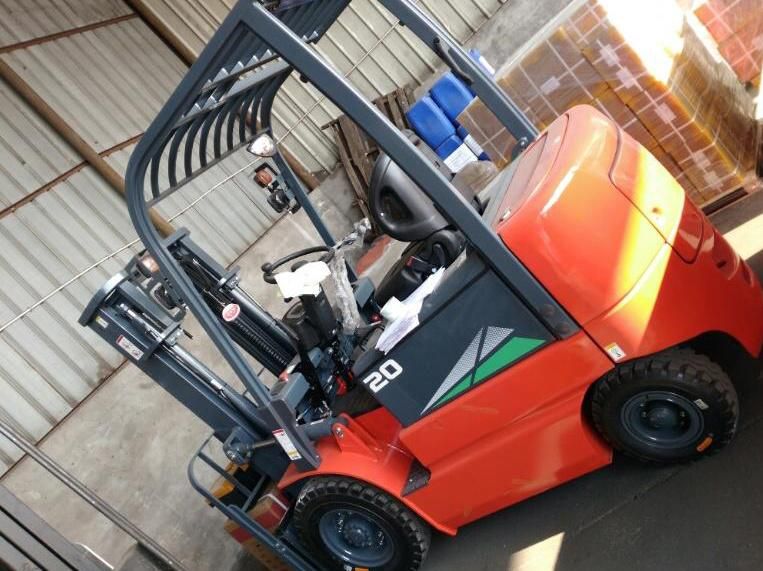

• Model NO.：CPD20
• Fuel：Diesel
• Load center：500mm
• Lift height：3000mm
• Condition：New
• Power Type：Battery
• Rated Capacity：2 Ton
• Mast Tilt Angle (Forward/Backward)：6,12deg
• Front Overhang：483mm
• Wheel-Base：1500mm
• Travel Brake：Hydraulic-Foot Pedal
• Parking Brake：Mechanical-Hand Lever
• Lift Speed(with/Without Load)：260,400mm,S
• Lower Speed (with/Without Load)：(with Load)300mm,S
• Travel Speed (with/Without Load)：11,12km,H
• Max. Gradeability (with Load)：1%
• Working Motor Rated Power：8.6kw
• Working Motor Rated Rotation：1550r,Min
• Transmission Type：Mechanical
• Battery Capacity：630ah
• Transport Package：Nude Packing
• Specification：2380*1150*2150mm
• Trademark：Electric Forklift
• Origin：Jiangsu, China
• HS Code：8427209000
• Production Capacity：1000 Unit,Units Per Month

Product OverviewProduct ParamentersSpeciality parameterModel  CPD20Power type  BatteryRated capacity kg2000Load centerdmm500Lift heighth2mm3000Mast tilt angle (forward/backward)α/βDeg6/12Front overhangL3mm483Wheel-baseL4mm1500Tread(front/rear)b4/b5mm970/950Performance parameterTravel brake  Hydraulic-Foot pedalParking brake  Mechanical-Hand leverLift speed(with/without load) mm/s260/400Lower speed (with/without load) mm/s(with load)300Travel speed (with/without load) km/h11/12Max. gradeability (with load) %1Power, transmission and othersmotorDriving motorModel  XQ-6.3-1TRated power kw6.3Rated rotation r/min1200Working motorModel  XQD-8.6-CRated power kw8.6Rated rotation r/min1550ControllerManufacturer  GEType  MOSFETBatteryVoltage V48Capacity Ah630Size(L×W×H) mm820×1065×520GearboxTransmission type  MechanicalTire type  Pneumatic tyreModelFront  7.00-12-12PRRear  18×7-8-14PR
