• Model NO.：FEP15
• Lift height：120mm
• Condition：New
• Weight：286kg
• Fork Size：1150mm*160mm*47mm
• Warranty：1 Year,2000 Working Hours
• Color：Customize
• Lifting Height (Standard)：120mm
• Turning Radius：1460mm
• Pump Stations：24V,0.8kw
• Drive Motor：24V,0.75kw
• Battery：2*12V,65ah
• Total Length(Pedal Down)：1620mm
• Transport Package：Container
• Specification：1620*685*1174mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800sets,Year

modelunitFEP13FEP15Rated loadkg13001500Fork widthmm560/685560/685Fork lengthmm11501150Minimum fork heightmm8585Maxmum fork heightmm200200Turning radiusmm14601460Load Centermm600600Pump stations 24V/0.8Kw24V/0.8KwDrive motor 24V/0.75Kw24V/0.75KwBattery 2*12V/65Ah2*12V/65AhWeight(without battery)kg200(163)220(170)Total length(pedal down)mm16201620Overrall widthmm560/685560/685Total heightmm11741174


Features
1.Safety: Auto Curve Speed-reduced function;
2.Anti-roll back prevents uncontrolled traveled speed or roll-back on ramps when loading and unloading;
3.The small ground clearance, to protect the operator;
4.High-strength frame design, suitable for tough workplaces, ensures longer service life;
5.Vertical motor ensures convenience inspection and maintenance of motor and brake, provide much better maintainability than horizontal motor.

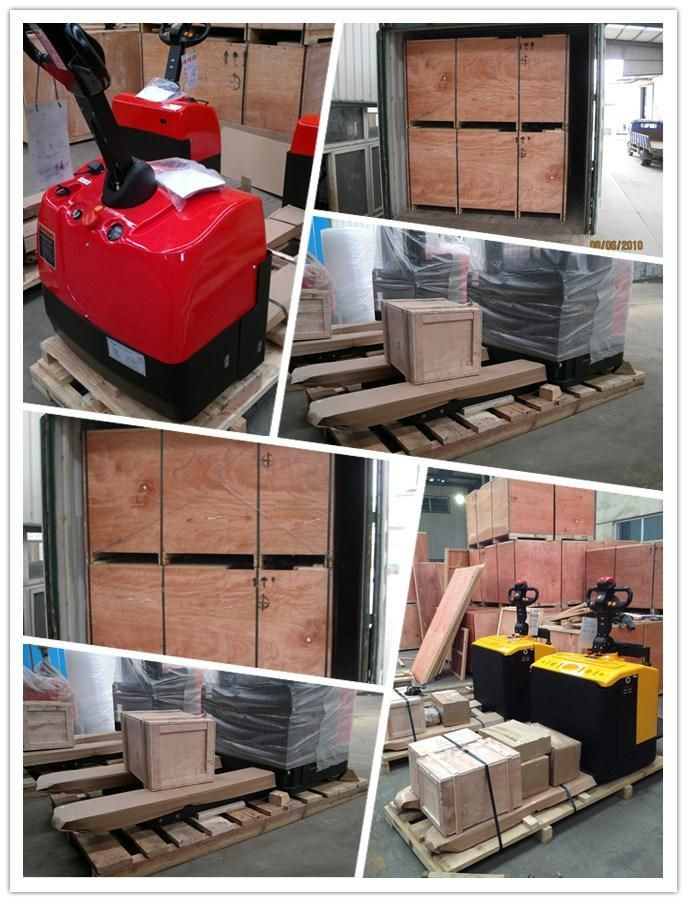

Packaging and shipping

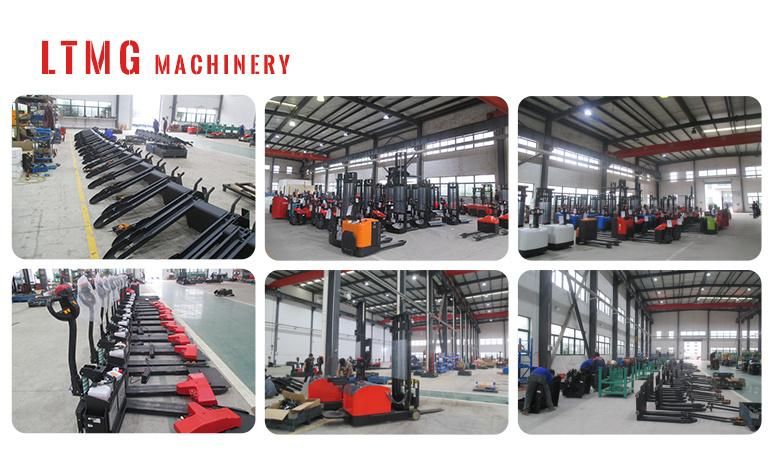

LTMG Factory





LTMG Clients






After sales service

LTMG always treat after-sale as important as sale.Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with 1 year or 2000 working hours(which occurs first)period quality warranty.
Detail clauses and policies please check our website and product certificate.
