• Model NO.：CPCD30
• Fuel：Diesel
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Power Type：Diesel
• Rated Capacity：3000kg
• Free Lift Height：145mm
• Mast Tilt Angle：6,12Tdeg
• Front Overhang：482mm
• Length to Face of Forklift：2695mm
• Overall Width：1225mm
• Mast Lowerd Height：2070mm
• Mast Extended Height：4250mm
• Overhead Guard Height：2090mm
• Turning Radius：2420mm
• Min.Right Angle Aisle Width：2885mm
• Drive Speeds：18,19.5 Km,H
• Lifting Speeds：470,520mm,S
• Lowering Speeds：600mm,S
• Transport Package：Nude Packing
• Specification：1220× 125× 45mm
• Trademark：forklift
• Origin：Jiangsu, China
• HS Code：8427209000
• Production Capacity：1000 Unit,Units Per Month

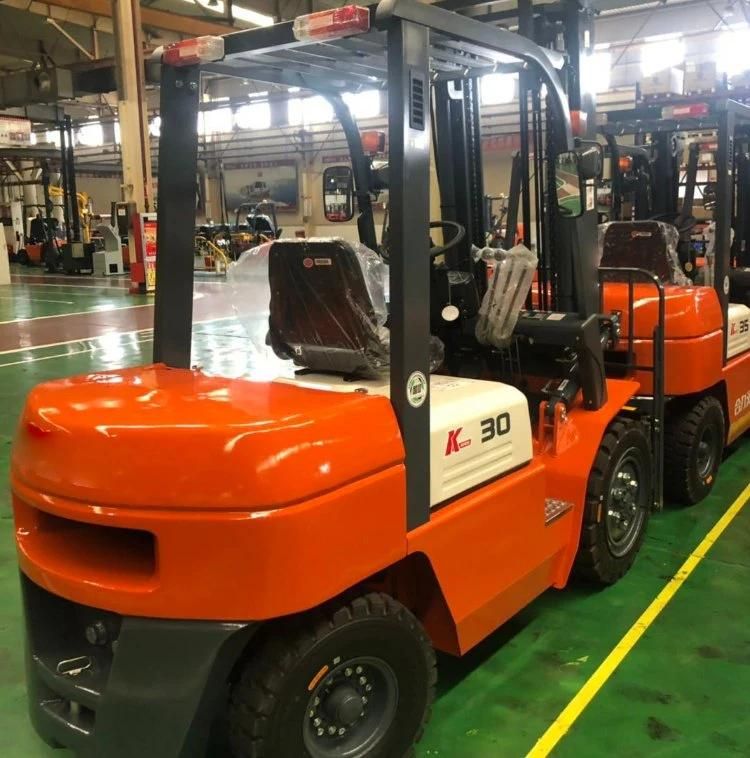

Product OverviewProduct ParamentersSPECIFICATIONModel CPCD30Power type DieselRated capacitykg3000Load centermm500Lift heightmm4500Free lift heightmm145Fork sizemm1220×125×45Mast tilt angledeg6/12Front overhangmm482

OverallLength to face of forkliftmm2695Overall widthmm1225Mast lowerd heightmm2070Mast extended heightmm4250Overhead guard heightmm2090Turning radiusmm2420Min.right angle aisle widthmm2885

SpeedsDrive speedskm/h18/19.5Lifting speedsmm/s470/520Lowering speedsmm/s≤600Max.grade ability%15Total weightkg4350
TiresFrot 28*9-12PRRear 6.5-10-10PRWheeslbasemm1700
TreadFrontmm1000Rearmm970Hold under mastmm110

EngineModel Xinchang 490BPGRated outputkw/rpm37/2650Rated torqueN.m/rpm148/2000No.of cylinder 4DisplacementL2.54Fuel tank capacityL52
Product Configuration
