• Model NO.：M630-60
• Lift height：>5000mm
• Condition：New
• Name：Telescopic Forklift
• Engine：Chinese,Janpan,USA
• Rated Power：55~100kw
• Rated Loading Capacity：3ton, 4 Ton, 5ton
• Max. Lifting Height：6m, 7m, 9m, 12m
• Attachments：Quick Hitch, Fork, Bucket, Clamp, Platform
• Driving Type：Hydrostatic 4X4
• Driving Mode：Front,4 Wheel,Crab Steering
• Min. Ground Clearance：330mm
• Usage：Farming Loader, Construction Loader, Snow Loader
• Quick Hitch：Hydraulic
• Color：Yellow, White, Green, Red, Customize
• Warranty：1 Year
• Telehandler Brands：Jcb, Deici, Ghl
• After Sales Service：Free Spare Parts, Technical Support
• Transport Package：Container
• Specification：3 ton telescopic forklift
• Trademark：STEEL CAMEL
• Origin：China
• HS Code：8427209000
• Production Capacity：600 Sets, Year

Basic Info.

Model NO. M630-60 Lift height >5000mm Condition New Name Telescopic Forklift Engine Chinese/Janpan/USA Rated Power 55~100kw Rated Loading Capacity 3ton, 4 Ton, 5ton Max. Lifting Height 6m, 7m, 9m, 12m Attachments Quick Hitch, Fork, Bucket, Clamp, Platform Driving Type Hydrostatic 4X4 Driving Mode Front/4 Wheel/Crab Steering Min. Ground Clearance 330mm Usage Farming Loader, Construction Loader, Snow Loader Quick Hitch Hydraulic Color Yellow, White, Green, Red, Customize Warranty 1 Year Telehandler Brands Jcb, Deici, Ghl After Sales Service Free Spare Parts, Technical Support Transport Package Container Specification 3 ton telescopic forklift Trademark STEEL CAMEL Origin China HS Code 8427209000 Production Capacity 600 Sets/ Year

Product Description

Smallest turning radius 4 wheel steering agriculture Loadall Machine Telehandler
 General introduction:
 >>STEEL CAMEL M630-60 telehandler adopts hydrostatic transmission, 4 wheel drive and 4 wheel steering, have fantastic manuverability in the rough farming and construction terrain.

>>Meanwhile its compact size, only 2090mm wide, 2150mm high, enable it to come through the hourse door.

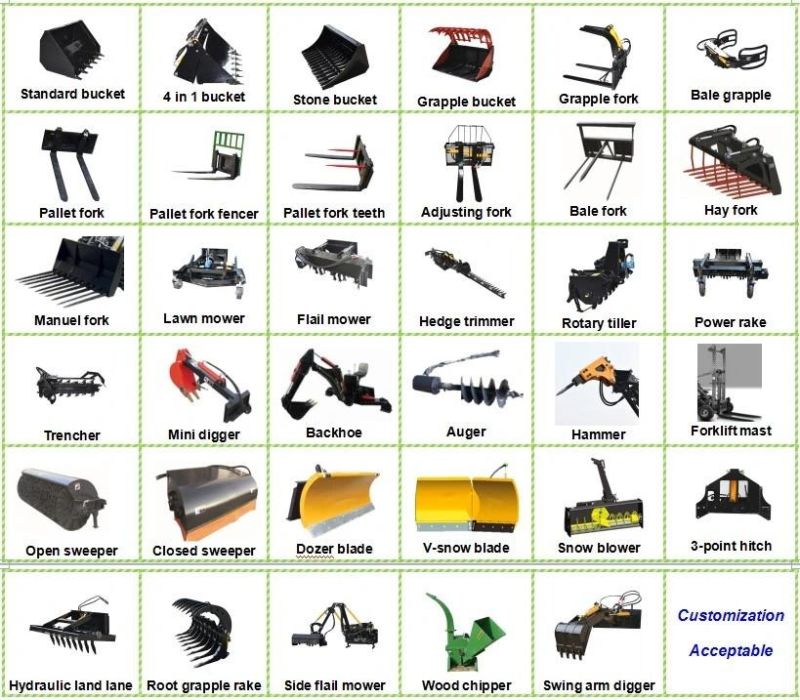

>>Hydraulic quick coupling system can hook various attachments for different work, like forklift, hay bale grapple, work platform, bucket, snow sweeper etc.

>>3ton capacity, 5.7m reach, most needed size for material handling work

>>ROPS cabin, electrical loading indicator guarantee the operating safety.

>>One hand joystick control, simple and convenient

>>Heavy duty engine and drive axle, powerful and strong

>>Wide view luxuary cabin, best operating comfort.

Technical data:

Engine	Kohler EPA Tier 4 / Yanmar / Chinese
Rated power	55kw~75kw
Dimension (LxWxH)	3970x2090x2150mm
Rated loading capacity	3000kg
Max. Lifting height	5700mm
Max. Loading capacity in levelwith boom extended	1200kg
Max. Reach in level with boom extended	3500mm
Speed	10/24km/h
Min. Turning radius	3220mm
Truning angel	35 degree
Operating weight	5560kg
Track	1780mm
Wheelbase	2400mm
Tire	12.5/80-18
System pressure	20Mpa
Hydraulic output	82L/min

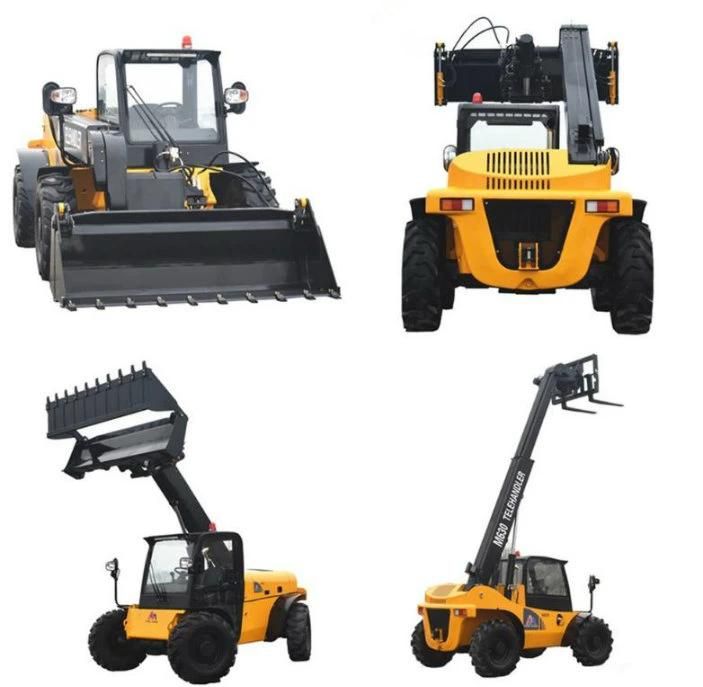

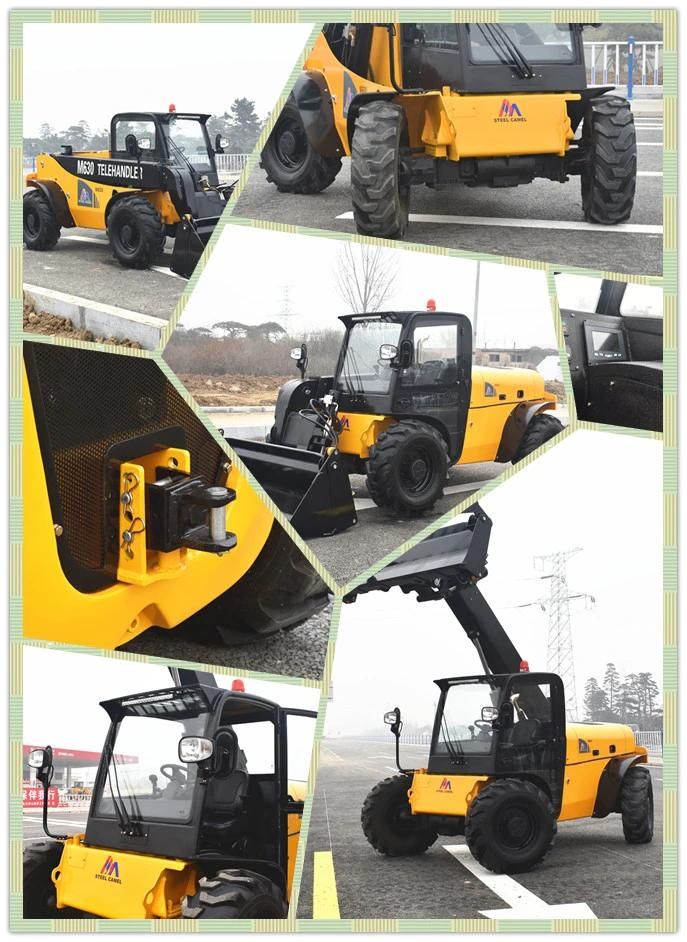

Detailed images:

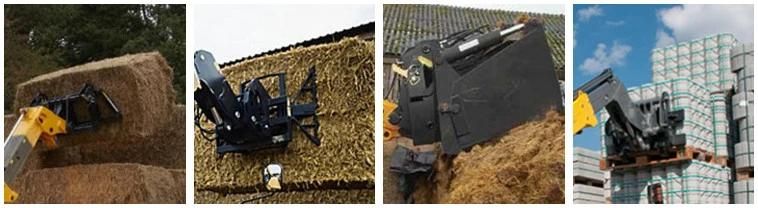

Application of STEEL CAMEL M630-60 telescopic fork material handler:

STEEL CAMEL M630-60 4x4 mini telehandler is the ideal choice for almost any task that involves material lifting, moving or placing materials. All of its good features like four-wheel drive, hydro-static transmission, hydraulic power steering, hydraulic brake, full-wheel steering, guarantee its power, stability,safety and efficiency, makes it can hand over all kinds of rough working area. It was widely used in construction material handling, container carrying and logistics, agricultural fields, ect.

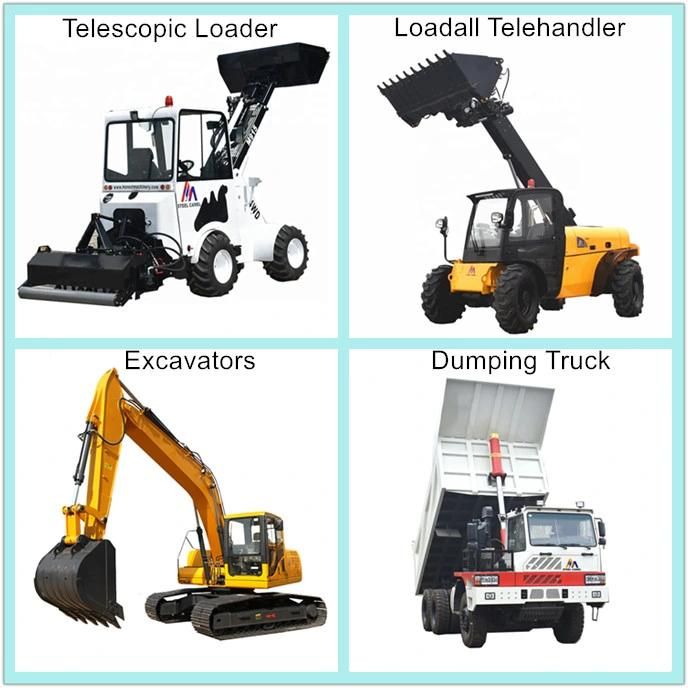

STEEL CAMEL products range:

We produce a wide range of machinery, telescopic loader, telehandler, excavators, dump trucks, and loader attachments. If any of them be of your interest, please inquiry by product name, I will send details for your information.





Inquiry Now:With more than 10 years' experience of production and exporting, I'm ready to be your reliable consultant about products and importing procedure anytime.

Send an inquiry, leave your questions, I will take care of all the rest matters. Anna Guan/Marketing director
