• Model NO.：FD100J
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1220mm*175mm*75mm
• Weight：12,450kg
• Engine：Isuzu,Chaochai
• Wheelbase：2800mm
• Warranty：1 Year or 2000 Working Hours
• Color：Decided by Buyer
• Max.Lifting Height：3,000mm
• Rated Power：112kw,2000rpm
• Product Name：Heavy Duty Forklift 10 Ton Forklift Truck for Sale
• Certification：CE,ISO
• Cab：Optional
• Transport Package：Nude Packing, Fixed in Container
• Specification：4, 255mm*2, 245mm*2, 850mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

Manufacturer  LTMGModel Power shift T/MFD100JLoad capacity kg10,000Load center mm600Power unit  DieselOperator type  Driver/seatTire typeFront/rear PneumaticWheelFront/rear 4/2Max. lifting height mm3,000Free lift mm205Fork sizeL*W*Tmm1,220*175*75Tilt rangeMast forward/backwarddeg6/12Overall length mm4,255Total width mm2,245Overall height fork raisedWith backrestmm2,350Height to head guard mm2,300Turning radius(outside) mm3,900Front face of fork to front axle mm710Min. right angle stacking aislewithout load length& clearancemm6,250SpeedMax Travelling   full/no loadkm/h24/30Lifting full/no loadmm/s390/410Lowering full/no loadmm/s470/340Max.drawbar pullfull/no loadkg5,850/3,200Gradeability at 1.6km/hfull load%22Max. Gradeabilityfull/no load%24/20Service weight kg12,450Weight  distributionFull load front/rearkg20,160/2,290No load front/rearkg5,480/6,970TiresNumberfront/rear4/2Modelfront axle9.00x20-14PRrear axle9.00x20-14PRWheelbase mm2,800TreadFront/rearmm1,600/1700At lowest point(mast)mm245Ground clearanceFramemm320BrakeService brake Brake boosterParking brake Mechanical-handBatteryVoltage/capacityV/AH2x12V-80AHEngineModel ISUZU 6BG1Chaochai 6102BGRated powerPS(kw/rpm)112/2,000110/2,500Rated torqueg-m max.(N.m)42.5/1,50036/1,650Number of cylinders 66PlacementL6.4945.785Fuel tank capacityL140TransmissionSpeed forward/backward       Power shift T/M         Manual shift T/M2-2 power shift T/M

Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

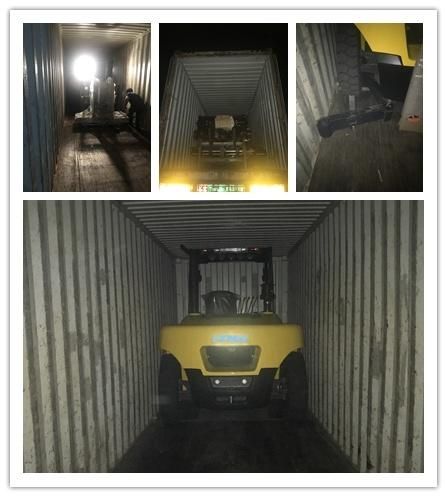

Shipping&packaging

Factory Show
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors
If you are interested in our product,you could visit our website.
Website:
Ltmg.group
http://ltmamachine.en.made-in-china.com (Group)
http://ltmamachine.en.made-in-china.com  (Forklift)
http://ltmamachine.en.made-in-china.com  (Loader)
http://ltmamachine.en.made-in-china.com (Airport GSE)

Customers Show/Application Show
Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.

After sales service

LTMG always treat after-sale service as important as the product quality.
LTMG grants our clients a twelve-month-period or 2000 working hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
