• Model NO.：FD300
• Lift height：3500mm
• Condition：New
• Engine：Weichai
• Rated Power：178kw,2200rpm
• Tire：14.00-24,28pr
• Service Weight：38000kg
• Wheel Base：4400mm
• Wheel(F/R)：4,2
• Overall Length：8950mm
• Fork Size：2440mm*320mm*110mm
• Min. Turning Radius：6800mm
• Min. Ground Clearance：350mm
• Transport Package：by Bulk
• Specification：8950mm*3060mm*3450mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

ModelUnitFD300Rated load 30,000Load center 1250Mast tilt angle (front/rear)º6/12Overall dimensionsLengthmm9,640Widthmm3,200Heightmm4,000Mast lifting heightmm3,500Fork size (L*W*H)mm2440X320X110Min. turning radiusmm6800Max. travel speed (with load)km/h26Lifting speed (with load)mm/s260Gradeability (with load)%20Weightkg38,000Front 4X14.00-24/28PRRear 2X14.00-24/28PRWheel treadFrontmm2,490Rearmm2,450Wheelbasemm4,800Min. ground clearancemm350Model WD10G240E21Rated power/rotate speedkW/r.pm178/2200Max. Torque/rotate speedN.m/r.pm1000N·m /1600 rpm
Product Features

Engine: Adopt energy-saving and environmental protection Weichai WD10G240E21 Diesel Engine, low rotating speed, big torque, low oil consumption, high stability etc. Meanwhile, equipped with water tanks with enlarged radiator, the diesel engine system has better thermal balance so that it can conduct continuous operations in the harsh work conditions.

Transmission & torque convert & driven axle: planetary torque converter and transmission R & D by ourselves, high strength heavy loading planetary hub reduction drive axle, 30 years technology, excellent stability and reliability

Explosion proof safety valve for pipeline:avoid the pipeline bursting suddenly,ensure system working safety and reliability.

Control system: pilot valve control device to make the work efficiency and reduce drivers' labor intensity.

Cooling system:adopt independent transmission oil and hydraulic oil cooling,increasing system stability

Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse, longitudinal stability of vehicles.The vehicle get through the 3D finite element analysis, superior structure, reliable quality; the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge,box.

Tyre: use well-known brands, plus level, special tires, security performance, wear-resistant and durable.

Fork: standard with hydraulic fork positioner, easy operation and reduce drivers' labor intensity.

Hydraulic system: double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance.

Other parts: with pilot system, standardized, can easy purchased or replaced with Chinese famous parts

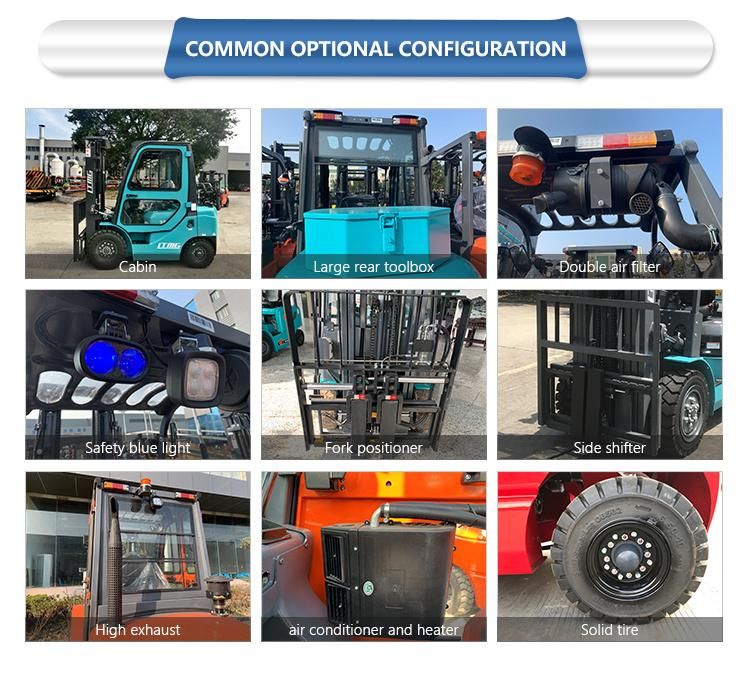

Optional Parts:
Engine: Dongfeng Cummins Engine, Styer engine and Yuchai Engine
Transmission: Chinese ZF transmission
Drive: Four-wheel drive
Mast: Heighten mast, side-shifter
Attachments: Special quarry fork, special container fork, roll prong, embrace clip etc.
Others: Visible reverse display,Central Lubricating system

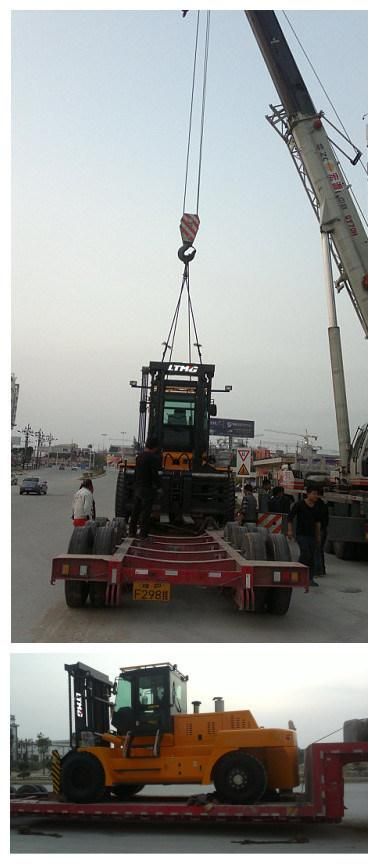

Shipping&Packaging

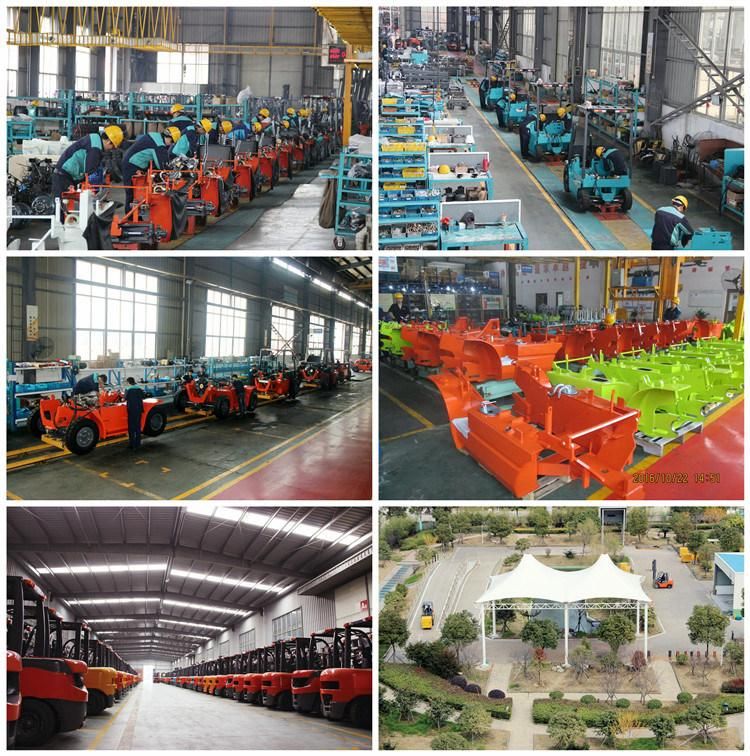

Company information

Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.

For our Customer
After sales service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

Welcome to contact us for further questions!

We have very stronger technique team to serve after sales service.

Any quality problem much welcome to contact us.



FAQ


1.What Certificate do you have?

LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.

2.Can you customize and design as the clients' requirement?

LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.

3.How long is the warranty of your products?

Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4.Can you produce the products labeled with the client's brand?

With the authorization of the brand, we can OEM for our clients.

5.What payment terms do you accept?

On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment

6.What logistics waysd we can work for shipment ?

We can ship construction machinery by various transportation tools.

1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.

2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.

3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.

7.Delivery time:

Standard configuration products are always in stock. The production period of Customizing products is 30 days.



Welcome to contact us for further questions!
