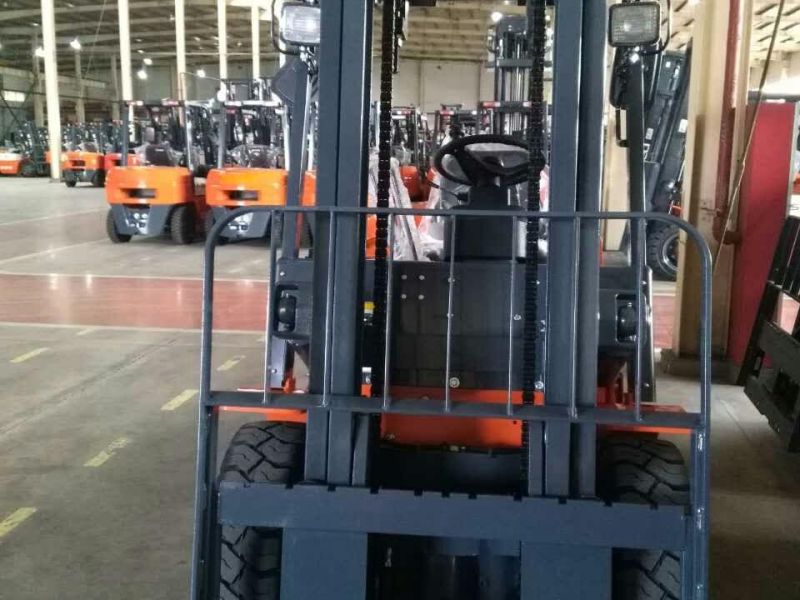

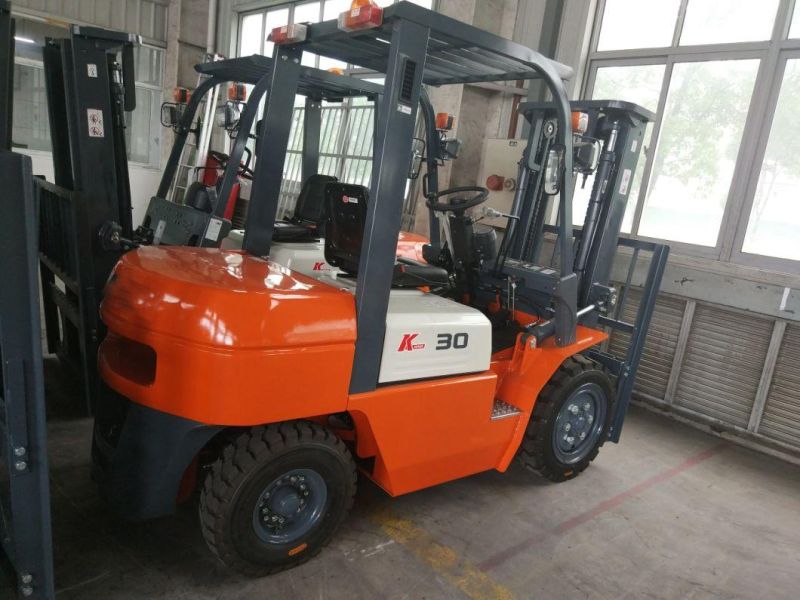

• Model NO.：CPCD30
• Fuel：Diesel
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Transport Package：Container Roro Bulk
• Specification：3ton
• Trademark：Heli
• Origin：China
• Production Capacity：1000units,Year

SPECIFICATIONModel CPCD30Power type DieselRated capacitykg3000Load centermm500Lift heightmm4500Free lift heightmm145Fork sizemm1070×125×45Mast tilt angledeg6/12Front overhangmm482

OverallLength to face of forkliftmm2695Overall widthmm1225Mast lowerd heightmm2070Mast extended heightmm4250Overhead guard heightmm2090Turning radiusmm2420Min.right angle aisle widthmm2885

SpeedsDrive speedskm/h18/19.5Lifting speedsmm/s470/520Lowering speedsmm/s≤600Max.grade ability%15Total weightkg4350
TiresFrot 28*9-12PRRear 6.5-10-10PRWheeslbasemm1700
TreadFrontmm1000Rearmm970Hold under mastmm110

EngineModel Xinchang 490BPGRated outputkw/rpm37/2650Rated torqueN.m/rpm148/2000No.of cylinder 4DisplacementL2.54Fuel tank capacityL52
1.longer time warranty: one year,
2.package:sea protecting package with film not nude wether by container or not.
3.quality is strong with good steel body frame, brand component, technology is mature.
4.suitable design that the length size of forklift is longer because of the suitable driving space
5.lower price compare the same machines
6.service is satisfied with our after-sales team and engineering team
