1 Ton 2 Ton Electric Stacker for Sale Battery Forklift Mini Electric Forklift Electric Pallet Forklift AC Forklift
Shandong Davoo Machinery Co., Ltd.- After-sales Service：Interview,Video Show
- Warranty：6 Month
- Cab Location：Not Adjustable
- Type：Stacker
- Power：AC Motor
- Load Capacity：≤1T
Base Info
- Model NO.：CPD20-30
- Fuel：Electric
- Load center：500mm
- Lift height：3000~5000mm
- Condition：New
- Model No：Cpd20-30
- Rated Loading：2000kg
- Rated Lifting：3000mm
- Battery Type：Lead -Acid battery
- Battery Capacity：24V,210ah
- Rated Power of Driving Motor：1.5kw
- Rated Power of Lifting Motor：2.2kw
- Transport Package：Polywood Box
- Specification：1~2 ton
- Trademark：JDY
- Origin：Shandong, China
- HS Code：8427109000
- Production Capacity：100pieces Per Week
Description

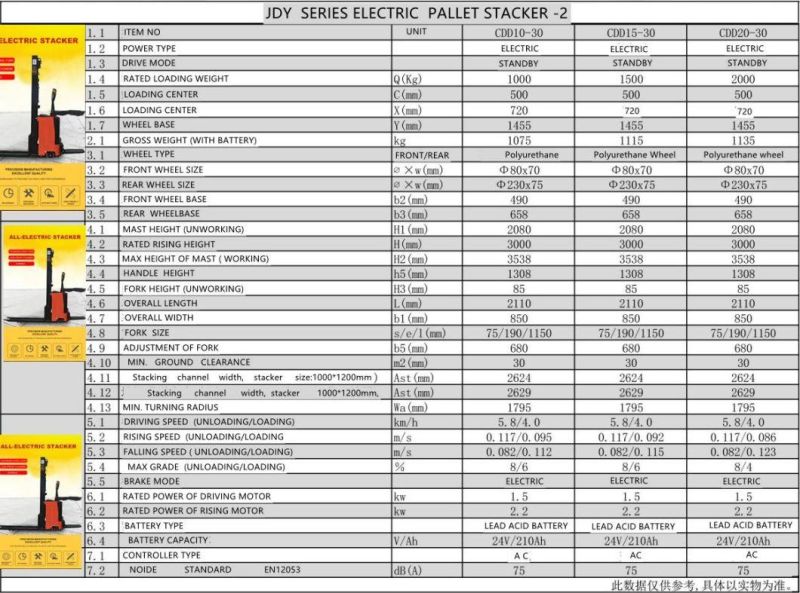

MAINPARAMETERS FOR CPD20-25MODEL NO CDD20-30 POWER ELECTRIC OPRATING MODE STANDED MODEL RATED LOADING 2000KG LOADING CENTER 500MM LOADING DISTANCE 722MM WHEEL BASE 1455MM OVERALL WEIGHT 1135KG WHEEL TYPE REZIN WHEEL FRONT WHEEL SIZE φ80*70MM REAR WHEEL SIZE φ230*75MM FRONT WHEELBASE 490MM REAR WHEELBASE 658MM MAST HEIGHT 2080MM RATED LIFTING 2500MM MAX HEIGHT OF MAST 3538MM CONTROLLER HEIGHT 1308MM MIN GROUND CLEARANCE OF FORK 85MM OVERALL LENGTH 2110MM OVERALL WIDTH 850MM FORK SIZE 75/190/1150MM FORK ADJUSTMENT 680MM MIN GROUND CLEARANCE 30MM width of aisle stacking(pallet1000x1200mm) 2624MM width of aisle stacking(pallet1000x1200mm) 2629MM Min TURNING RADIUS 1795MM MAX DRIVING SPEED(LOADING/UNLOADING) 5.8/4.0KM/H MAX LIFTING SPEED(LOADING/UNLOADING) 0.117/0.086M/S MAX FALLING SPEED(LOADING/UNLOADING) 0.082/0.123M/S MAX GRADE 8/4% DRIVING BRAKE ELECTRIC BRAKE RATED POWER OF DRIVING MOTOR 1.5KW RATED POWER OF RASING MOTOR 2.2KW BATTERY TYPE LEAD-ACID BATTERY BATTERY CAPACITY 24V/210AH CONTROLLER MODE AC NOISE (EN2053) 75A
