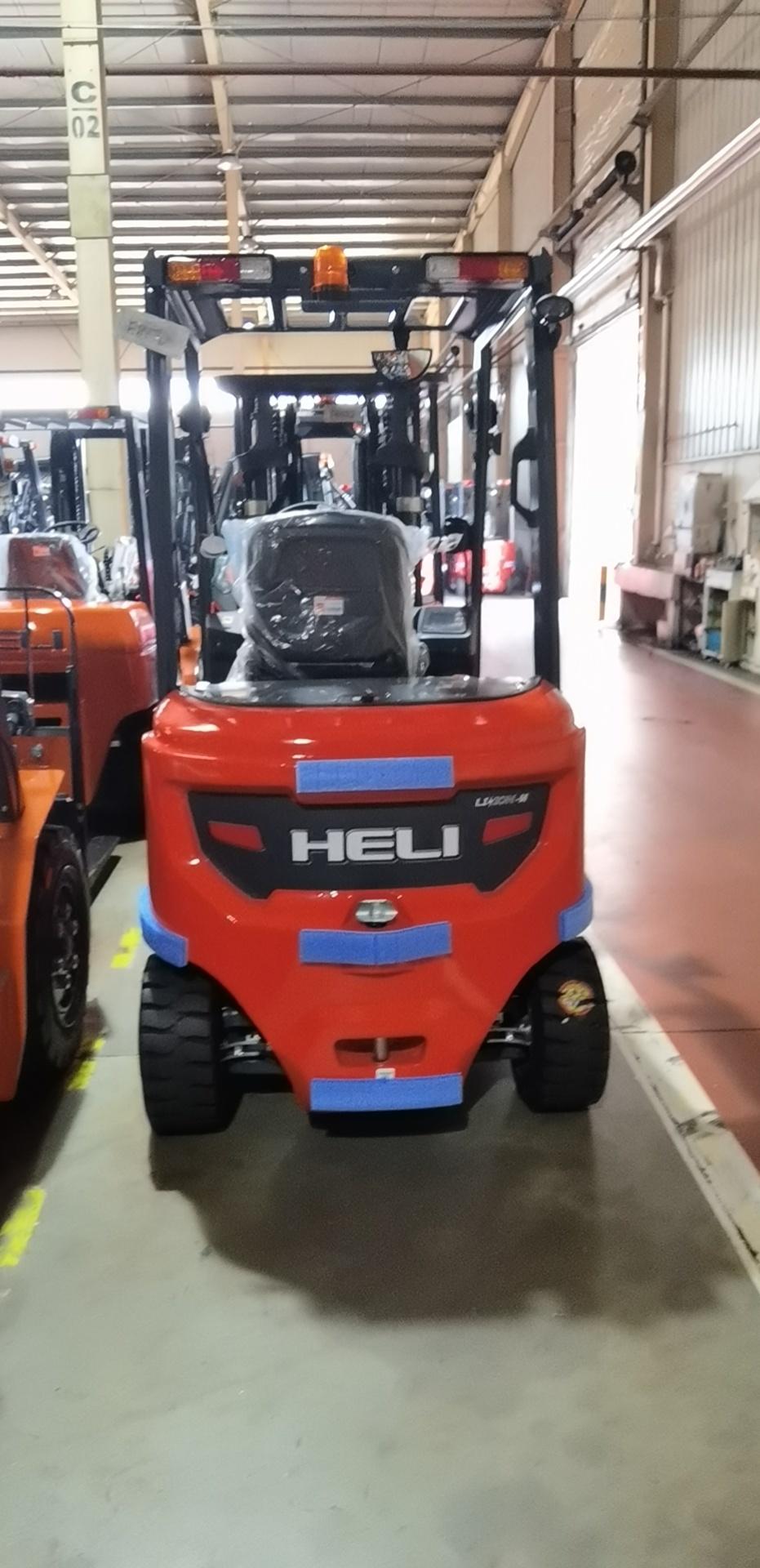

• Model NO.：CPD30
• Fuel：Electric
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Rated Load Capacity：3000kg
• Load Centers：500mm
• Standard Mast Lifting Height：3000mm
• Free Hoisting Height：145mm
• Overall Height：2215mm
• Full Length：2485mm

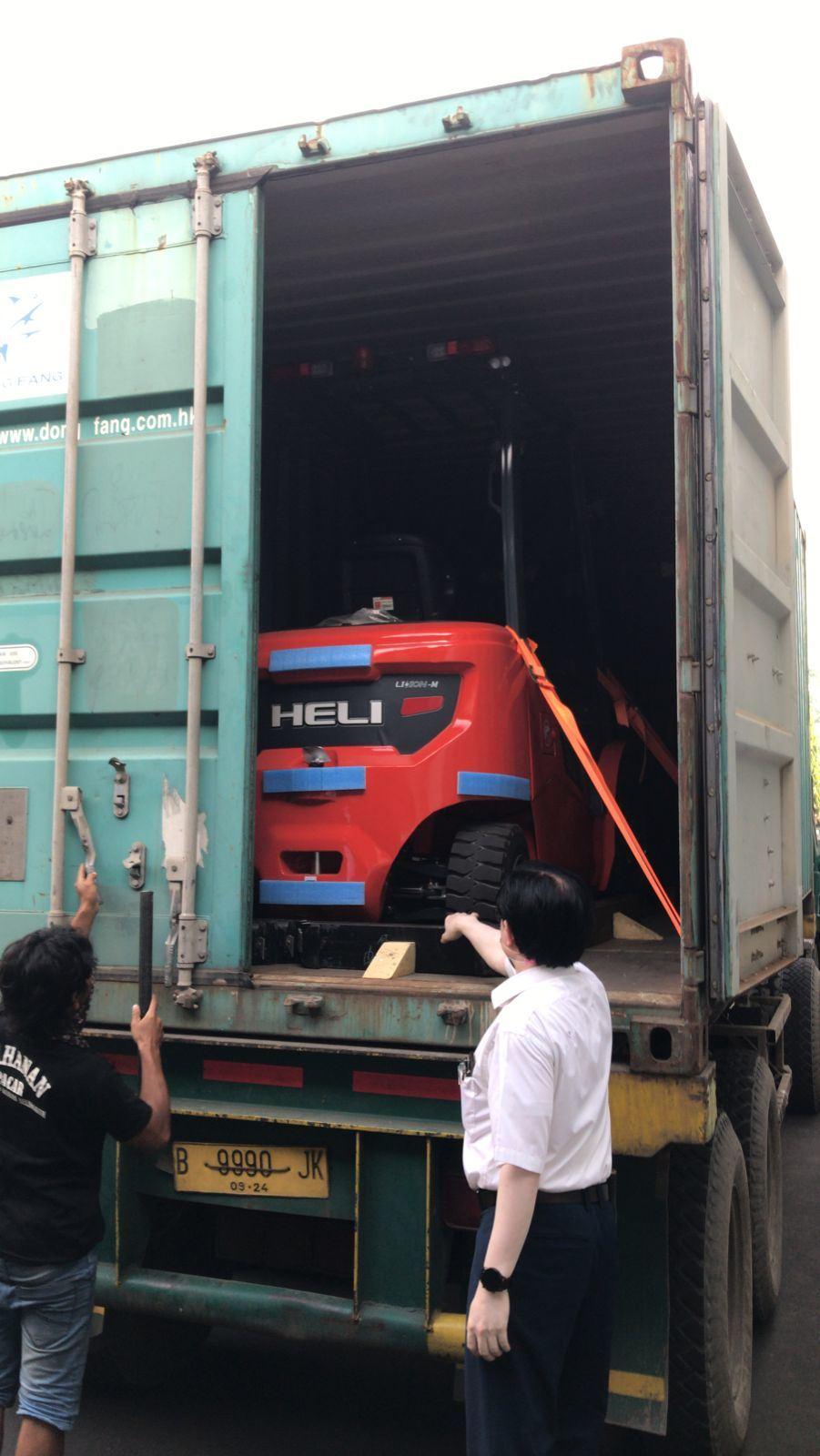

• Transport Package：Nude
• Specification：Nude
• Trademark：heli
• Origin：Anhui
• Production Capacity：100unit,Month

Model CPD30CPD35Configuration No. G1/G2G1/G2Load capacitykg30003500Load centermm500500Standard mast lifting heightmm30003000Free hoisting heightmm145150Overall height (upper frame protection)mm22152215Full length (without pallet fork)mm24852550Full width (before/after)mm12251225Wheelbasemm16801680The minimum ground clearance (the door)mm135135The minimum turning radius (outer)mm22102270Least square channel width
(1200 * 1200 mm tray, 20 mm gap)mm40954160Pallet fork length * width * thicknessmm45*125*107050*125*1070The door frame Angle(before/after)deg.6/106/10Tire type(before/after) Pneumatic tyresSolid tireMaximum speed (full/empty)km/h15.0/15.514.5/15.0Maximum gradeability (full/empty)%15/2212/17Hoisting speed (full/empty)mm/s280/450250/440Battery capacityV/Ah80/48080/480Control mode (driving, pump) Ac/dc controlAc/dc controlThe total battery (reservation)kg48105500*Ac lifting speed (full/empty)mm/s340/460325/450*Control mode (driving, pump) Exchange controlExchange contro
