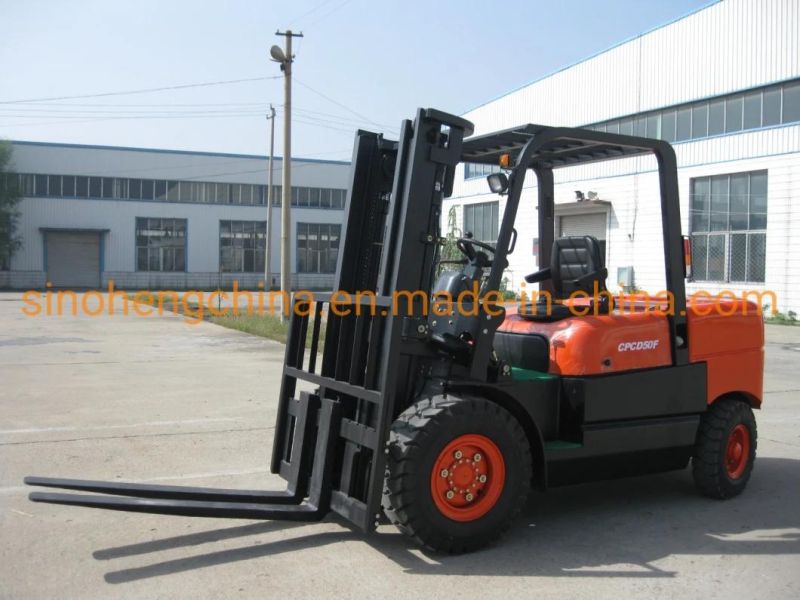

5 Ton Sh50 Diesel Forklift Truck Seller

Jinan Sinoheng Import and Export Co., Ltd.
  • Load Capacity：5T - 10T
  • Load Capacity (T)：5t
  • Power Type：Diesel
  • Free Lift：210mm
  • Backrest Height：1365mm
  • Fork Length：1220mm

Base Info

  • Model NO.：SH50
  • Transport Package：Container, FCL,LCL
  • Specification：CE
  • Trademark：sinoheng
  • Origin：Shandong, China
  • Production Capacity：300PCS,Month

Description

Product Name5 Ton Counterbalance Diesel Forklift Truck(F series )ModelSH50Load capacity (kg)5000Load center (mm)500Power typeDieselMax. lifting speeds ( with load )  mm/s350Max. driving speeds ( with/without load )  km/h22/26Max. towing ( with/without load )  kn54Gradeability (with/without load )  %20/27Lifting height (mm)3000Free lift (mm)210Tilting angles ( forward-backward )  (  .)6/12Min. turning radius (mm)3250Min. right angle aisel width ( mm )3090Min. under-clearance (mm)230
DimensionOverall length (including fork)mm4660Overall width ( mm )1995Overall height (mast lowered )mm2500Overall height (mast extend )mm4420Overall height to overhead guard (mm)2420Fork overhang (mm)590Wheel base (mm)2250TreadFront tread (mm)1470Rear tread (mm)1700TyreFront tyre8,25-15-14Rear tyre8,25-15-14Total weight (kg)7980Fork width (mm)150Fork thickness (mm)55Backrest height (mm)1365Fork length (mm)1220

EngineEngine modelChaochai6102-BG, QC4112GRate power (KW)80,9/70Rotate speed at Rate power (rpm)2500/2300Max. torque  (nm)353/370Rotate speed at max torque (rpm)1650/1600-1800Battery2-12 V/80AHType of power shiftTor-non5 Ton Sh50 Diesel Forklift Truck Seller5 Ton Sh50 Diesel Forklift Truck Seller5 Ton Sh50 Diesel Forklift Truck Seller
