• Model NO.：SH30FR
• Lift height：>5000mm
• Condition：New
• Load Capacity(T)：3 Ton
• Power Type：Diesel
• Free Lift：80mm
• Transport Package：Container, FCL,LCL
• Specification：CE
• Trademark：sinoheng
• Origin：Shandong, China
• Production Capacity：300PCS,Month

Product NameDiesel ForkliftModelSH30FRLoad capacity (kg)3000Load center (mm)500Power typeDieselMax. lifting speeds ( with load )  mm/s400Max. driving speeds ( with/without load )  km/h18/20Max. towing ( with/without load )  kn15,5/10,5Gradeability (with/without load )  %15/20Lifting height (mm)3000Free lift (mm)80Tilting angles ( forward-backward )  (  .)6/12Min. turning radius (mm)2500Min. right angle aisel width ( mm )2110Min. under-clearance (mm)135
DimensionOverall length (including fork)mm3800Overall width ( mm )1230Overall height (mast lowered )mm2110Overall height (mast extend )mm4270Overall height to overhead guard (mm)2110Fork overhang (mm)465Wheel base (mm)1700TreadFront tread (mm)1000Rear tread (mm)970TyreFront tyre28 x 9-15Rear tyre6,50-10Total weight (kg)4320Fork width (mm)125Fork thickness (mm)45Backrest height (mm)1225Fork length (mm)                   1220

EngineEngine model490Rate power (KW)39Rotate speed at Rate power (rpm)2650Max. torque  (nm)157Rotate speed at max torque (rpm)1980Type of power shiftTor-nonForklift Features :
1. Forklifts by CE certificate and we have profesional technical person to design and manufacture the forklift .
2. The center of gravity is reduced small in turning raduius, with good stability.
3. Seat with safety belt and steady bar
4. Safe over-guard
5. Powerful engine
6. Dual air filter
7. Popular counterweight
8. Engine for optional: ISUZU engine, YANMAR engine, DETUZ-DACHAI engine and so on.

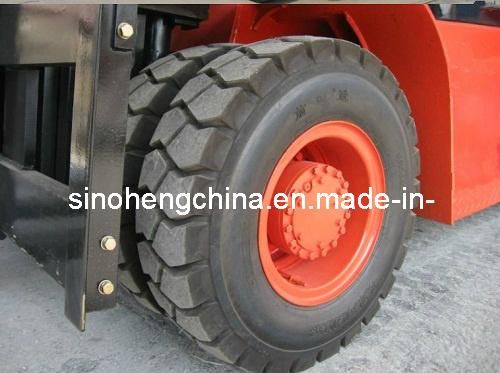

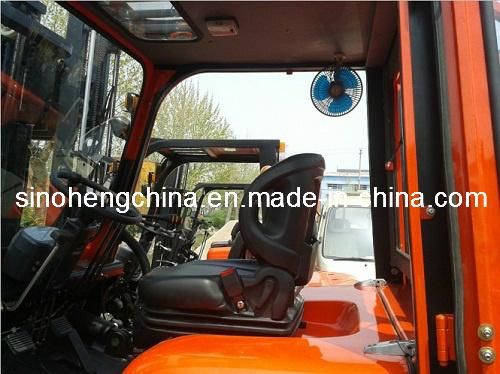

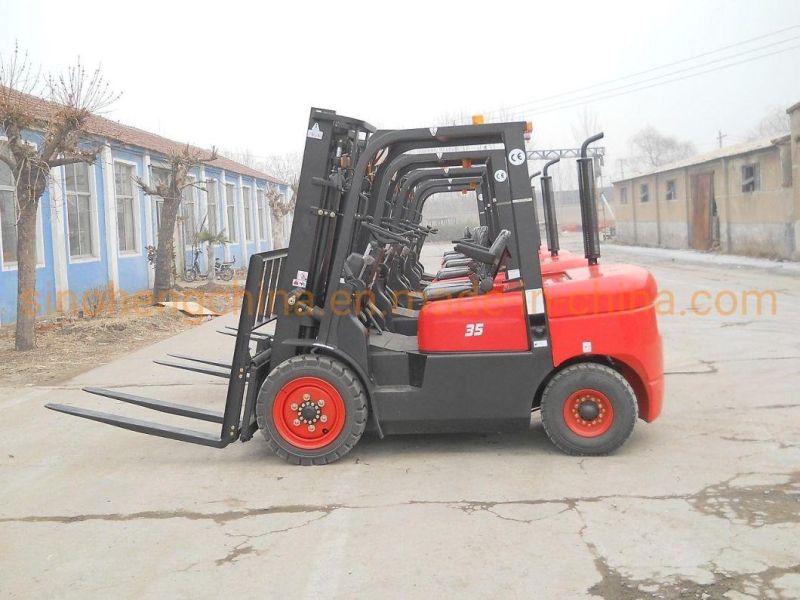

Forklift Truck Details :


Looking forward to your any time inquiry, let you enjoy our excellent service and best price !Contact informations :
