• Model NO.：FG25
• Lift height：3000mm
• Condition：New
• Turning Radius(Outside)：2240mm
• Weight：3580kg
• Engine Model：Nissan K21
• Number of Cylinders：4
• Warranty：1 Year or 2000 Hours
• Color：Customize
• Fuel Tank：70L
• Operator Type：Driver,Seat
• Tire Type：Pneumatic
• Fork Size：1070mm*122mm*40mm
• Transport Package：Container
• Specification：2530mm*1150mm*2120mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：1000sets,Month

Manufacturer   LTMGModel  Power shift T/M         FG25TManual shift T/M    FG25CLoad capacity kg2500Load center mm500Power unit   Gasoline/LPGOperator type  Driver/seat Tire typeFront/rear PneumaticWheel Front/rear 2/2Max. lifting height  mm3000Free lift  mm160Fork sizeL*W*Tmm1070*122*40Tilt rangeMast forward/backward             deg6/12Overall length(without fork)  mm2530Total width  mm1150Mast height (fork lowering) mm1995Overall height fork raised With backrest                             mm4030Height to head guard  mm2120Turning radius(outside)  mm2240Front face of fork to front axle mm450Min. right angle stacking aisle  without load length&clearancemm2690SpeedMax Travelling        full/no loadkm/h17/19Lifting                full/no loadmm/s550/580Lowering             full/no loadmm/s450/550Max.drawbar pull Power shift T/M      full/no loadkg1650/830Manual shift T/M     full/no loadkg1700/830Gradeability at 1.6km/hPower shift T/M      full/no load 22/18Manual shift T/M     full/no load %22/18Truck weight  kg3580Weight  distributionFull  load              front/rear        kg5370/710No  load               front/rear      kg1390/2190Tires Numberfront/rear2/2Modelfront axle 7.00-12-12PRrear axle6.00-9-10PRWheelbase mm1600TreadFront/rearmm970/970Ground clearanceAt lowest point(mast)                 mm110Framemm115Brake Service  brake Hydraulic-foot pedalParking brake Mechanical-hand leverBatteryVoltage/capacityV/AH12/60EngineModel Nissan K25Rated powerPS(kw/rpm)47/2250(34.6/2250)Rated torquekg-m    max.(N.m)15.7/1600(153/1600)Number of cylinders 4PlacementL2.065Fuel tank capacityL70TransmissionSpeed forward/backward          Power shift T/M Manual shift T/M    1-1 power shift T/M

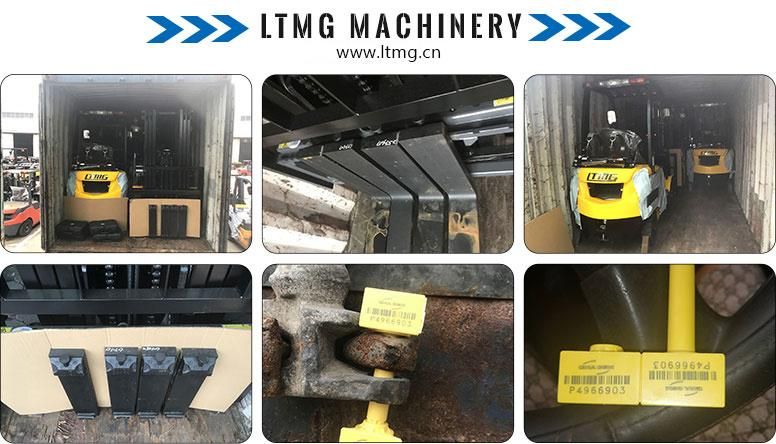

2-2 manual shift T/MPacking & Shipping


Product Features
1.The standard LED lamps and warning lights make it safer,more energy efficient and create better working condition.
2.Equipped with USA IMPCO gas system which is more reliable.
3.Thicker reinforcing plate ensures the safety and efficiency.
4.New designed overhead guard protective device prevent the sudden accidents.
5.Equipped with the powerful and efficient EFI,EPA approved engine Nissan K25 with excellent environmental performance;GM engines and Chinese powerful and reliable engines are optional.

Factory Show
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors
If you are interested in our product,you could visit our website.
Website:
Ltmg.group
http://ltmamachine.en.made-in-china.com (Group)
http://ltmamachine.en.made-in-china.com  (Forklift)
http://ltmamachine.en.made-in-china.com  (Loader)
http://ltmamachine.en.made-in-china.com (Airport GSE)

Customers Show/Application Show
Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.


After sales service

LTMG always treat after-sale service as important as sale.
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
