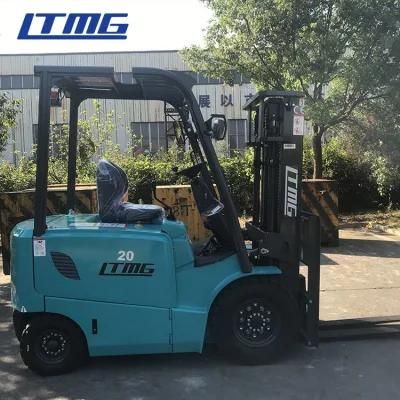

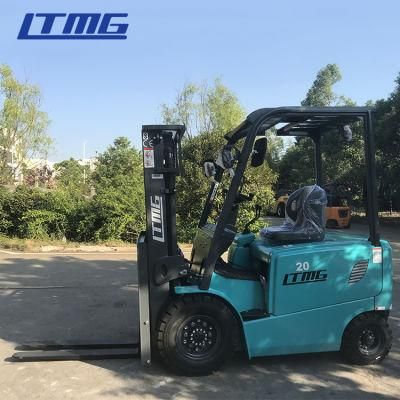

• Model NO.：ERB20
• Lift height：3000~5000mm
• Condition：New
• Overall Width：900mm
• Weight：1130kg
• Fork Size：1150*160*56mm
• Controller：Curtis
• Min. Ground Clearance：29mm
• Battery Voltage：24V
• Base Distance：1415mm
• Brake Type：Electromagnetic
• Warranty：1 Year or 2000 Working Hours
• Motor：AC Motor
• Power of Driving Motor：1.2kw
• Battery Capacity/Voltage：165,24
• Transport Package：Container
• Specification：1875x720x1980mm
• Trademark：LTMG
• Origin：China
• HS Code：8428109000
• Production Capacity：1000sets,Year

Model ERB10/ERB12ERB15ERB20Power type Battery poweredBattery poweredBattery poweredDriving style PedestrianPedestrianPedestrianLoad capacity                  kg1000/120015002000Load center                      mm600600600Overall length                 mm181519501980Overall width                   mm800875900Min. overall height         mm2110180020602180233521101800206021802335211018002060Fork dimension  L×b×mmm1150×160×561150×160×561150×160×56Outside width of forks     mm540560/680560/680Ground clearance             mm293029Base distance                 mm125013801415Wheel material PUPUPUDriving wheel sizemmφ250×80φ230×80φ250×80Front wheel sizemmφ78×70φ78×70φ78×70Balance wheel sizemmφ125×75/φ100×40φ125×75φ125×75Min. steering radius               mm146016601550Min. width of aisle mm≥2150≥2500≥2500Max. lift height                      mm1600250030003300350016002500300033003500160025003000Max. overall height                mm2110307234803780398021103072348037803980217230723572Min. fork height                    mm909090Travel speed(laden/unladen)Km/h3.5/4.04.5/5.54.5/5.0Lift speed(laden/unladen)mm/s90/13093/14390/130Lowering speed(laden/unladen)mm/s95/120120/9495/120Brake type ElectromagneticElectromagneticElectromagneticPower of driving motorKw0.71.51.2Power of lift motorKw2.22.22.0Battery capacity/voltageAh/V95/246.875165/24Weight of batterykg50160160Net weight(without battery)kg545585605635645750910940950960780/940/970

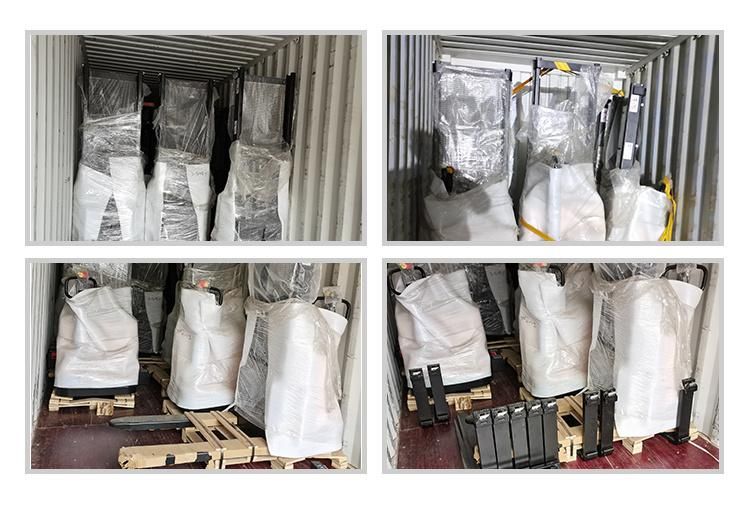

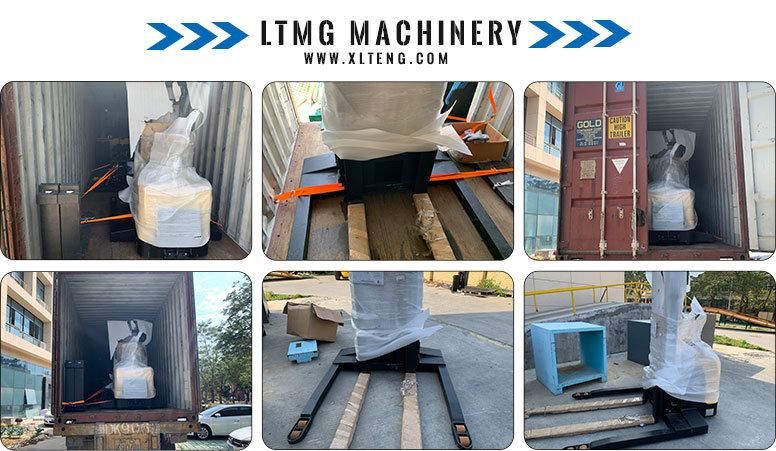

Packaging&Shipping

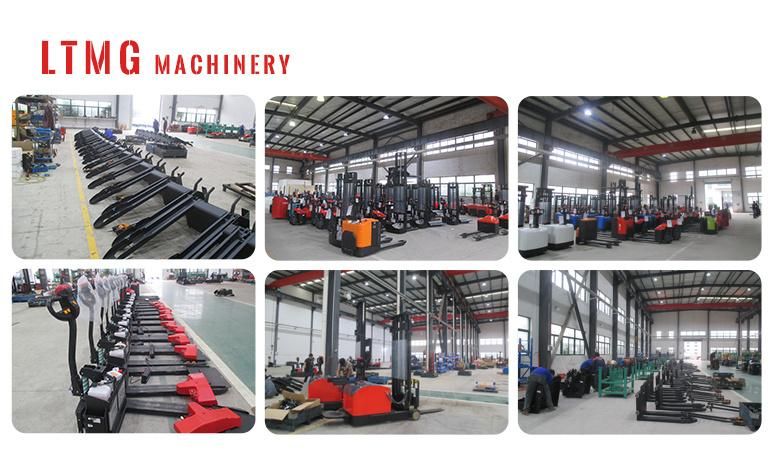

Factory Show



Exhibition



After sales service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
